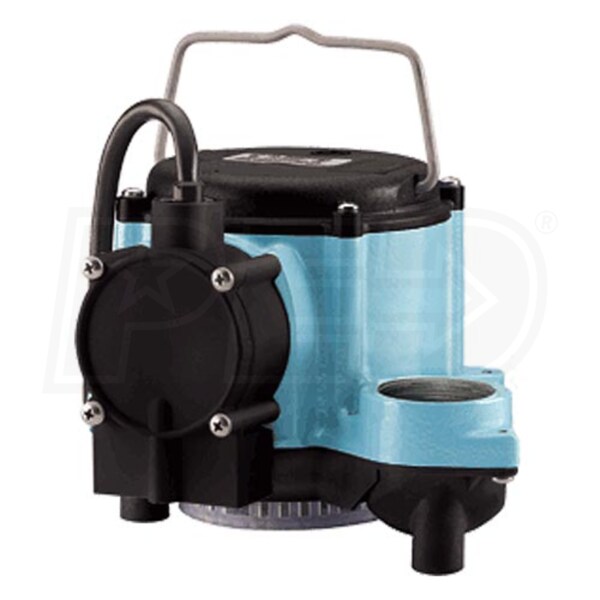

Little Giant 6-CIA-ML - 1/3 HP Cast Iron Submersible Sump Pump w/ Diaphragm Switch (8' Cord)
Model: 506160
3.7 out of 53.7 out of 53.7 out of 53.7 out of 53.7 out of 5
Number of Reviews(3)
Write a Review
Ask a Question
$136.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
2760
Gallons
Switch Type
Diaphragm Switch
Style
Primary
GPH
2760 Gallons
Switch Type
Diaphragm
Features
Features
  • Contractor-Grade Submersible Sump Pump
  • Continuous duty rated for basement & crawlspace applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Reducess clogging while providing consistent pumping
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper & Lower Sintered-Sleeve Bearing
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 8' Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Engineered Resin
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
1-4
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
2 Years
Product Length
9.5 Inches
Product Depth
8.5 Inches
Product Width
6 Inches
UPC
010121061606
Style
Primary Sumps Pumps
GPH
2760
Gallons
Switch Type
Diaphragm Switch
Style
Primary
GPH
2760 Gallons
Switch Type
Diaphragm
Features
Features
  • Contractor-Grade Submersible Sump Pump
  • Continuous duty rated for basement & crawlspace applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Reducess clogging while providing consistent pumping
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper & Lower Sintered-Sleeve Bearing
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 8' Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Engineered Resin
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
1-4
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
2 Years
Product Length
9.5 Inches
Product Depth
8.5 Inches
Product Width
6 Inches
UPC
010121061606
Product Specs
+−
Specifications
Base
Base Material
Engineered Resin
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
1-4
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
18 Pounds
Consumer Warranty
2 Years
Product Length
9.5 Inches
Product Depth
8.5 Inches
Product Width
6 Inches
UPC
010121061606
