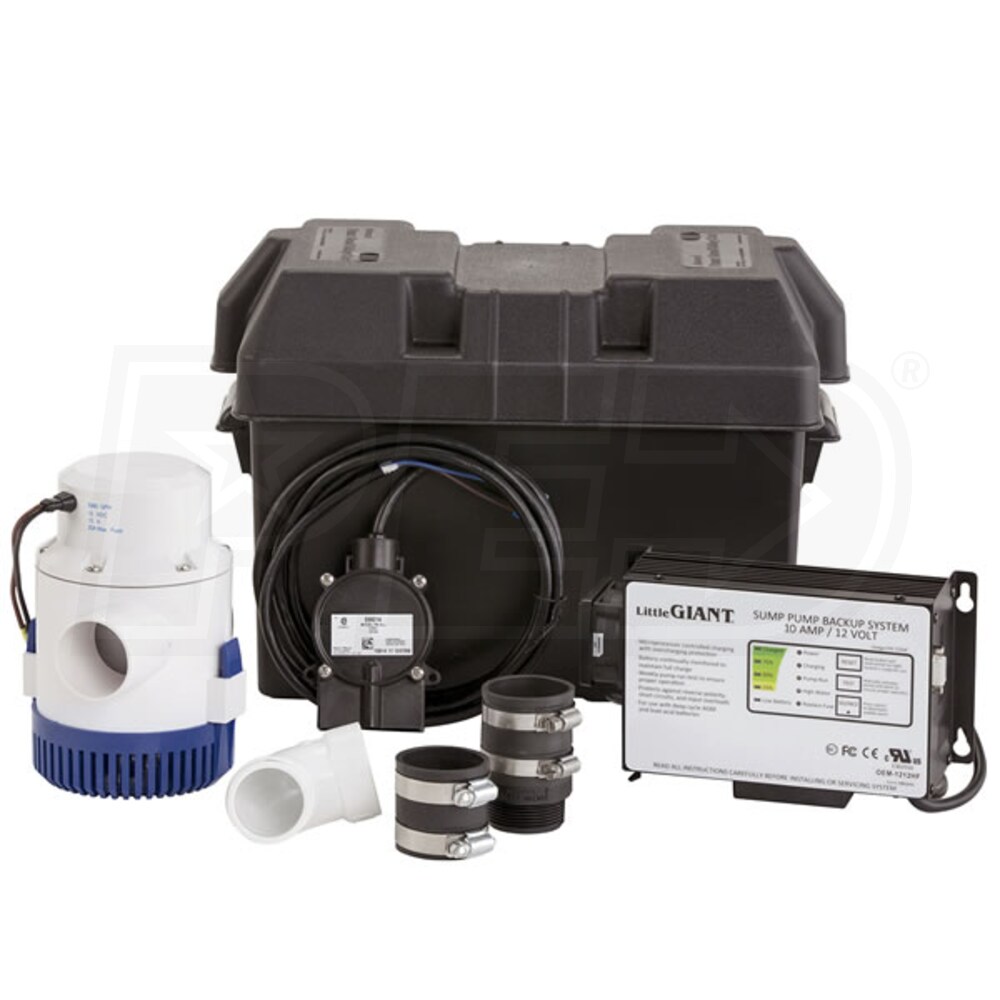

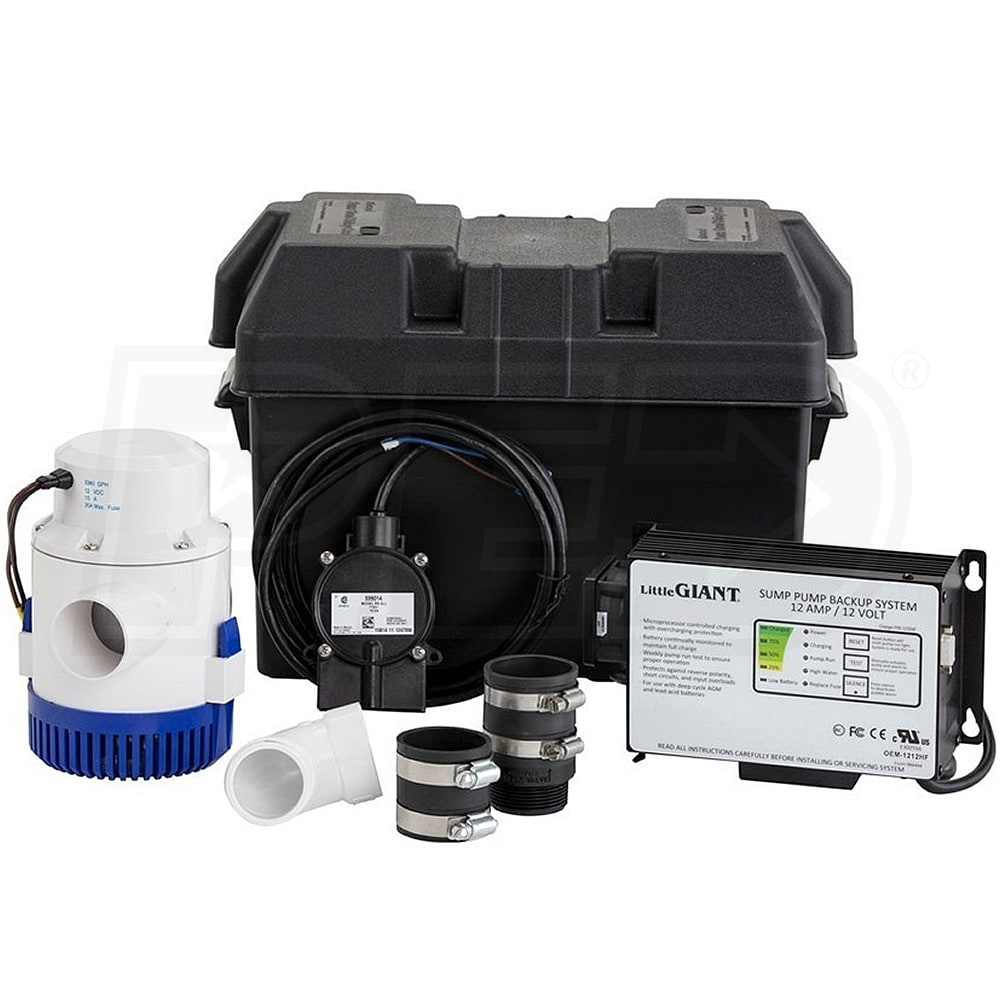

Little Giant SPBS-10HF - Battery Backup Sump Pump System (1200 GPH @ 10')
Model: 506406
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2520
Gallons
Switch Type

Style
Back-up
GPH
2520 Gallons
Switch Type
Diaphragm
Features
Features
- Protect Your Home + Added Peace Of Mind
- Secondary sump pump, flood protection, and emergency dewatering
- Automatically starts when your existing sump pump fails
- Senses power outages and begins using battery power
- Battery Backup Sump Pump
- Empties the sump pit after a malfunction, outage or excess water
- 2520 GPH at 0’ and 1200 GPH @ 10'
- 20’ shut off/maximum lift
- 12-Volt DC Backup Pump
- Durable non-corrosive pump housing with stainless steel fasteners
- Easily removed bottom suction screen for serviceability and maintenance
- Capable of handling 1/8 inch solids in sump applications
- 10-Amp Controller/Charger/Alarm Unit
- Test button to manually run backup pump to insure proper operation
- Battery continually monitored to maintain full charge
- 6' power cord on pump and charging unit
- BATTERY SOLD SEPARATELY
- Use only with 12 VDC deep cycle battery (Size 27)
- Rated 85-140Ah, lead-acid or AGM
- Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
Specifications
Motor
Voltage
12 Volt DC
Running Amps
14
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Gallons Per Minute
42 Gallons
Quick Clean Out
Yes
Handles Solids
No
Maximum PSI
8.7
Float Type
Diaphragm
GPH @ 0 feet
2520
GPH @ 5 feet
1740
GPH @ 10 feet
1200
GPH @ 20 feet
0
Built-in check Valve
Yes
Float On
13.5
Float Off
9
Battery Recharger
10 Amps
Max Head
20 Feet
Overview
Weight
11.5 Pounds
Consumer Warranty
2 Years
UPC
010121148024
Style

GPH
2520
Gallons
Switch Type

Style
Back-up
GPH
2520 Gallons
Switch Type
Diaphragm
Features
Features
- Protect Your Home + Added Peace Of Mind
- Secondary sump pump, flood protection, and emergency dewatering
- Automatically starts when your existing sump pump fails
- Senses power outages and begins using battery power
- Battery Backup Sump Pump
- Empties the sump pit after a malfunction, outage or excess water
- 2520 GPH at 0’ and 1200 GPH @ 10'
- 20’ shut off/maximum lift
- 12-Volt DC Backup Pump
- Durable non-corrosive pump housing with stainless steel fasteners
- Easily removed bottom suction screen for serviceability and maintenance
- Capable of handling 1/8 inch solids in sump applications
- 10-Amp Controller/Charger/Alarm Unit
- Test button to manually run backup pump to insure proper operation
- Battery continually monitored to maintain full charge
- 6' power cord on pump and charging unit
- BATTERY SOLD SEPARATELY
- Use only with 12 VDC deep cycle battery (Size 27)
- Rated 85-140Ah, lead-acid or AGM
- Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
Specifications
Motor
Voltage
12 Volt DC
Running Amps
14
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Gallons Per Minute
42 Gallons
Quick Clean Out
Yes
Handles Solids
No
Maximum PSI
8.7
Float Type
Diaphragm
GPH @ 0 feet
2520
GPH @ 5 feet
1740
GPH @ 10 feet
1200
GPH @ 20 feet
0
Built-in check Valve
Yes
Float On
13.5
Float Off
9
Battery Recharger
10 Amps
Max Head
20 Feet
Overview
Weight
11.5 Pounds
Consumer Warranty
2 Years
UPC
010121148024
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Running Amps
14
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Gallons Per Minute
42 Gallons
Quick Clean Out
Yes
Handles Solids
No
Maximum PSI
8.7
Float Type
Diaphragm
GPH @ 0 feet
2520
GPH @ 5 feet
1740
GPH @ 10 feet
1200
GPH @ 20 feet
0
Built-in check Valve
Yes
Float On
13.5
Float Off
9
Battery Recharger
10 Amps
Max Head
20 Feet
Overview
Weight
11.5 Pounds
Consumer Warranty
2 Years
UPC
010121148024
