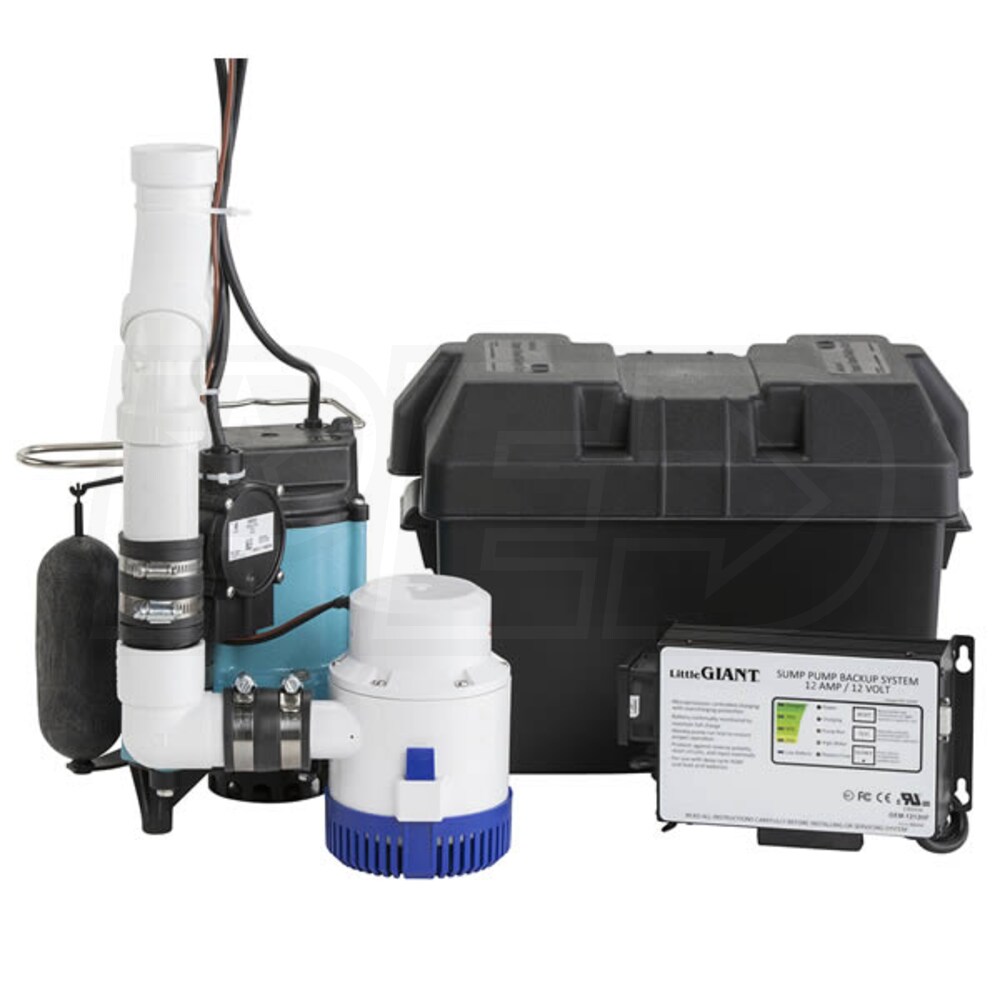

Little Giant SPBS-12HF-10 - 1/2 HP Combination Primary Battery Backup Sump Pump System
Model: 506410
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$586.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Combo Sumps Pumps
GPH
4020
Gallons
Switch Type
Diaphragm Switch
Style
Combo
GPH
4020 Gallons
Switch Type
Diaphragm
Features
Features
  • Protect Your Home + Added Peace Of Mind
  • Easy and quick installation
  • Check valve, elbow connector, & pump coupling included
  • Diaphragm switch eliminates moving parts switch error
  • 12-Volt DC Backup Pump
  • Empties the sump pit after a malfunction, outage or excess water
  • 3180 GPH at 0’ and 1440 GPH @ 10'
  • 23’ shut off/maximum lift
  • 1/2 HP Primary Pump (10EC-CIA-SFS)
  • Energy-efficient permanent split capacitor (PSC) motor
  • Automatic reset thermal overload protection
  • Heavy-duty cast iron construction
  • 12-Amp Controller/Charger/Alarm Unit
  • Test button to manually run backup pump to insure proper operation
  • Battery continually monitored to maintain full charge
  • 6' power cord on pump and charging unit
  • BATTERY & BATTERY ACID IS SOLD SEPARATELY
  • Use only with 12 VDC deep cycle battery
  • Rated 85-140Ah, lead-acid or AGM
  • Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
Specifications
Motor
Running Amps
15
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Outlet Diameter
1-1/2"
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Housing Material
Cast Iron
Solids Handling Size
1/8 inch
Handles Solids
No
Maximum PSI
15.6
Total Head Lift
36 Feet
Float Type
Diaphragm
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 20 feet
2820
Backup GPH @ 0 feet
3180
Built-in check Valve
Yes
Float On
13.5
Float Off
9
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1440
Backup GPH @ 15 feet
780
Battery Recharger
12 Amps
Max Head
23 Feet
Engine
Horsepower
.5 hp
Overview
Weight
31.5 Pounds
Consumer Warranty
2 Years
UPC
010121148116
Style
Combo Sumps Pumps
GPH
4020
Gallons
Switch Type
Diaphragm Switch
Style
Combo
GPH
4020 Gallons
Switch Type
Diaphragm
Features
Features
  • Protect Your Home + Added Peace Of Mind
  • Easy and quick installation
  • Check valve, elbow connector, & pump coupling included
  • Diaphragm switch eliminates moving parts switch error
  • 12-Volt DC Backup Pump
  • Empties the sump pit after a malfunction, outage or excess water
  • 3180 GPH at 0’ and 1440 GPH @ 10'
  • 23’ shut off/maximum lift
  • 1/2 HP Primary Pump (10EC-CIA-SFS)
  • Energy-efficient permanent split capacitor (PSC) motor
  • Automatic reset thermal overload protection
  • Heavy-duty cast iron construction
  • 12-Amp Controller/Charger/Alarm Unit
  • Test button to manually run backup pump to insure proper operation
  • Battery continually monitored to maintain full charge
  • 6' power cord on pump and charging unit
  • BATTERY & BATTERY ACID IS SOLD SEPARATELY
  • Use only with 12 VDC deep cycle battery
  • Rated 85-140Ah, lead-acid or AGM
  • Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
Specifications
Motor
Running Amps
15
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Outlet Diameter
1-1/2"
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Housing Material
Cast Iron
Solids Handling Size
1/8 inch
Handles Solids
No
Maximum PSI
15.6
Total Head Lift
36 Feet
Float Type
Diaphragm
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 20 feet
2820
Backup GPH @ 0 feet
3180
Built-in check Valve
Yes
Float On
13.5
Float Off
9
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1440
Backup GPH @ 15 feet
780
Battery Recharger
12 Amps
Max Head
23 Feet
Engine
Horsepower
.5 hp
Overview
Weight
31.5 Pounds
Consumer Warranty
2 Years
UPC
010121148116
