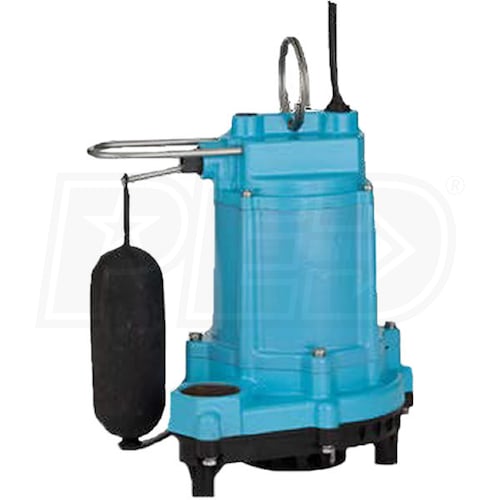

Little Giant 6EC-CIA-SFS - 1/3 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 506807
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(11)
Write a Review
$161.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Dec 1st
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Cord Length
Share
  • Product Description
  • 11
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Vertical
Features
Features
    Overview for Little Giant 506807

    Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.
  • Automatic Submersible Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Maximum PSI
12.1

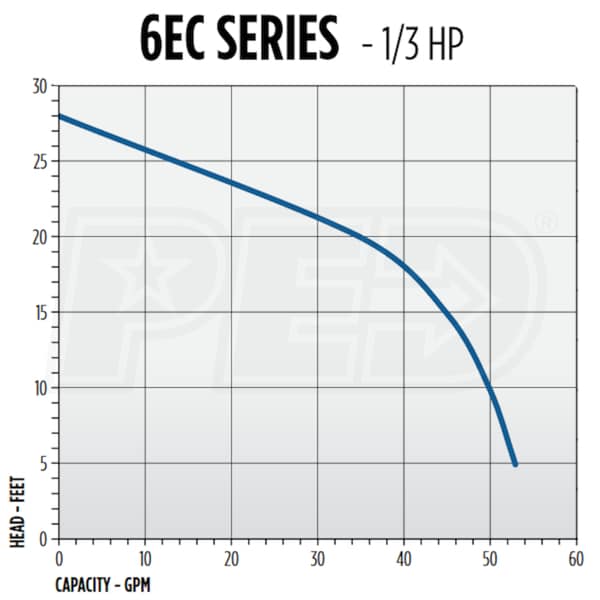

Total Head Lift
28 Feet
Float Type
Vertical Float
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
28 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121149076
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Vertical
Features
Features
    Overview for Little Giant 506807

    Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.
  • Automatic Submersible Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Vertical Float
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
28 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121149076
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Vertical Float
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
28 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121149076
Reviews
(11)
+
Little Giant 506807 Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Will the pump be damaged if it sits completely submerged for an extended period of time without running?
Jeff V.
from Vermont
July 22, 2017
Answer
Not at all Jeff. In fact it's recommended so that the pump seals do not dry out.
