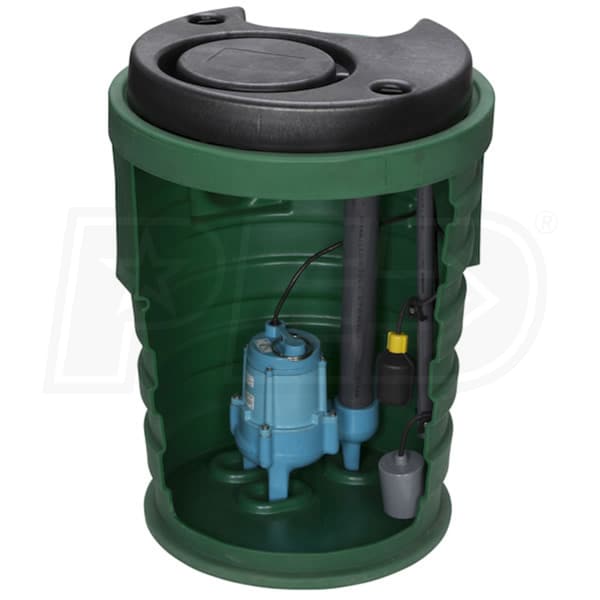

Little Giant 9SF3V2DA1 - Pit Plus® Sr. 4/10 HP Premium Simplex Sewage System w/ Tether Float Switch & Indoor Alarm (3" Vent, 2" Discharge)

Little Giant 9SF3V2DA1 - Pit Plus® Sr. 4/10 HP Premium Simplex Sewage System w/ Tether Float Switch & Indoor Alarm (3" Vent, 2" Discharge)
Model: 509668
$699.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$699.00Buy Now
No Sales Tax* (Except IL)$699.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
Tether
Features
Features
  • Pit+Plus® Sr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 30" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 3" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Cast iron pump housing with protective epoxy coating
  • High Water Alarm Included
  • Indoor rated enclosure
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
32 Inches
Consumer Warranty
2 Years
UPC
010121147539
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
Tether Float Switch
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
Tether
Features
Features
  • Pit+Plus® Sr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 30" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 3" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Cast iron pump housing with protective epoxy coating
  • High Water Alarm Included
  • Indoor rated enclosure
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
32 Inches
Consumer Warranty
2 Years
UPC
010121147539
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Maximum PSI
8.7
Float Type
Tether Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Built-in check Valve
No
Float On
9-14
Float Off
2-6
Engine
Horsepower
.4 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
32 Inches
Consumer Warranty
2 Years
UPC
010121147539
