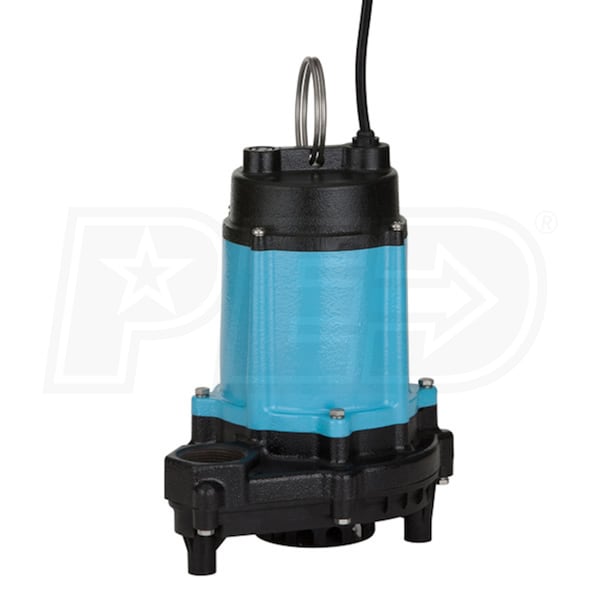

Little Giant 10EC-CIM - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump (Non-Automatic)
Model: 510801
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
4020
Gallons
Switch Type
None
Style
Primary
GPH
4020 Gallons
Switch Type
None
Features
Features
- *Non-Automatic* Submersible Cast Iron Sump Pump
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Integral Snap-Action Vertical Float Switch
- Double-seal design minimizes switch corrosion
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 10-Foot Power Cord
- 36' Max Shutoff Head
- 2-Year Limited Warrranty
Specifications
Dimensions
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Float Type

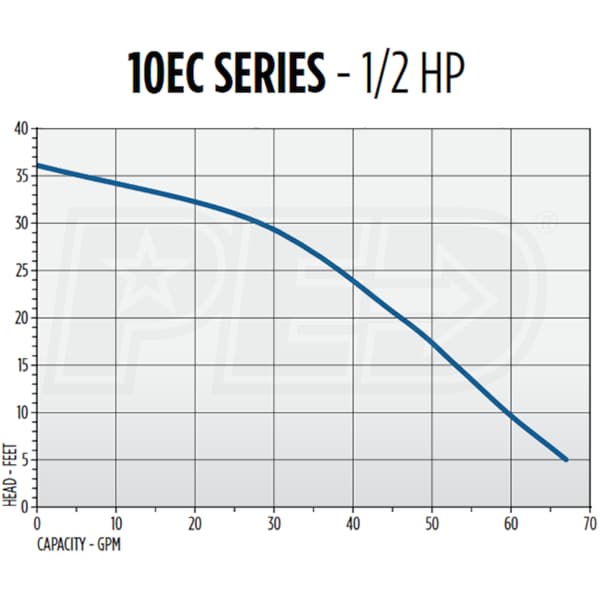

No Switch
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
36 Feet
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
8.79 Inches
Product Height
11.08 Inches
UPC
010121149182
Style

GPH
4020
Gallons
Switch Type
None
Style
Primary
GPH
4020 Gallons
Switch Type
None
Features
Features
- *Non-Automatic* Submersible Cast Iron Sump Pump
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Integral Snap-Action Vertical Float Switch
- Double-seal design minimizes switch corrosion
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 10-Foot Power Cord
- 36' Max Shutoff Head
- 2-Year Limited Warrranty
Specifications
Dimensions
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Float Type
No Switch
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
36 Feet
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
8.79 Inches
Product Height
11.08 Inches
UPC
010121149182
Product Specs
+−
Specifications
Dimensions
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Float Type
No Switch
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
36 Feet
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
8.79 Inches
Product Height
11.08 Inches
UPC
010121149182
