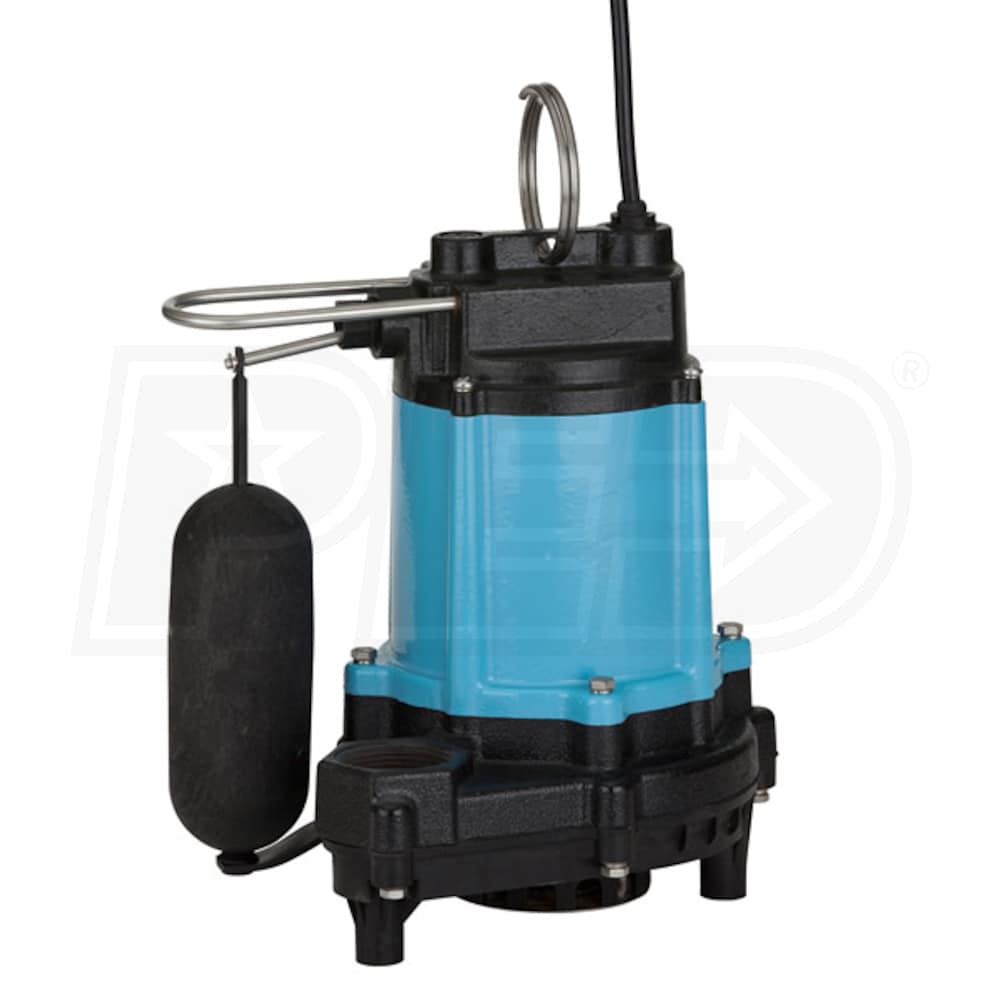

Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)

Model:

510802

Write a Review
$245.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)
Little Giant 10EC-CIA-SFS - 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)
Model: 510802
$245.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

4020 Gallons

Switch Type

Vertical
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

510802
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Maximum PSI
15.6
Total Head Lift
36 Feet
Float Type
Vertical Float

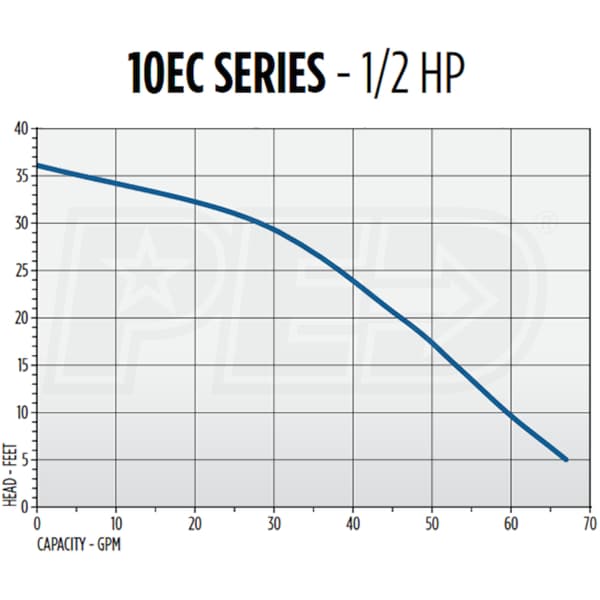

GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
10.66 Inches
Product Height
11.28 Inches
UPC
010121149199
