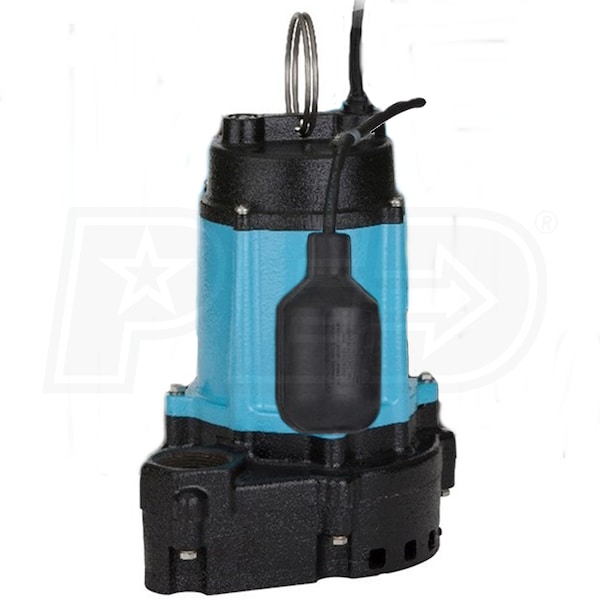

Little Giant 10EC-CIA-RF - 1/2 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float (20' Cord)

Model:

510852

Write a Review
$260.00
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability July 20, 2021
Shipping to60601

Little Giant 10EC-CIA-RF - 1/2 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float (20' Cord)
Little Giant 10EC-CIA-RF - 1/2 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float (20' Cord)
Model: 510852
$260.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

4020 Gallons

Switch Type

Piggy-Back Tether

  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Piggy-Back Tether Float Switch
  • Provides reliable automatic operation
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

510852
specs product image PID-70656
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Float Type
Piggy-Back Tether Switch

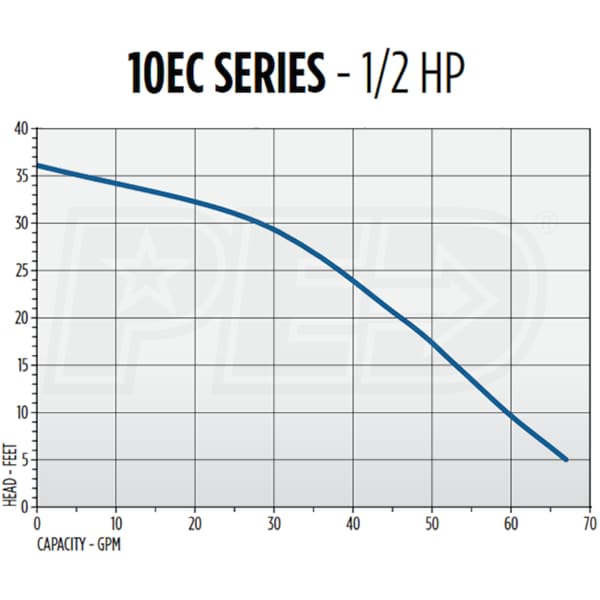

GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
11-15
Float Off
6-8
Manual Override
Yes
Max Head
36 Feet
Engine
Horsepower
.5 hp
Overview
Weight
36.5 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
8.79 Inches
Product Height
10.9 Inches
UPC
010121149236
