Little Giant OA1S - 1/2 HP Oil Sensing Elevator Sump / Effluent Pump System w/ 30' Cord

Model:

513408

Write A Review
$1,233.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability May 27, 2024
Shipping to60601

Little Giant OA1S - 1/2 HP Oil Sensing Elevator Sump / Effluent Pump System w/ 30' Cord
Little Giant OA1S - 1/2 HP Oil Sensing Elevator Sump / Effluent Pump System w/ 30' Cord
Model: 513408
$1,233.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3600 Gallons

Switch Type

Piggy-Back Tether

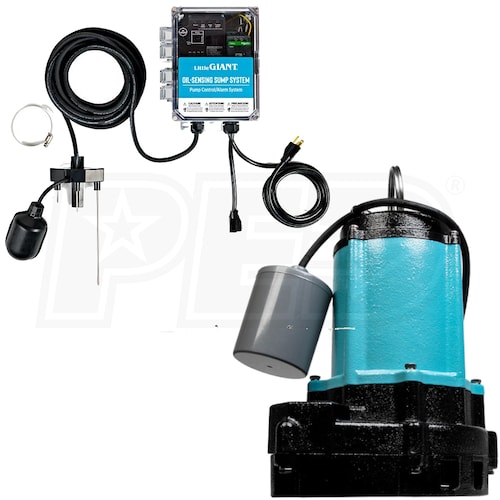

  • OA1S Oil Sensing 1/2 HP Elevator Sump / Effluent Pump System
  • Designed and approved for the safe pumping, alarming and monitoring
  • For elevator sump pits, transformer vaults and leachate wells
  • Remove water from elevator pits in accordance with ASME A17.1
  • Sensor, Control Panel & Alarm Panel
  • Indicators lights for power, running, high alarm, high oil & overload (optional)
  • 103 dB Buzzer auto test/reset
  • 9 VDC Battery backup
  • Designed For High Head Applications
  • Capable of delivering heads up to 60-feet

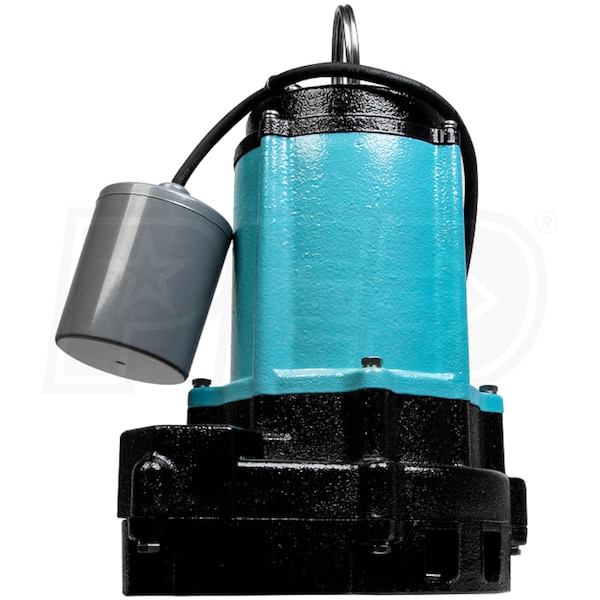

  • Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (9-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

513408
specs product image PID-153266
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Starting Amps
22
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

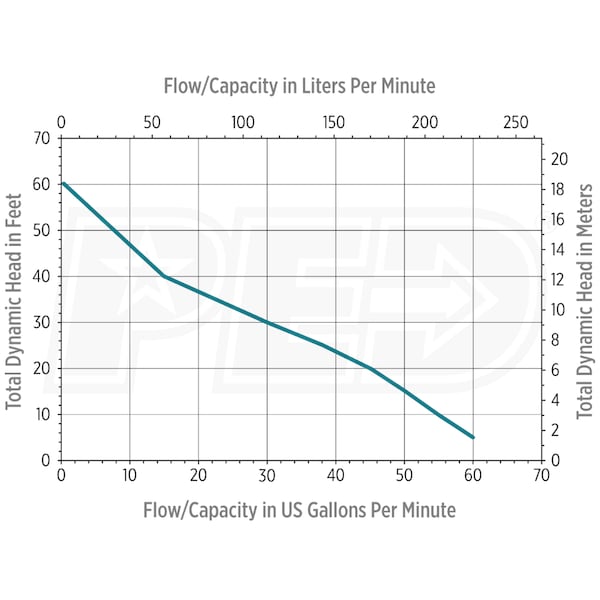

GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3300
GPH @ 15 feet
3000
GPH @ 20 feet
2700
Discharge Port Size
1-1/2 Inch
Manual Override
Yes
Max Head
60 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
38 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
11.3 Inches
UPC
010121016187
