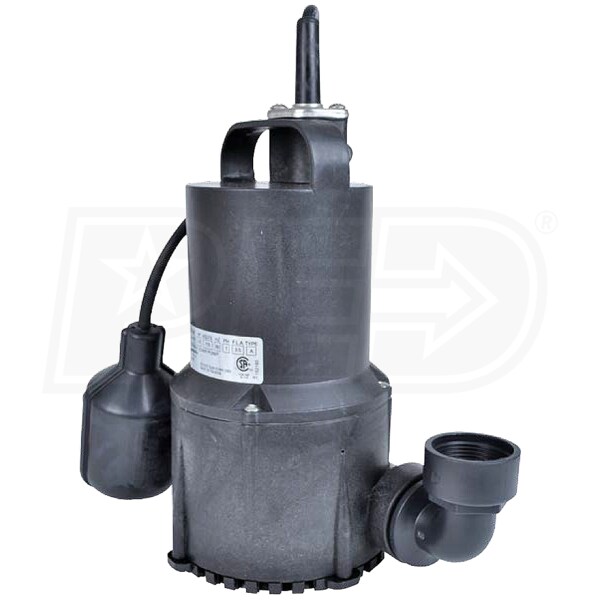

Little Giant SP33A - 1/3 HP Thermoplastic Submersible Sump Pump w/ Tether Float Switch
Model: 620135
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
Ask a Question
$117.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
1800
Gallons
Switch Type
Tether Float Switch
Style
Primary
GPH
1800 Gallons
Switch Type
Tether
Features
Features
  • Automatic Submersible Sump Pump
  • Ideal for light-duty sump and utility pump applications
  • Reinforced Thermoplastic Pump Housing
  • Durable design provides excellent corrosion resistance
  • 1/3 HP Continuous Duty, Overload Protected "Oil-Free" Motor
  • Energy saving design w/ low amp draw (3.5-Amps full load)
  • Tethered Float Switch
  • Provides automatic operation in sump pits as small as 12-inches
  • Stainless Steel Motor Housing & Heat Treated Shaft
  • Provides improved heat dissipation for longer motor life
  • Reinforced Thermoplastic Impeller
  • Non-clogging design passes up to 1/4" spherical solds
  • Built-In Suction Strainer w/ Removable Filter Screen
  • Minimizes debris entering pump to prevent pump damage
  • Makes cleaning out this pump an easy task
  • 10-Foot Power Cord
  • 23' Max Shutoff Head
  • 1-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Solids Handling Size
.25 inch
Float Type
Tether Switch

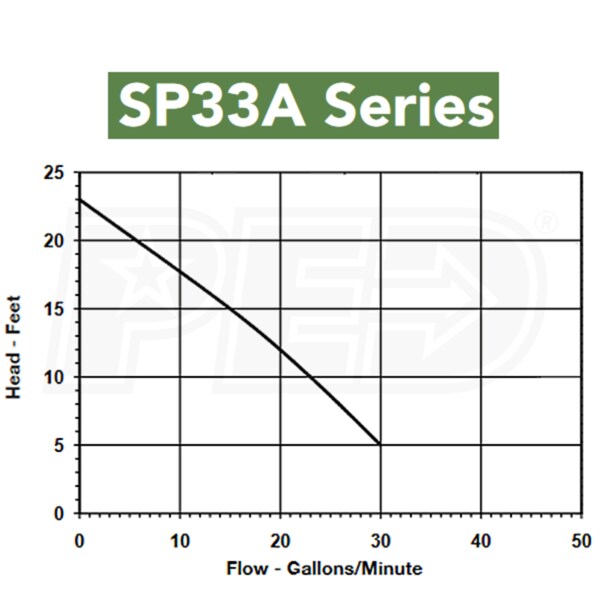

GPH @ 0 feet
1800
GPH @ 5 feet
1800
GPH @ 10 feet
1380
GPH @ 15 feet
900
GPH @ 20 feet
300
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
11.8" Inches
Float Off
5.9" Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
8.375 Inches
Product Width
5.87 Inches
Product Height
10 Inches
UPC
010121126008
