Features
Style
Back-up
GPH
2000 Gallons
Switch Type
Dual Vertical Sensor
- PHCC Pro Series 1000 Battery Backup Sump Pump System
- Automatically starts when your existing sump pump fails
- Provides added sump pump output with or withour power

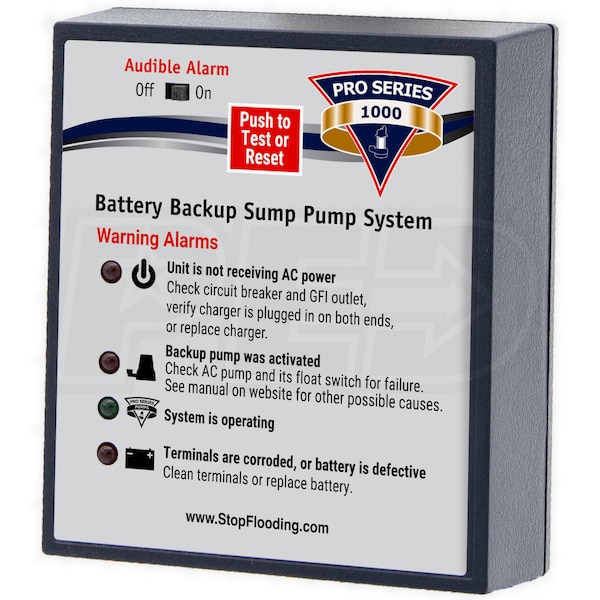

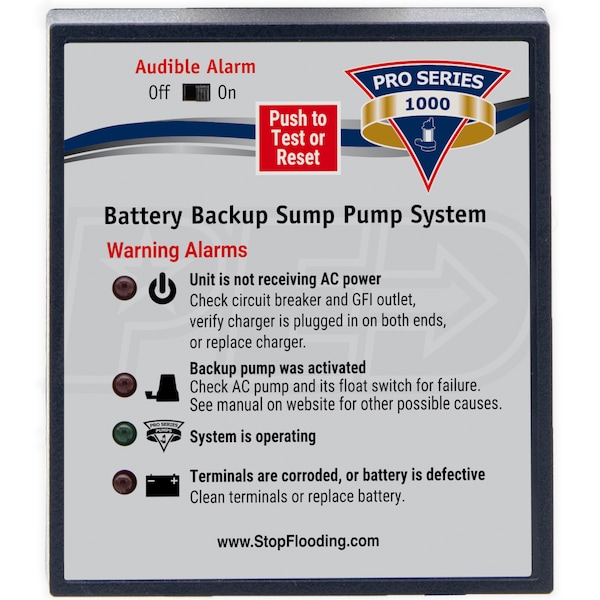

- Exclusive Monitoring System
- Controller monitors power conditions and battery life
- Sounds alarm during failure or required maintenance

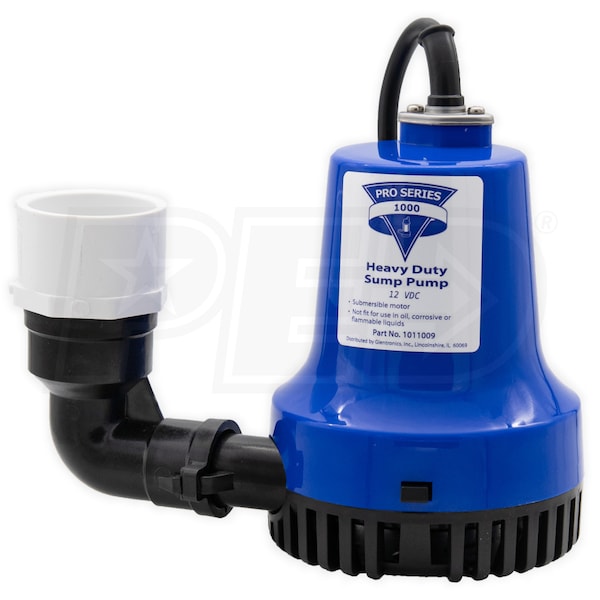

- Backup Sump Pump
- Continuous-duty, submersible pump w/ stainless steel shaft
- Rulon seal & rustproof housing provide extended pump life

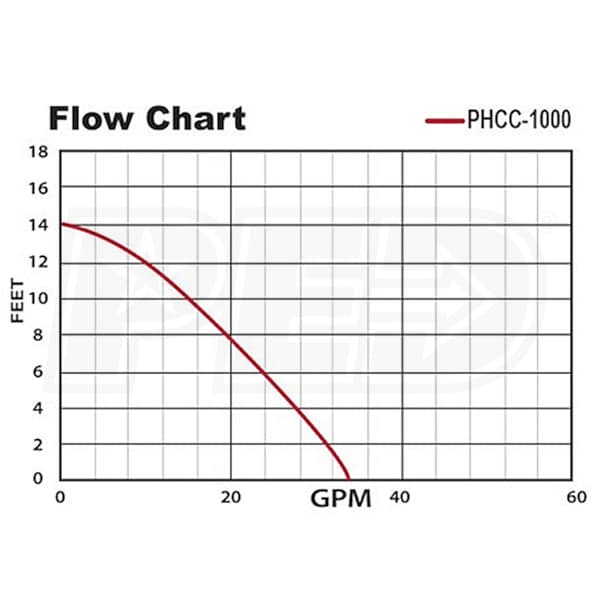

- Pumps 2000 gallons-per-hour @ 0’ lift (or 1000 GPH @ 10’ lift)
- 0.4-Amp Trickle Battery Charger
- Continuously & safely charnges battery when power is available
- Dual Micro Reed Vertical Float Switch w/ Protective Cage
- Added redundancy for protection and piece of mind
- Only needs to move 1/4" to activate the pump
- BATTERY & BATTERY ACID IS SOLD SEPARATELY
Specifications
PHCC-1000
Motor
Voltage
12 Volt DC
Running Amps
6.5
Battery Included
No
Power Cord Length
6 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
2000
GPH @ 10 feet
1000
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Overview
Weight
9 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
7.75 Inches
Product Width
8.5 Inches
Product Height
6.5 Inches
UPC
717301121463
