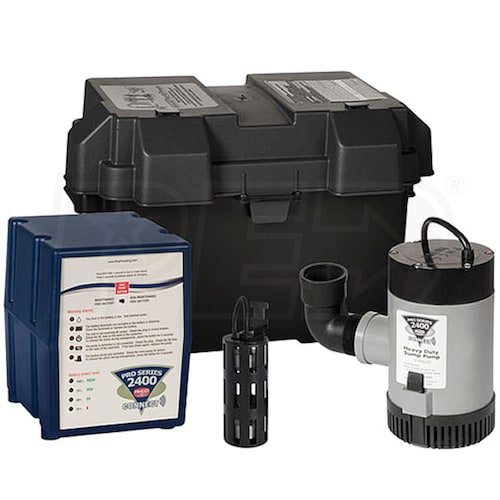

Pro-Series PHCC-2400 Battery Back Up Sump Pump (2400 GPH at 10')

Model:

PHCC-2400

Recommended
Write a Review
$637.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601

Pro-Series PHCC-2400 Battery Back Up Sump Pump (2400 GPH at 10')
Pro-Series PHCC-2400 Battery Back Up Sump Pump (2400 GPH at 10')
Model: PHCC-2400
$637.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Back-up

GPH

3900 Gallons

Switch Type

Dual Vertical Sensor

  • Pro-Series PHCC-2400 Battery Back Up Sump Pump
  • BATTERY & BATTERY ACID IS SOLD SEPARATELY
  • Automatically starts when your existing sump pump fails
  • Provides added sump pump output with or withour power
  • Exclusive Monitoring System w/ Weekly Self-Test

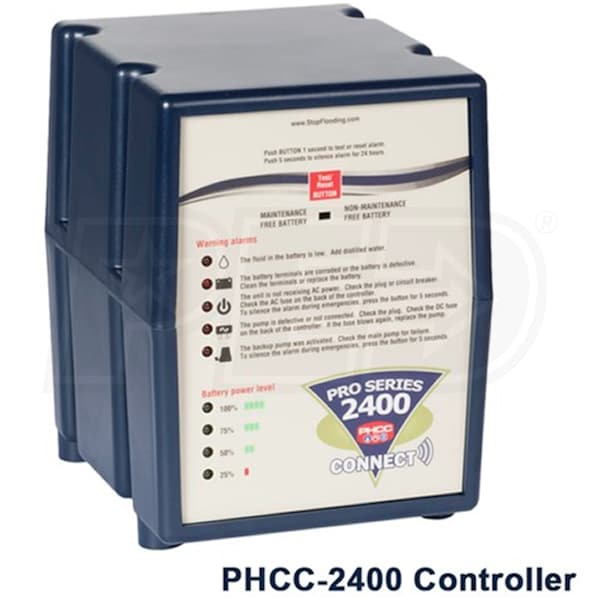

  • Computer-controller monitors power conditions and battery level
  • Sounds alarm & flashes during failure or required maintenance
  • Indicator lights for remaining battery life (100%, 75%, 50%, 25%)
  • Backup Sump Pump
  • Empties the sump pit in seconds after a malfunction or outage
  • Pumps 3900 gallons-per-hour @ 0 lift (or 2400 GPH @ 10 lift)
  • Runs on 120-volt AC power when power is on
  • Switches to 12-volt DC battery power when AC power fails
  • 13-Amp Battery Charger
  • Has the ability to charge standard & maintenance free batteries
  • Quickly recharges battery when power is restored
  • Shuts off completely to prolong the life of the battery

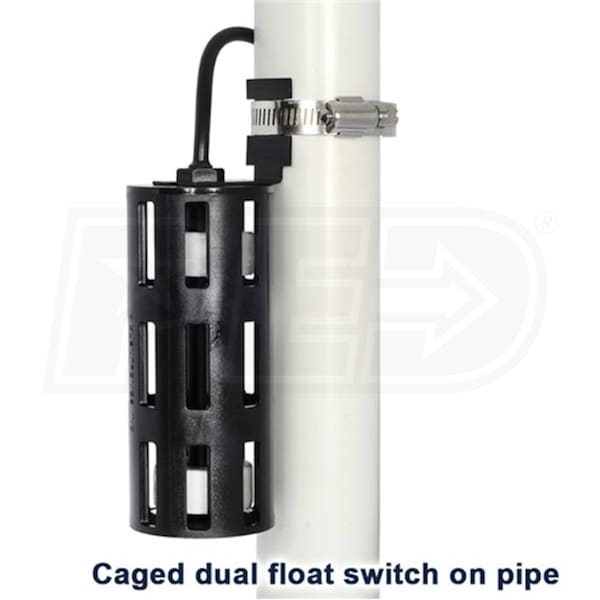

  • Pro Series Dual Float Switch w/ Protective Cage
  • Added redundancy for protection and piece of mind
  • Only needs to move 1/4" to activate the pump
  • Flow/Amp. Draw @ 10 ft Head 2,400 GPH / 16 Amps DC

Specifications

PHCC-2400
specs product image PID-11776
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
3900
GPH @ 10 feet
2400
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Battery Recharger
13 Amps
Overview
Weight
23 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
8.5 Inches
UPC
717301121784

Reviews

(19)
Pro Series PHCC-2400 Reviews & Ratings

Product Q&A

(3)
Expert avatar photo
Product Questions Answered by Jim, the Sump Pump Expert
Can I use a sealed battery on this unit?
Skye
from New Hampshire
November 14, 2020
Is this sump pump suitable as a battery back-up sump that needs a 12ft lift?
John F.
from Michigan
May 03, 2017
Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.
Larry
from Illinois
January 22, 2014
