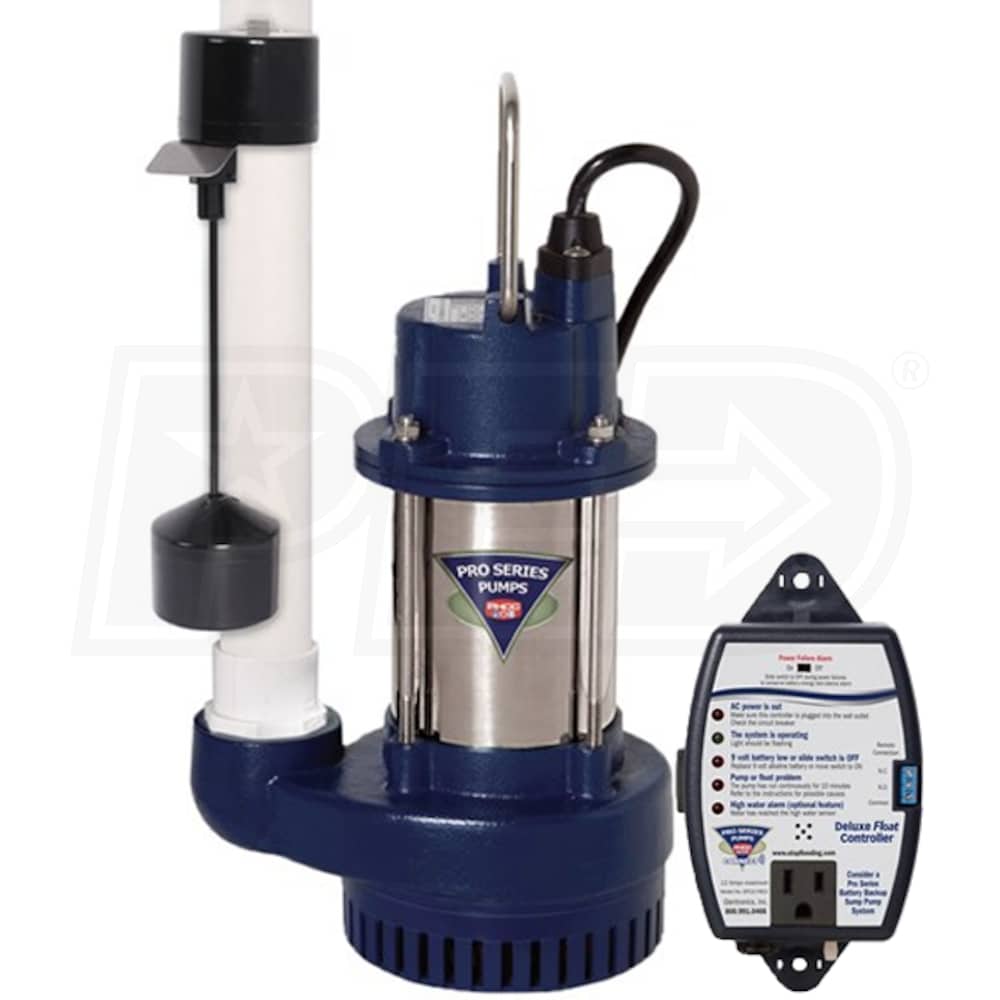

Pro Series S3100-VSC2 - 1 HP Cast Iron Submersible Sump w/ Deluxe Controller & Vertical Switch

Model:

S3100-VSC2

Write a Review
$570.00
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601

Pro Series S3100-VSC2 - 1 HP Cast Iron Submersible Sump w/ Deluxe Controller & Vertical Switch
Pro Series S3100-VSC2 - 1 HP Cast Iron Submersible Sump w/ Deluxe Controller & Vertical Switch
Model: S3100-VSC2
$570.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

5940 Gallons

Switch Type

Vertical

  • Pro Series S3 Series Submersible Sump Pump
  • 5-Year Warranty When Professionally Installed- 3-Year Warranty For All Other Installation
  • Designed for high volume water removal
  • Continuous Duty Rated
  • Works in the most demanding sump applications
  • Cast Iron Base & Stainless Steel Pump Body
  • Helps extend pump life in harsh sump/effluent conditions
  • 1 HP Permanent Split Capacitor (PSC) Motor
  • Energy efficient, thermally protected design
  • Only requires 11.5-Amps @ 10' head
  • Water-Cooled Motor (Oil-Free)
  • Motor is cooled by water flowing through/around pump housing
  • Cast Iron Impeller
  • Dynamically balanced design for increased efficiency
  • VSC2 Deluxe Controller w/ Vertical Float Switch
  • Monitors pump/power conditions & allows for adjustable run time
  • Sounds an alarm when a problem is detected
  • Carbon/Ceramic & Buna-N-Seal
  • Allows for extended pump life
  • Upper & Lowered Sealed Ball Bearings
  • Provides smooth & quiet operation
  • Stainless Steel Shaft & Fasteners
  • Helps minimize rust and corrosion
  • 2" Discharge
  • 20' Power Cord / 10' Float Cord
  • Meets the needs of residential sump applications

Specifications

S3100-VSC2
specs product image PID-97785
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
11.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
Yes
Nominal Voltage
120 Volt
Starting Amps
18
Pump
Housing Material
Cast Iron
Total Head Lift
52 Feet
Float Type
Vertical Float
GPH @ 0 feet
5940
GPH @ 10 feet
5520
Discharge Port Size
2 Inch
Float Cord
10 Feet
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
1 hp
Overview
Weight
46 Pounds
Consumer Warranty
5 Years
Commercial Warranty
1 Year
Product Depth
6.3 Inches
Product Width
11 Inches
Product Height
18 Inches
UPC
717301122774
