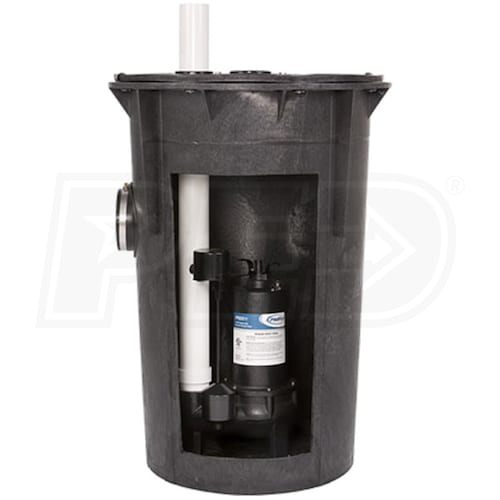

ProFlo PF93020 - 1/2 HP Cast Iron Sewage Pump System (2") w/ Vertical Float Switch

Model:

PF93020

Write a Review
$476.35
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601

ProFlo PF93020 - 1/2 HP Cast Iron Sewage Pump System (2
ProFlo PF93020 - 1/2 HP Cast Iron Sewage Pump System (2") w/ Vertical Float Switch
Model: PF93020
$476.35
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

4800 Gallons

Switch Type

Vertical

  • PROFLO's Simplex Pre-Assembled Sewage System
  • For typical residential and commercial applications
  • Submersible Sewage/Ejector Pump w/ Vertical Float Switch
  • Ideal for average waste removal
  • 1/2 HP Split Capacitor Motor (3450 RPM)
  • Continuous duty design, only draws 7.6A
  • Heavy-Duty Cast Iron Housing & Base Construction
  • For rapid heat dissipation and extended life
  • SJE Rhombus Vertical Float Switch
  • Provides automatic or manual operation via piggyback plug
  • High-Quality Components
  • Stainless steel motor shaft & fasteners
  • SS non-clogging Vortex impeller
  • 18" x 30" Durable Structural Foam Sewage Basin w/ 4" Inlets
  • Corrosion-resistant design, 30-Gallon capacity
  • 18" Structural Foam Cover w/ Gasket Kit (8-Bolt)
  • Accommodates standard 2" discharge and vent pipes
  • 3-Year Limited Warranty
  • Check Valve Not Included
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

PF93020
specs product image PID-15127
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4080
GPH @ 10 feet
3600
GPH @ 15 feet
2640
GPH @ 20 feet
780
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
50 Pounds
Consumer Warranty
3 Years
Product Length
22.5 Inches
Product Width
22.5 Inches
Product Height
30 Inches
UPC
781889170496
