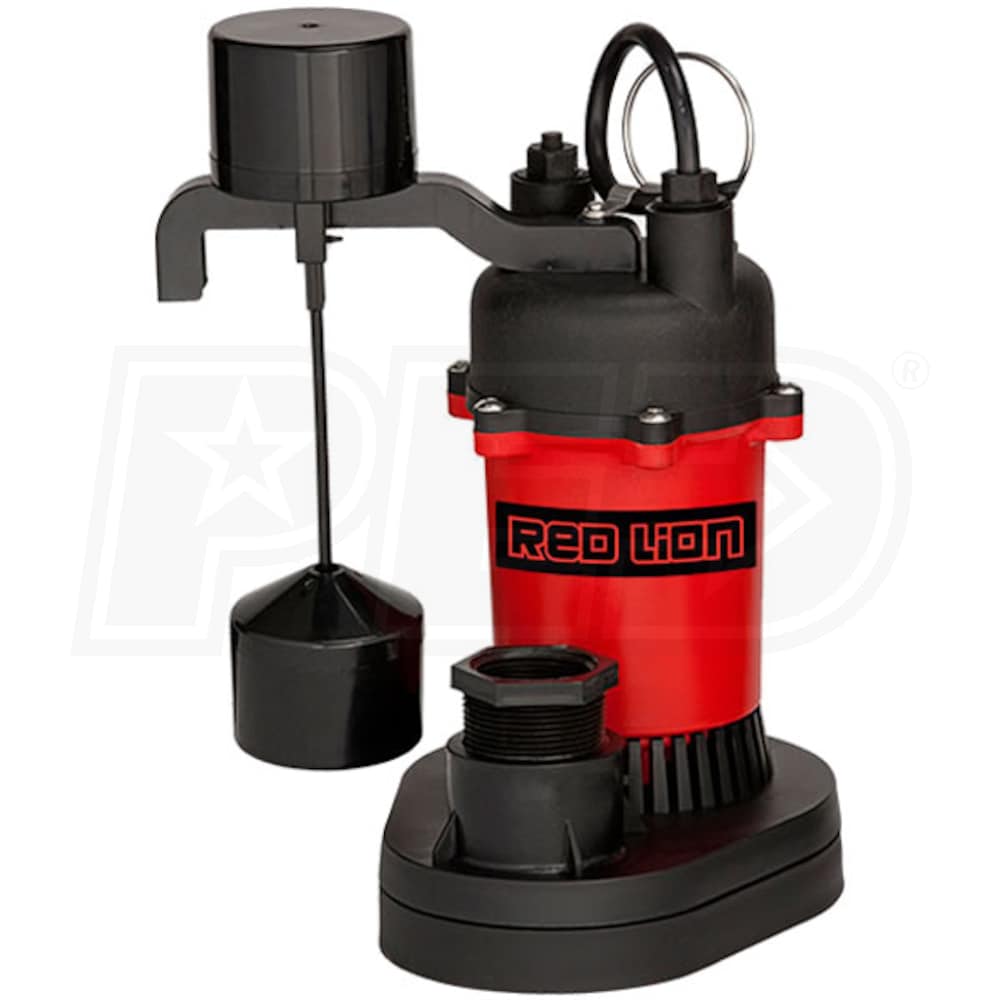

Red Lion RL-SP50V - 1/2 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Red Lion RL-SP50V - 1/2 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3600
Gallons
Switch Type
Style
Primary
GPH
3600 Gallons
Switch Type
Vertical
Features
Features
- Automatic Submersible Sump Pump
- Ideal for light water removal
- 1/2 HP PSC Motor
- Provides plenty of power to get the water moving
- Reinforced, Engineered Thermoplastic Construction
- Corrosion and rust-resistant
- Double Seal System
- Provides added protection to extend motor life
- Closed Vane Impeller Design
- Allows for superior water flow
- Piggyback Vertical Float Switch
- Reliable automatic operation for basins 11" diameter or greater
- Switch can be bypassed to run pump manually
- 1-1/2'' FNPT Discharge w/ 1-1/4'' FNPT Adapter
- Easily connects to your existing discharge line
- 8' Power Cord
- Ideal for residential sump applications
- 2-Year Limited Warranty
- *Note - Not Suitable For Pond Use
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3060
GPH @ 10 feet
2520
GPH @ 15 feet
1920
GPH @ 20 feet
1320
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
2.75
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
13 Pounds
Consumer Warranty
3 Years
UPC
010121141667
Additional Model Numbers
RL-SP50V, 14942743
