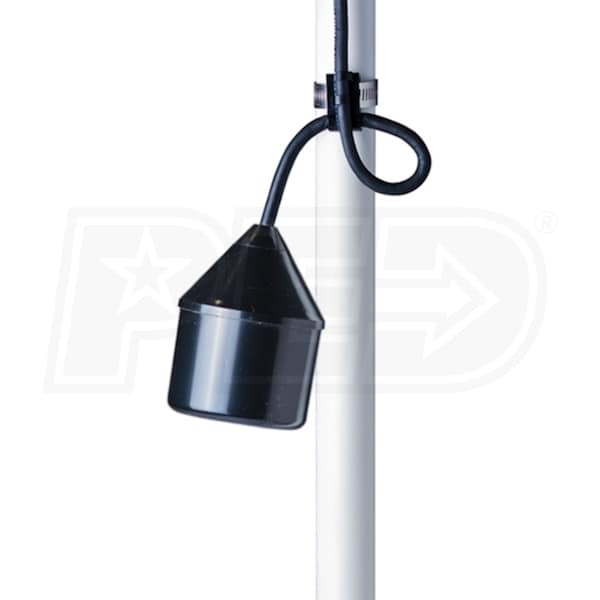

SJE-Rhombus 15PCNO - Sensor Float® Switch (Normally Open/High Level) w/ 15' Cord
Model: 1002117
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- SJE Sensor Float® Control Switch (Normally Open Contacts)
- Designed to activate pump control panels & alarms
- Suitable for use with intrinsically safe circuits
- For Use In Sump, Sewage & Effluent Applications
- Rated @ 5A Max 125/250VAC - Max Water Depth 30', 13PSI
- "High Level" Normally Open Contacts (Yellow Colored Cap)
- Turns on (closes) when the switch tips slightly above horizontal
- Turns off (opens) when the switch drops slightly below horizontal
- PVC Float Housing (2.74"D x 4.83"L)
- High impact, corrosion-resistant design for liquids up to 140 F
- Mercury Activated, Narrow-Angle Design (.5" Control Diff.)
- Hermetically sealed in a steel capsule for reliable operation
- 15' SJOW CPE Cord w/ Bare Leads For Hardwiring Applications
- Flexible, 18-gauge gauge construction that's water resistant
- Includes Mounting Clamp
- For apps. where switch is attached to discharge pipe or rail system
- UL Recognized For Use In Non-Potable Water & Sewage
- 5-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Power Cord Length
15 Feet
Pump
Float Type
Tether Switch
Overview
Weight
1.64 Pounds
Consumer Warranty
5 Years
Product Length
180 Inches
Features
Features
- SJE Sensor Float® Control Switch (Normally Open Contacts)
- Designed to activate pump control panels & alarms
- Suitable for use with intrinsically safe circuits
- For Use In Sump, Sewage & Effluent Applications
- Rated @ 5A Max 125/250VAC - Max Water Depth 30', 13PSI
- "High Level" Normally Open Contacts (Yellow Colored Cap)
- Turns on (closes) when the switch tips slightly above horizontal
- Turns off (opens) when the switch drops slightly below horizontal
- PVC Float Housing (2.74"D x 4.83"L)
- High impact, corrosion-resistant design for liquids up to 140 F
- Mercury Activated, Narrow-Angle Design (.5" Control Diff.)
- Hermetically sealed in a steel capsule for reliable operation
- 15' SJOW CPE Cord w/ Bare Leads For Hardwiring Applications
- Flexible, 18-gauge gauge construction that's water resistant
- Includes Mounting Clamp
- For apps. where switch is attached to discharge pipe or rail system
- UL Recognized For Use In Non-Potable Water & Sewage
- 5-Year Limited Warranty
Specifications
Motor
Voltage
120/240 Volt
Power Cord Length
15 Feet
Pump
Float Type
Tether Switch
Overview
Weight
1.64 Pounds
Consumer Warranty
5 Years
Product Length
180 Inches
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Power Cord Length
15 Feet
Pump
Float Type
Tether Switch
Overview
Weight
1.64 Pounds
Consumer Warranty
5 Years
Product Length
180 Inches
