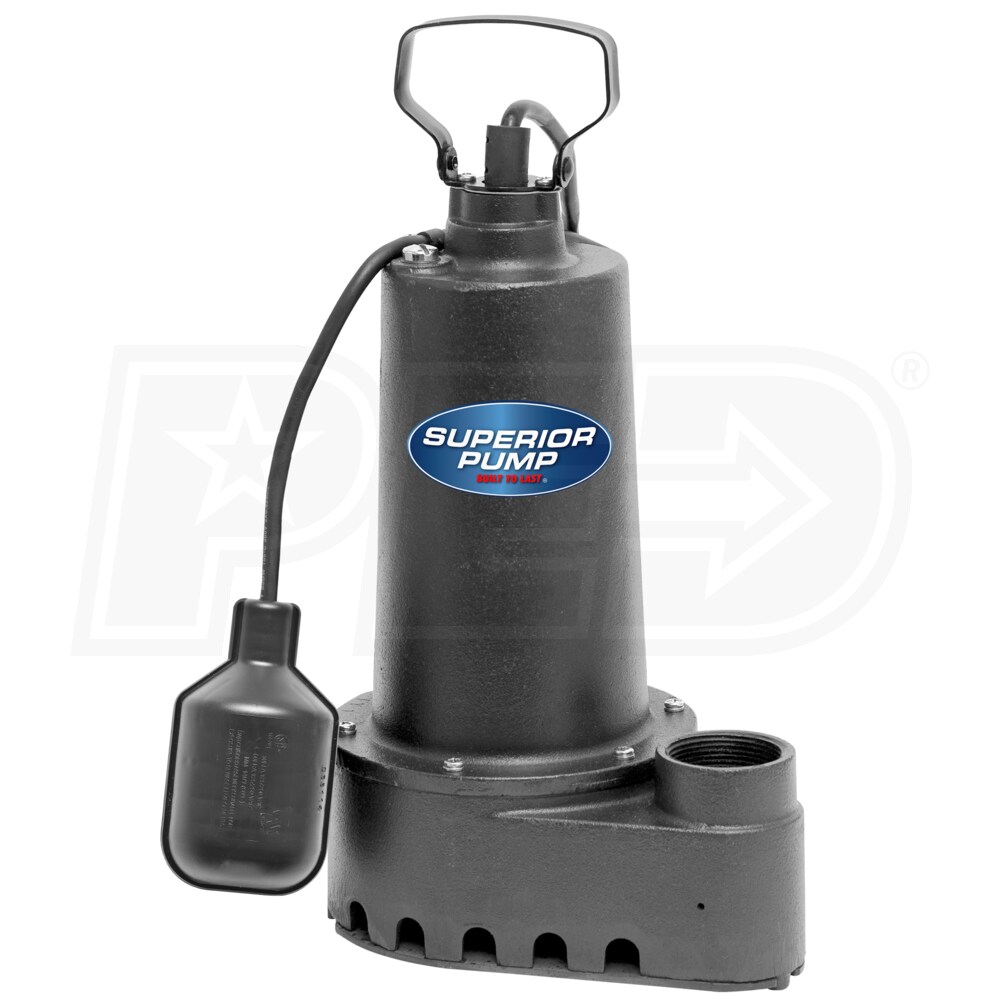

Superior Pump 92501 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch

Superior Pump 92501 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model: 92501
$129.99
Backordered
Estimated Availability June 07, 2018
Notify Me When In-Stock
Free Shipping &
Tax-Free (Except IL)
Backordered
Estimated Availability June 07, 2018
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
4200
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
4200 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Submersible Sump Pump w/ Tether Float Switch
  • Ideal for average water removal
  • Thermally Protected, 1/2 HP Split Capacitor Motor
  • Continuous duty design, only draws 7.6A
  • Heavy-Duty Cast Iron Housing & Base Construction
  • For rapid heat dissipation and extended life
  • Side/Bottom Suction Design
  • Able to pass up to 1/2" solids
  • High-Quality Components
  • Stainless steel motor shaft & fasteners
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
34
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Float Type
Piggy-Back Tether Switch

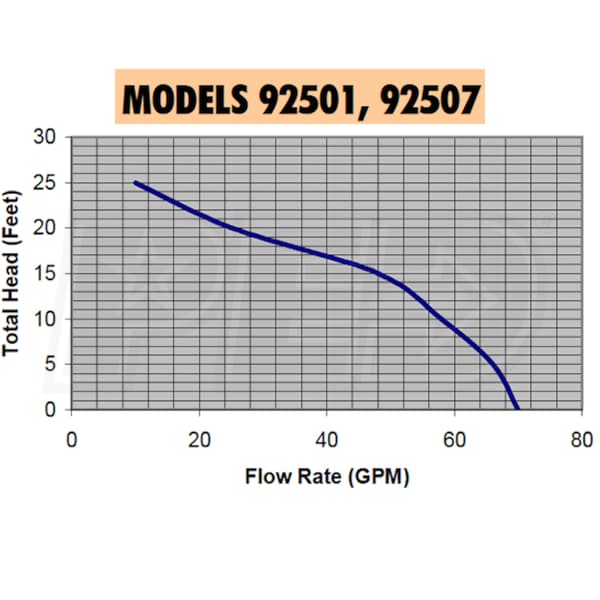

GPH @ 0 feet
4200
GPH @ 5 feet
3960
GPH @ 10 feet
3480
GPH @ 15 feet
2880
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Overview
Weight
27 Pounds
Product Length
8.5 Inches
Product Width
6 Inches
Product Height
12.125 Inches
Consumer Warranty
3 Years
UPC
725113925018
Style
Primary Sumps Pumps
GPH
4200
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Primary
GPH
4200 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Submersible Sump Pump w/ Tether Float Switch
  • Ideal for average water removal
  • Thermally Protected, 1/2 HP Split Capacitor Motor
  • Continuous duty design, only draws 7.6A
  • Heavy-Duty Cast Iron Housing & Base Construction
  • For rapid heat dissipation and extended life
  • Side/Bottom Suction Design
  • Able to pass up to 1/2" solids
  • High-Quality Components
  • Stainless steel motor shaft & fasteners
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
34
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4200
GPH @ 5 feet
3960
GPH @ 10 feet
3480
GPH @ 15 feet
2880
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Overview
Weight
27 Pounds
Product Length
8.5 Inches
Product Width
6 Inches
Product Height
12.125 Inches
Consumer Warranty
3 Years
UPC
725113925018
Product Specs
+
Specifications
Motor
Voltage
120 Volt
Running Amps
7.6
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
34
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4200
GPH @ 5 feet
3960
GPH @ 10 feet
3480
GPH @ 15 feet
2880
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Overview
Weight
27 Pounds
Product Length
8.5 Inches
Product Width
6 Inches
Product Height
12.125 Inches
Consumer Warranty
3 Years
UPC
725113925018
Reviews
(2)
+
Superior Pump 92501 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Is this pump capable of handling water softener and washing machine discharge? if not, which brand/model can?
Steve K
from Wisconsin
June 06, 2013
Answer
Generally, sump pumps are not recommended for use in a water softener and/or laundry application. Just about all manufacturers will void the warranty if the pump is installed and fails in this application. You might check out our selection of LAUNDRY / DRAIN PUMP SYSTEMS as most of these self contained systems are designed for laundry and water softener applications.
+
Hi Jim, I'm looking at getting the Superior Pump 92501 - 1/2 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch, but not sure how you can adjust the switch setting on these to turn on at different heights. Can you explain? Thanks
Pete
from Massachusetts
December 04, 2011
Answer
With tether floats you have the option of shortening and lengthening the runtime of the pump by simply loosening a clamp on the top of the pump and shortening or lengthening the cord that the float is attached to and then tightening the clamp to keep the cord and float at your desired setting. Make sure the float switch will swing freely from the bottom to top without coming in contact with the side of the sump basin. Contact with the side of the sump basin may cause the switch to malfunction.
