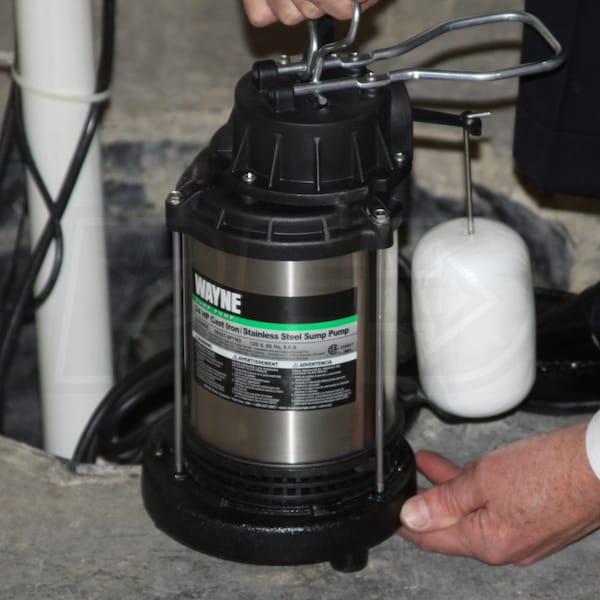

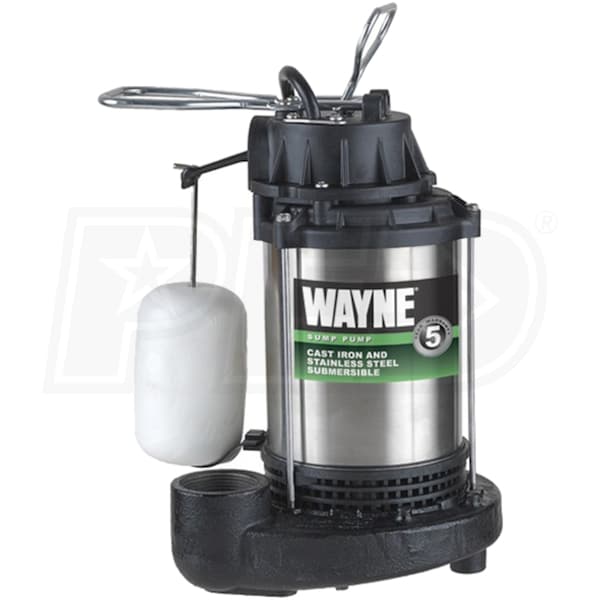

Wayne CDU1000 - 1 HP Stainless Steel Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model:
CDU1000
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
6100 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Wayne CDU1000 1 HP Automatic Submersible Sump Pump
- Assembled in the US with foreign and domestic parts
- The Hardest Working Pumps, You'll Never Hear™
- Energy efficient motors & engineered design provide an ultra quiet experience
- Stainless Steel & Cast Iron Construction
- Rugged, corrosion-resistant design provides long life in sump applications
- 1-HP, Thermally Protected 120V PCS Motor
- Energy efficient, oil-filled design, for quiet operation and extend motor life
- Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
- Prevents switch hang-ups from debris for reliable automatic operation
- Unique Top Suction Design Reduces Clogging
- Prevents air lock occurrences and eliminates needs for a "weep hole"
- Glass Reinforced Polycarbonate Impeller
- Abrasion resistant design provides efficient and reliable output
- 1-1/2" NPT Discharge
- Complies with building-codes for residential applications
- Upper and Lower Ball Bearings
- Sealed oil-bath engineering for increased lifespan and virtually silent operation
- Premium John Crane Carbon/Ceramic Shaft Seals & Cast Iron Seal Plate
- High-quality components helps prevent leaks and galvanic corrosion
- Designed For Use In 11-Inch or Larger Sump Basins
- 8-Foot, water-resistant power cord for easier access to power outlet
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
CDU1000
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
9.8
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
6100
GPH @ 5 feet
5640
GPH @ 10 feet
5100
GPH @ 15 feet
4560
GPH @ 20 feet
3840
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Max Head
21 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Product Category
Sump Pump
Weight
22 Pounds
Consumer Warranty
5 Years
Product Width
9.75 Inches
Product Height
11.5 Inches
UPC
040066214836
Reviews
(69)
Wayne CDU1000 Reviews & Ratings
Product Q&A
(5)
Product Questions
Answered by Jim, the Sump Pump Expert
What effect would upsizing the discharge pipe have on the pump?
Jim
from Connecticut
July 22, 2023
Does this pump require a weep hole?
Michael J.
from Pennsylvania
April 01, 2017
Jim, The four long screws on the side of the pump that hold everything together are they also stainless? The reason I asked is because I had a Wayne 3/4 stainless steel that worked for a lot of years but that's the reason why it failed was because the screws were made of steel and they rusted through and water got inside.
Chuck
from Wisconsin
October 21, 2015
Jim, What would be the average PSI coming through a schedule 40 pvc pipe from this unit. I will be using it to power a pelton wheel so the PSI is important.
Kenny
from Texas
November 30, 2012
Is it easy to get it clogged up from leaves?
Mac
from Louisiana
August 19, 2012
