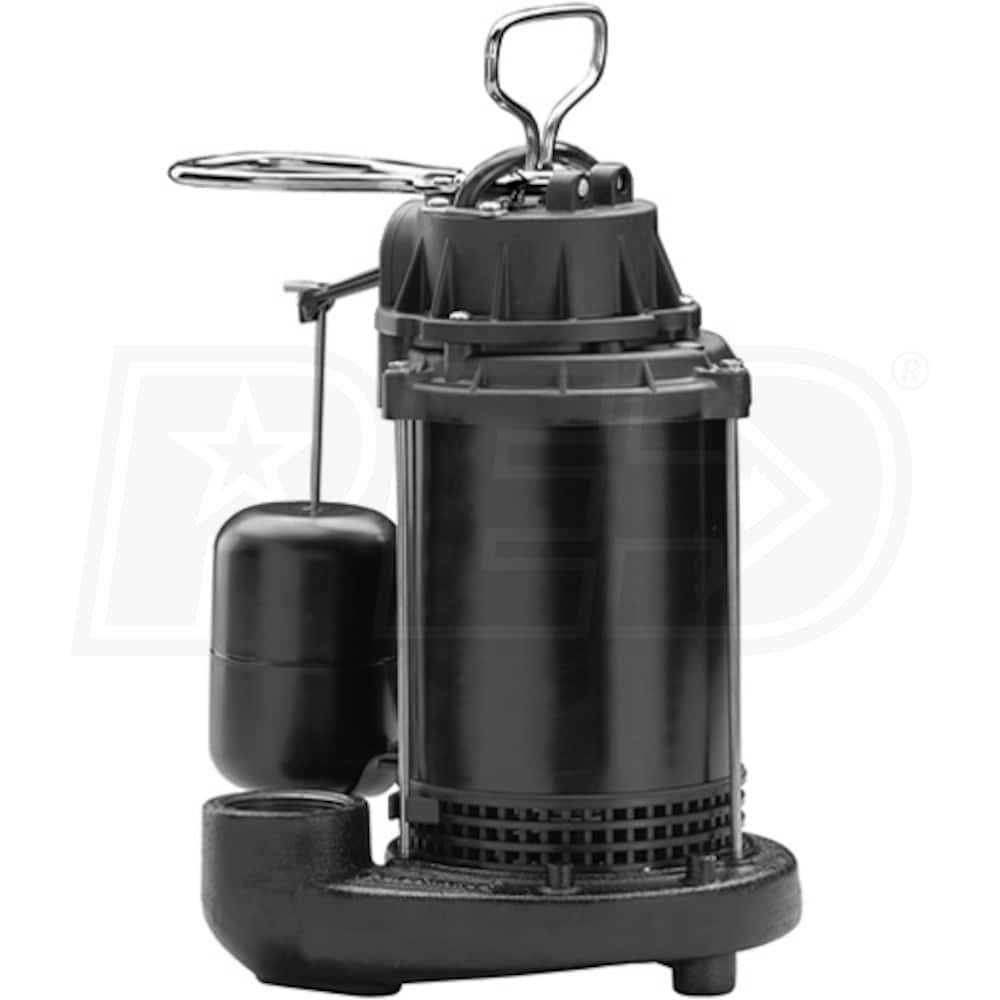

Wayne EE790 1/3 HP Energy Efficient Sump Pump w/ Vertical Float Switch

Model:

EE790

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Wayne EE790 1/3 HP Energy Efficient Sump Pump w/ Vertical Float Switch
Wayne EE790 1/3 HP Energy Efficient Sump Pump w/ Vertical Float Switch
Model: EE790
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Similar Products

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 1
$419.00
Factory-Direct

Features

Style

Primary

GPH

3800 Gallons

Switch Type

Vertical

  • Energy Efficient Sump Pump
  • PUMP more water using 50% LESS ENERGY!
  • Save up to $75 annually
  • Durable Cast Iron Volute & Epoxy-Coated Steel Housing
  • Offers years of reliable, trouble-free operation
  • Corrosion-Resistant Motor Housing & Fasteners
  • Extends the lifespan of the pump
  • High Performance 1/3 HP Thermally Protected Motor
  • Oil-filled, prevents overheating
  • Upper & Lower Sealed Roller Ball Bearings
  • Provides quiet performance cycle after cycle
  • Carbon/Ceramic Shaft Seals
  • Extends the lifespan of the pump
  • Top Suction Design
  • Filters debris and minimizes clogging
  • Vertical Float Switch
  • Provides automatic operation
  • High Capacity 1 1/2" NPT discharge
  • Replaces most submersible sumps without any plumbing changes

Specifications

EE790
specs product image PID-6501
Base
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3800
GPH @ 5 feet
3450
GPH @ 10 feet
2700
GPH @ 15 feet
1700
GPH @ 20 feet
100
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Weight
17.9 Pounds
Consumer Warranty
3 Years
Product Width
9.75 Inches
Product Height
11.5 Inches
