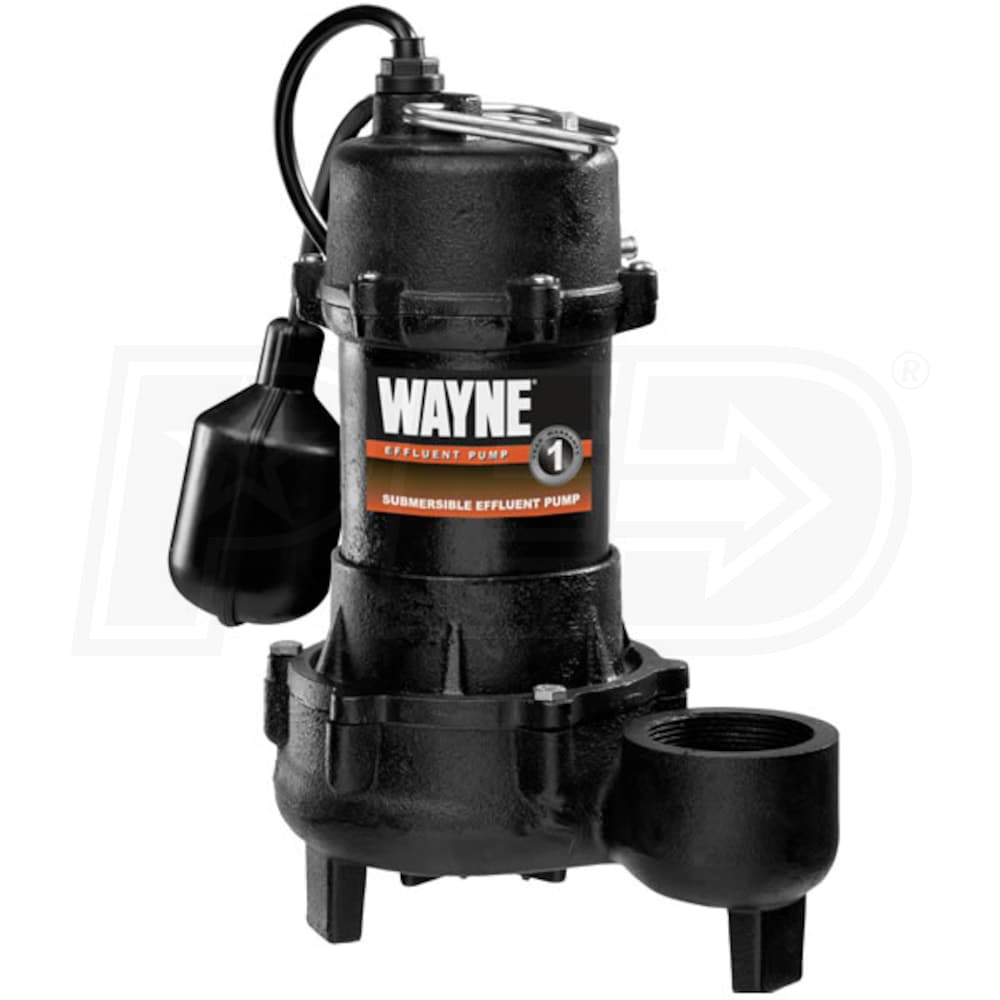

Wayne EFL30 - 3/10 HP Cast Iron Effluent Pump w/ Piggyback Tether Float

Wayne EFL30 - 3/10 HP Cast Iron Effluent Pump w/ Piggyback Tether Float
Model: EFL30
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sales Tax Extra $143.99Visit Site
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 7
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
3900
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3900 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • 3/10 HP Submersible Effluent Pump
  • Ideal for average sewage/gray water removal
  • Cast Iron Motor Housing, Volute & Base
  • Offers years of reliable, trouble-free operation
  • Thermally Protected Motor
  • Oil-filled, prevents overheating
  • Reinforced Poly-Carbonate Impeller
  • Offers reliable pumping and passing of solids up to 3/4"
  • Replaceable Piggy-Back Tether Float Switch
  • Designed for automatic or manual operation
  • 2" NPT Discharge
  • Designed for easy installation without any plumbing changes
  • Cast Iron Seal Plate & Low Ball Bearings
  • Designed for quite and extended product life
  • Stainless Steel Ring
  • Made for complete portability and versatility
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Running Amps
5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.30 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3900
GPH @ 5 feet
3480
GPH @ 10 feet
2940
GPH @ 15 feet
2400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14.5 Inches
Float Off
5.75 Inches
Manual Override
Yes
Overview
Weight
25 Pounds
Product Width
11 Inches
Product Height
13.5 Inches
Consumer Warranty
1 Year
UPC
040066209368
Style
Effluent Sumps Pumps
GPH
3900
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3900 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • 3/10 HP Submersible Effluent Pump
  • Ideal for average sewage/gray water removal
  • Cast Iron Motor Housing, Volute & Base
  • Offers years of reliable, trouble-free operation
  • Thermally Protected Motor
  • Oil-filled, prevents overheating
  • Reinforced Poly-Carbonate Impeller
  • Offers reliable pumping and passing of solids up to 3/4"
  • Replaceable Piggy-Back Tether Float Switch
  • Designed for automatic or manual operation
  • 2" NPT Discharge
  • Designed for easy installation without any plumbing changes
  • Cast Iron Seal Plate & Low Ball Bearings
  • Designed for quite and extended product life
  • Stainless Steel Ring
  • Made for complete portability and versatility
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Running Amps
5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.30 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3900
GPH @ 5 feet
3480
GPH @ 10 feet
2940
GPH @ 15 feet
2400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14.5 Inches
Float Off
5.75 Inches
Manual Override
Yes
Overview
Weight
25 Pounds
Product Width
11 Inches
Product Height
13.5 Inches
Consumer Warranty
1 Year
UPC
040066209368
Product Specs
+
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Running Amps
5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Engine
Horsepower
.30 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
0.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3900
GPH @ 5 feet
3480
GPH @ 10 feet
2940
GPH @ 15 feet
2400
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
14.5 Inches
Float Off
5.75 Inches
Manual Override
Yes
Overview
Weight
25 Pounds
Product Width
11 Inches
Product Height
13.5 Inches
Consumer Warranty
1 Year
UPC
040066209368
Reviews
(7)
+
Wayne EFL30 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
hi jim, what is the difference between a sump pump, and a effluent pump
Rick Fillion
from New Hampshire
May 25, 2011
Answer
Sump pumps are designed to remove unwanted seepage or rainwater from an area of the home whereas an effluent pump is designed to remove filtered effluent from a sepric tank to a leech field and are generally desined to handle solids up to 3/4 of an inch. Effluent pumps can also be used as sump or general dewatering pumps where grass clipping, leaves or other small debris might clog the screen of the typical sump pump.

Effluent is defined by the United States Environmental Protection Agency as “wastewater - treated or untreated - that flows out of a treatment plant, sewer, or industrial outfall. Generally refers to wastes discharged into surface waters”. The Compact Oxford English Dictionary defines effluent as “liquid waste or sewage discharged into a river or the sea”.
