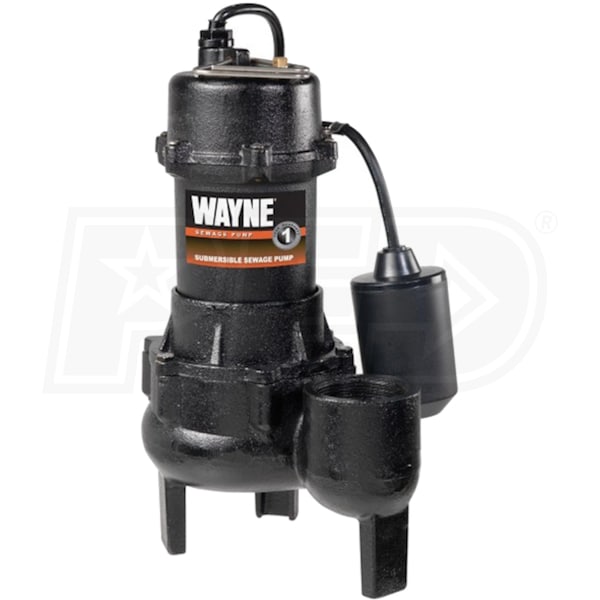

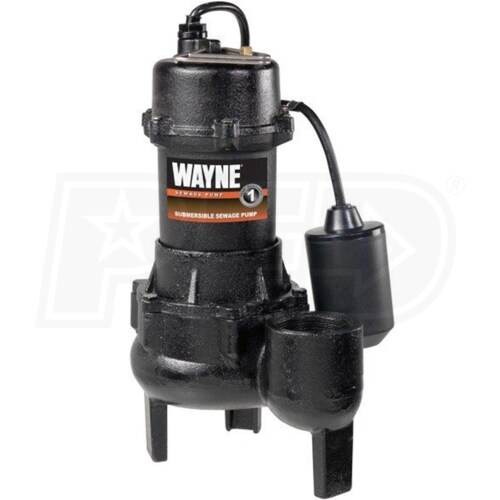

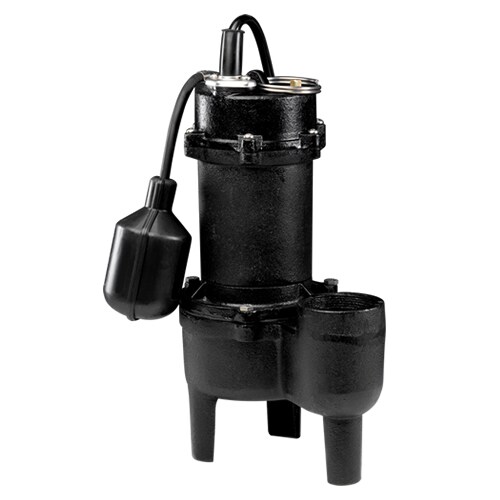

Wayne RPP50 - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float
Model:
RPP50
+
Share This Product
Features
Style
Sewage Pump
GPH
6200 Gallons
Switch Type
Piggy-Back Tether
- Sewage Pump w/ Piggy-Back Tether Float Switch
- For automatic or manual operation
- Epoxy Coated Cast Iron Construction
- Offers years of reliable, trouble-free operation
- High Capacity 2" Discharge
- Capable of handling 2" solids
- Designed For Easy Installation
- No plumbing changes
- Designed For Quiet Operation
- Lower ball bearings keep the noise levels down
- 1-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
RPP50
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
6.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
6200
GPH @ 5 feet
4800
GPH @ 10 feet
3240
GPH @ 15 feet
1500
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
16 Inches
Float Off
7.5 Inches
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
26 Pounds
Consumer Warranty
1 Year
Product Width
9.75 Inches
Product Height
14 Inches
UPC
040066207555
Reviews
(129)
Wayne RPP50 Reviews & Ratings
Product Q&A
(10)
Product Questions
Answered by Jim, the Sump Pump Expert
Question
+−
Will this pump work as a sewer ejection pump for a basement bathroom or do I need a 'grinder' pump?
Bryan W.
from Michigan
May 02, 2017
Answer
Hello Bryan. In most cases, a standard SEWAGE PUMP will do the job for you. If however, you expect problems from people flushing something other than normal sewage, like baby wipes, towels, feminine products, etc., a GRINDER PUMP would be more effective.
Was this answer helpful?
Yes
0
No
0
Question
+−
Is this pump rated for outdoor use? I have a drainage sump at a low point of the driveway.
John B
from Texas
May 13, 2015
Answer
Most any sump or sewage pump can be installed outdoors, however all electrical connections must be done indoors or they need to be very well protected from the elements.
Was this answer helpful?
Yes
0
No
0
Question
+−
Can the plugs on this pump be cut and hard wired without any issue?
Ralph
from Kentucky
March 10, 2015
Answer
That is a field alteration and warranty is voided – Yes – it can be done – NO WARRANTY if the cords are cut.
Was this answer helpful?
Yes
0
No
0
Question
+−
Is this pump use 110v or 230v?
Anthony T
from Texas
September 17, 2013
Answer
The Wayne model RPP50 is rated at 110 volts. Actually, most of our sewage pumps are rated for 110 volts. The few that are not, will be noted under the features on the pump product page if they are 240 volt rated.
Was this answer helpful?
Yes
0
No
0
Question
+−
how big of a pump do I need for a bath room in the basement.
Art Miranda
from Indiana
June 12, 2012
Answer
The Wayne model RPP50 would be more than sufficient or you might look at the Superior 1/2 HP Cast Iron Sewage Pump System model 93015 or the Bur-Cam 4/10 HP Heavy Duty Cast Iron Sewage Pump System model 400419T. These systems would provide everything you need with the exception of the PVC for your discharge and vent.
Was this answer helpful?
Yes
0
No
0
Question
+−
Do you have to use float switch or can you manually turn the pump on and off. it is a Wayne RPP50 - 1/2 HP Cast Iron Tether Float Switch Sewage Pump
Gerald Baker
from Pennsylvania
May 10, 2012
Answer
The Wayne model RPP50 does come with a "piggyback" style tether float switch and can be operated manually if you wish. Just be sure that you do NOT run it dry.
Was this answer helpful?
Yes
0
No
0
Question
+−
Is it ok if this pump gets submerged in 4 feet of water
Tom Bice (Thomas C. Bice)
from Wisconsin
December 20, 2011
Answer
No problem, however please keep in mind the the float would activate and drain most of your basin and would continue to operate in that fashion as long as the basin is filling with water.
Was this answer helpful?
Yes
0
No
0
Question
+−
Wayne RPP50 - 1/2 HP Cast Iron Tether Float Switch Sewage Pump.
The spec sheet states it runs at 6.3 amps but I have seen other ads elsewhere that show the same Wayne pump RPP50-1/2hp at 15 hp. Which is the accurate amps/ ^.3 or 15 amps?
Gary
from Louisiana
May 17, 2011
Answer
The 6.3 amp rating is the motor full load amps and the 15 amp rating is the minimum circuit amperage required for the pump.
Was this answer helpful?
Yes
0
No
0
Question
+−
RE: MODEL RPP50 IT HAS A 2" DISCHARGE. MY TRUCK WELL HAS A 1 1/2" PIPE TRU THE CONCRETE. CAN I REDUCE THIS PUMP FROM 2 TO 1 1/2 WITHOUT MESSING IT UP?
FRED ESPOSITO
from Florida
April 04, 2011
Answer
For sewage pumps, it is recommended that you keep the same discharge size since the pump is capable of handling 2" solids.
Was this answer helpful?
Yes
0
No
0
Question
+−
I 'm finishing my basement and I need a ejector pump since my main sewer pump is three feet above the basement floor. I'm putting in a sink, toilet, sink and a wet bar. What type of ejector pump would be best in my situation.
Tim
from New Jersey
January 30, 2011
Answer
What you just described is a standard sewage/ejector pump application.
A 4/10 or 1/2 HP sewage pump would meet your needs.
A 4/10 or 1/2 HP sewage pump would meet your needs.
Was this answer helpful?
Yes
0
No
0
