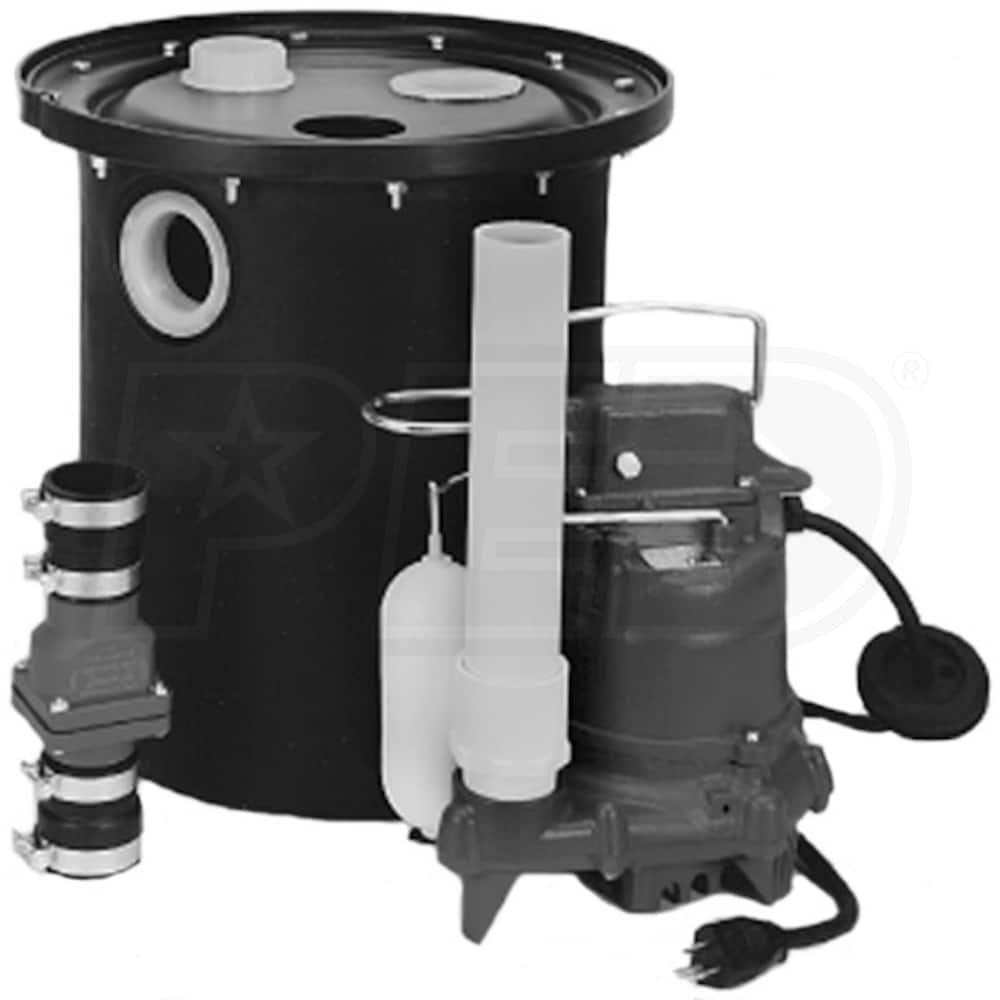

Zoeller 105-0010 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch (2" Inlet)
Zoeller 105-0010 - 1/3 HP (M53) Remote Sink/Drain Pump System w/ Vertical Float Switch (2" Inlet)
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2680
Gallons
Switch Type
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Pre-packaged for easy installation
- *** 2" NPT Inlet - No Screen ***
- For laundry tray pump, wet bar sink, lavatory, AC condensate / dehumidifier
- Can also be used with dishwashers and garbage disposal applications
- Cast Iron Switch Case, Motor & Pump Housing
- Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base w/ Built-In Strainer
- Corrosion resistant design, easily passes laundry lint
- 1/3 HP Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Impeller
- Capable of passing 1/2" diameter solids
- Vertical Float Switch
- Solid and buoyant polypropylene design
- 14.5" (W) x 12.5" (H) Polyethylene Basin
- High capacity, corrosion resistant w/ Gas Tight Cover
- Threaded Connection For Easy Installation
- 2" NPT Vent & 1-1/2" NPT Discharge
- 1-1/2" Slip-On Check Valve
- Engineered for longer life & quiet operation
- 9-Foot Power Cord For Easy Connection
- *Note - Utilizes a different basin than Zoeller's standard system - 2" Side Vent Only
Specifications
Motor
Voltage
120 Volt
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
Product Width
15.75 Inches
Product Height
15.5 Inches
UPC
053514151782
Style
GPH
2680
Gallons
Switch Type
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Pre-packaged for easy installation
- *** 2" NPT Inlet - No Screen ***
- For laundry tray pump, wet bar sink, lavatory, AC condensate / dehumidifier
- Can also be used with dishwashers and garbage disposal applications
- Cast Iron Switch Case, Motor & Pump Housing
- Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base w/ Built-In Strainer
- Corrosion resistant design, easily passes laundry lint
- 1/3 HP Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Impeller
- Capable of passing 1/2" diameter solids
- Vertical Float Switch
- Solid and buoyant polypropylene design
- 14.5" (W) x 12.5" (H) Polyethylene Basin
- High capacity, corrosion resistant w/ Gas Tight Cover
- Threaded Connection For Easy Installation
- 2" NPT Vent & 1-1/2" NPT Discharge
- 1-1/2" Slip-On Check Valve
- Engineered for longer life & quiet operation
- 9-Foot Power Cord For Easy Connection
- *Note - Utilizes a different basin than Zoeller's standard system - 2" Side Vent Only
Specifications
Motor
Voltage
120 Volt
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
Product Width
15.75 Inches
Product Height
15.5 Inches
UPC
053514151782
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
3 Years
Product Width
15.75 Inches
Product Height
15.5 Inches
UPC
053514151782
