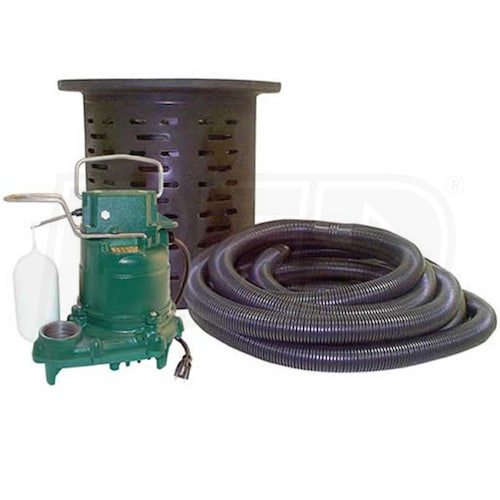

Zoeller 108-0001 - 3/10 HP Cast Iron Crawl Space Pump System w/ 24' Hose Kit
Model: 108-0001
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(7)
Write a Review
Ask a Question
$319.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Nov 26th
Shipping to60601
Shipping Details
  • Expedited Shipping Available - Shipping rates calculated at Checkout. Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 7
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Basic Crawl Space Pump System
  • Eliminates water and dampness where you need it most
  • Automatic Submersible Sump Pump w/ Vertical Float Switch
  • Never have to deal with a babysitting a manual pump again
  • Thermally Protected 1/3 HP Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Prevents base corrosion from high mineral content groundwater
  • Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
  • Provides the ability to pass solids up to 1/2"
  • 12-1/4" (W) by 14-7/8" (Tall) Perforated Poly Sump Basin
  • Compact design can be installed indoors or outdoors
  • 24' Discharge Hose & 25' Power Cord
  • Meets the needs of a wide variety of applications
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • * Note - Check Valve Not Included & Sold Separately
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
25 Feet
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float

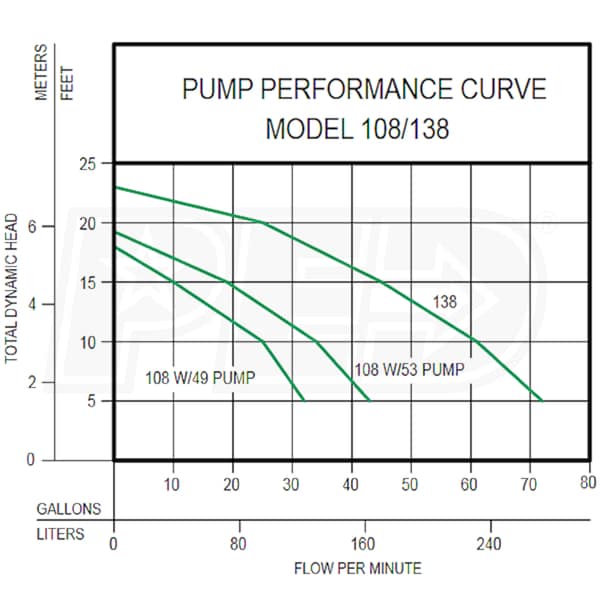

GPH @ 0 feet
2680
GPH @ 5 feet
2580
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.30 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
15 Inches
Product Width
16 Inches
Product Height
15 Inches
UPC
053514094133
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Basic Crawl Space Pump System
  • Eliminates water and dampness where you need it most
  • Automatic Submersible Sump Pump w/ Vertical Float Switch
  • Never have to deal with a babysitting a manual pump again
  • Thermally Protected 1/3 HP Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Prevents base corrosion from high mineral content groundwater
  • Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
  • Provides the ability to pass solids up to 1/2"
  • 12-1/4" (W) by 14-7/8" (Tall) Perforated Poly Sump Basin
  • Compact design can be installed indoors or outdoors
  • 24' Discharge Hose & 25' Power Cord
  • Meets the needs of a wide variety of applications
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • * Note - Check Valve Not Included & Sold Separately
  • 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
25 Feet
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2580
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.30 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
15 Inches
Product Width
16 Inches
Product Height
15 Inches
UPC
053514094133
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
25 Feet
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2580
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.30 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
15 Inches
Product Width
16 Inches
Product Height
15 Inches
UPC
053514094133
