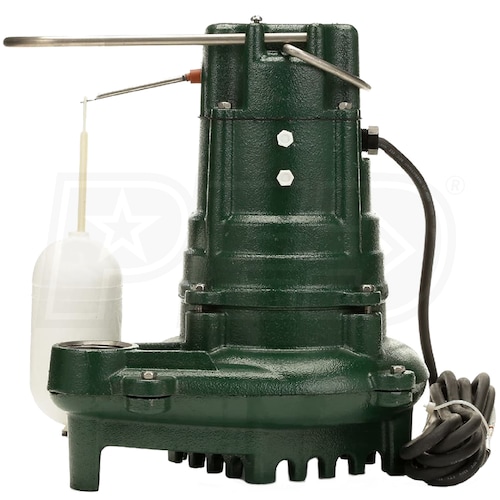

Zoeller M137 - 1/2 HP Cast Iron Sump / Effluent Pump w/ Vertical Float Switch & 25' Cord

Zoeller M137 - 1/2 HP Cast Iron Sump / Effluent Pump w/ Vertical Float Switch & 25' Cord
Model: 137-0007
$359.70
Ships in 2-5 Business Days
Free Shipping
Free ShippingNo Sales Tax* (Except IL)$359.70Buy Now
No Sales Tax* (Except IL)$359.70Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
5580
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
5580 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Flow-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • Mechanical Vertical Float Switch Allows For Automatic Operation
  • Durable Cast Iron Construction (Pump Housing, Base & Impeller)
  • Corrosion-resistant powder coated epoxy finish
  • 1/2 HP Thermally Protected Motor (1750 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • Cast Iron Non-Clogging Vortex Impeller
  • Passes 5/8" spherical solids - No screens to clog
  • Carbon/Ceramic Shaft Seal & Upper/Lower Sleeve Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 25' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.7
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.625 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
5580
GPH @ 5 feet
5400
GPH @ 10 feet
4500
GPH @ 15 feet
3480
GPH @ 20 feet
2160
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
10 Inches
Float Off
2.75 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
48 Pounds
Dimensions
12.25"L x 10.93"W x 12.75"H
Consumer Warranty
3 Years
UPC
053514013998
Style
Effluent Sumps Pumps
GPH
5580
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
5580 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller Flow-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • Mechanical Vertical Float Switch Allows For Automatic Operation
  • Durable Cast Iron Construction (Pump Housing, Base & Impeller)
  • Corrosion-resistant powder coated epoxy finish
  • 1/2 HP Thermally Protected Motor (1750 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • Cast Iron Non-Clogging Vortex Impeller
  • Passes 5/8" spherical solids - No screens to clog
  • Carbon/Ceramic Shaft Seal & Upper/Lower Sleeve Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 25' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.7
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.625 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
5580
GPH @ 5 feet
5400
GPH @ 10 feet
4500
GPH @ 15 feet
3480
GPH @ 20 feet
2160
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
10 Inches
Float Off
2.75 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
48 Pounds
Dimensions
12.25"L x 10.93"W x 12.75"H
Consumer Warranty
3 Years
UPC
053514013998
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.7
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.625 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
5580
GPH @ 5 feet
5400
GPH @ 10 feet
4500
GPH @ 15 feet
3480
GPH @ 20 feet
2160
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
10 Inches
Float Off
2.75 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
48 Pounds
Dimensions
12.25"L x 10.93"W x 12.75"H
Consumer Warranty
3 Years
UPC
053514013998
