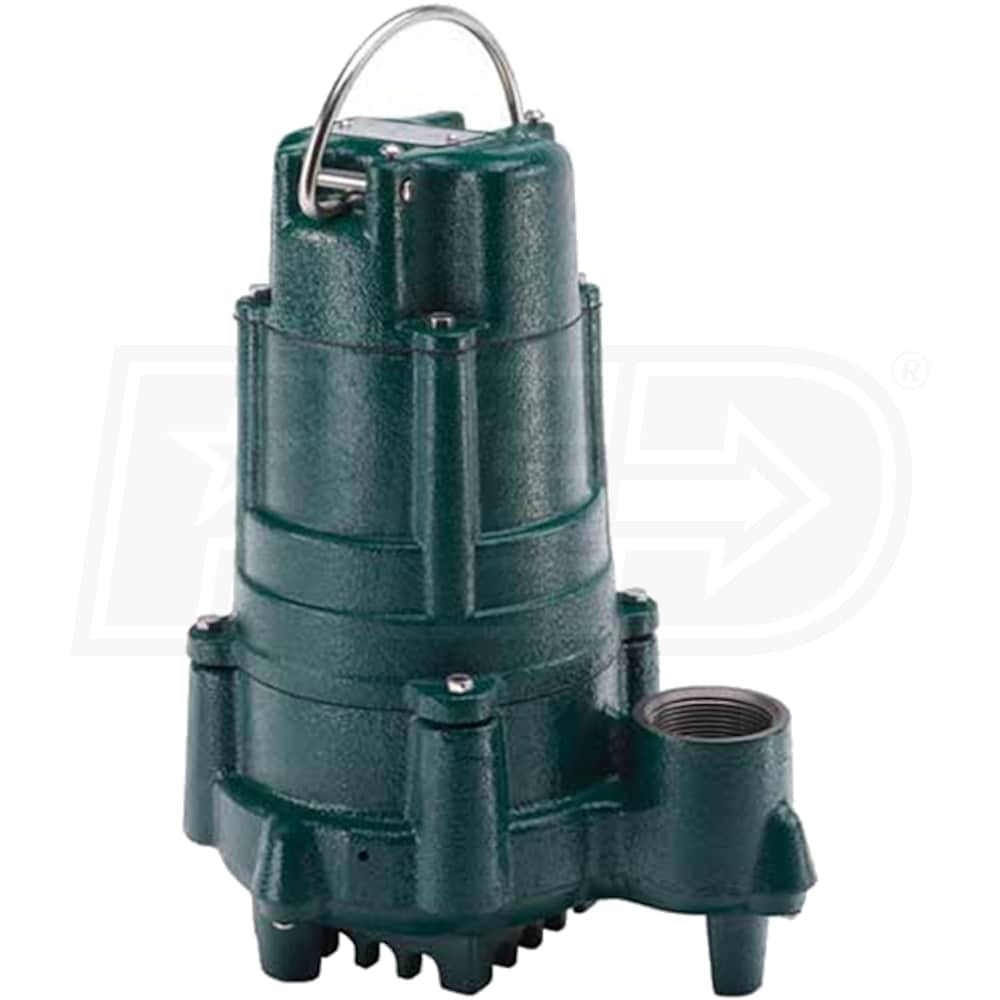

Zoeller N140 - 1 HP Cast Iron Effluent Pump (Non-Automatic)
Model: 140-0002
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(4)
Write a Review
$525.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Share
  • Product Description
  • 4
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
5160
Gallons
Switch Type
None
Style
Effluent
GPH
5160 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
  • Zoeller N140 Flow-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • Provides up to 50' Max Head
  • Durable Cast Iron Construction (Cap, Pump Housing, Motor Housing & Base )
  • Corrosion-resistant powder coated epoxy finish for maximum durability
  • 1 HP Thermally Protected Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • Non-Clogging Engineered Thermoplastic Vortex Impeller
  • Passes 1/2" spherical solids - No screens to clog
  • Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel bolts and lifting handle for increased durability
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • 100% Pressure-tested, submerged and run to ensure quality and reliability
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch

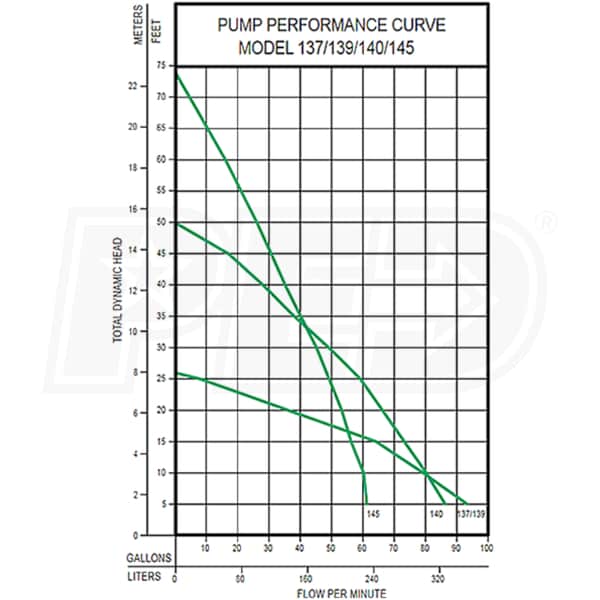

GPH @ 0 feet
5160
GPH @ 5 feet
5160
GPH @ 10 feet
4800
GPH @ 15 feet
4380
GPH @ 20 feet
3960
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
10.1875 Inches
Product Height
12.4 Inches
UPC
053514040543
Style
Effluent Sumps Pumps
GPH
5160
Gallons
Switch Type
None
Style
Effluent
GPH
5160 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
  • Zoeller N140 Flow-Mate Submersible Effluent Pump
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • Provides up to 50' Max Head
  • Durable Cast Iron Construction (Cap, Pump Housing, Motor Housing & Base )
  • Corrosion-resistant powder coated epoxy finish for maximum durability
  • 1 HP Thermally Protected Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • Non-Clogging Engineered Thermoplastic Vortex Impeller
  • Passes 1/2" spherical solids - No screens to clog
  • Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel bolts and lifting handle for increased durability
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • 100% Pressure-tested, submerged and run to ensure quality and reliability
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
5160
GPH @ 5 feet
5160
GPH @ 10 feet
4800
GPH @ 15 feet
4380
GPH @ 20 feet
3960
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
10.1875 Inches
Product Height
12.4 Inches
UPC
053514040543
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
5160
GPH @ 5 feet
5160
GPH @ 10 feet
4800
GPH @ 15 feet
4380
GPH @ 20 feet
3960
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
43 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
10.1875 Inches
Product Height
12.4 Inches
UPC
053514040543
