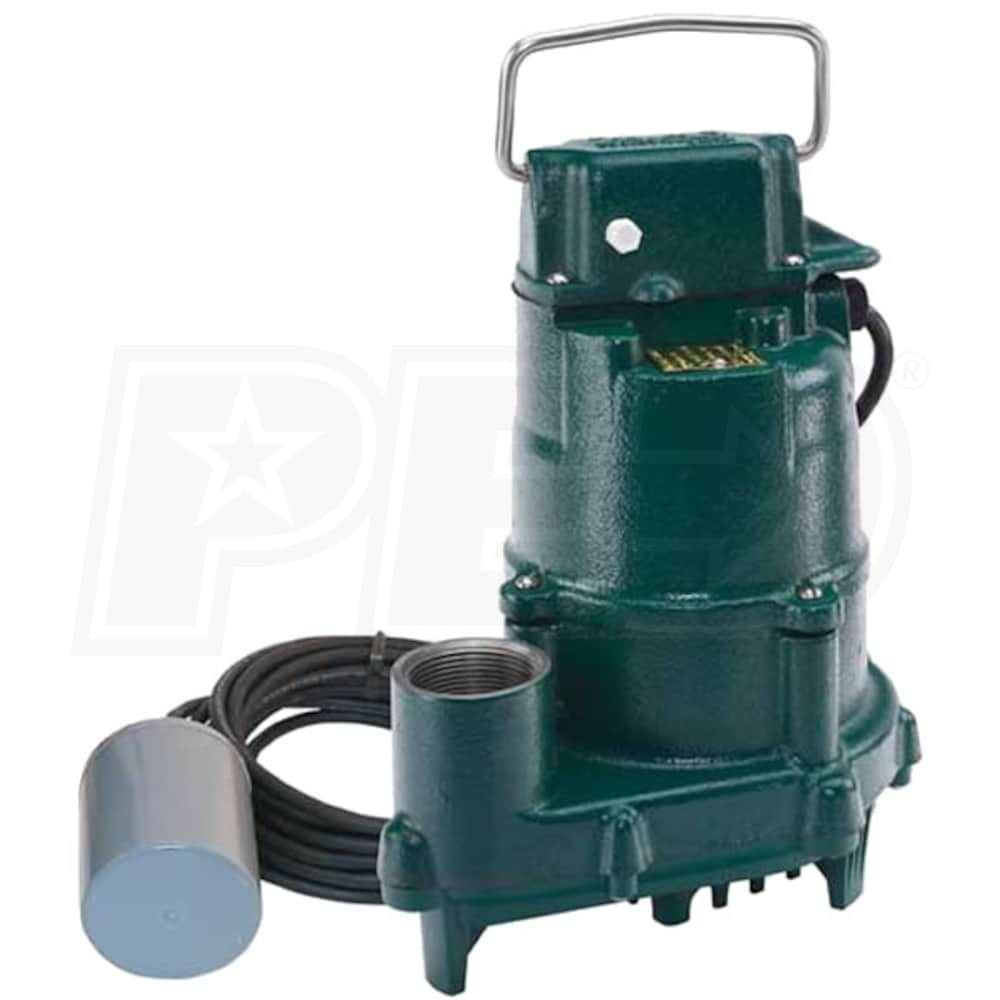

Zoeller BN151-0005 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump w/ 20' Variable Level Float Switch
Zoeller BN151-0005 - 1/3 HP High Head Dose-Mate Cast Iron Effluent Pump w/ 20' Variable Level Float Switch
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2940
Gallons
Switch Type
Style
Effluent
GPH
2940 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Zoeller Dose-Mate High-Head 150 Series Submersible Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- 30-Feet Shut-off Head
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, 1/3 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Variable Level Tether Float Switch w/ 20' Cord
- Enough cord for reliable operation in septic systems
- Cast Iron Construction w/ Powder Coated Epoxy Finish
- Assures maximum protection for extended pump life
- 1-1/2" Discharge
- Makes replacing an exisiting pump an easy task
- Engineered Thermoplastic Base & Vortex Impeller
- Non-clogging, can pass up to 1/2" spherical solids
- No screen to interfere with flowing debris
- Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Ground Plug
- Same length as float switch cord for reliable operation
- Includes 1-1/2" x 2" PVC Adapter Fitting
- *Note* Max Operating 130F
- 3-Year Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2940
GPH @ 5 feet
2940
GPH @ 10 feet
2700
GPH @ 15 feet
2220
GPH @ 20 feet
1740
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514142070
Additional Model Numbers
151-0005, BN151
Style
GPH
2940
Gallons
Switch Type
Style
Effluent
GPH
2940 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Zoeller Dose-Mate High-Head 150 Series Submersible Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- 30-Feet Shut-off Head
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, 1/3 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Variable Level Tether Float Switch w/ 20' Cord
- Enough cord for reliable operation in septic systems
- Cast Iron Construction w/ Powder Coated Epoxy Finish
- Assures maximum protection for extended pump life
- 1-1/2" Discharge
- Makes replacing an exisiting pump an easy task
- Engineered Thermoplastic Base & Vortex Impeller
- Non-clogging, can pass up to 1/2" spherical solids
- No screen to interfere with flowing debris
- Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
- Provides smooth, quiet operation & lower operating temperatures
- 20' UL Listed Power Cord w/ 3-Prong Ground Plug
- Same length as float switch cord for reliable operation
- Includes 1-1/2" x 2" PVC Adapter Fitting
- *Note* Max Operating 130F
- 3-Year Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2940
GPH @ 5 feet
2940
GPH @ 10 feet
2700
GPH @ 15 feet
2220
GPH @ 20 feet
1740
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514142070
Additional Model Numbers
151-0005, BN151
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2940
GPH @ 5 feet
2940
GPH @ 10 feet
2700
GPH @ 15 feet
2220
GPH @ 20 feet
1740
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
33 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514142070
Additional Model Numbers
151-0005, BN151
