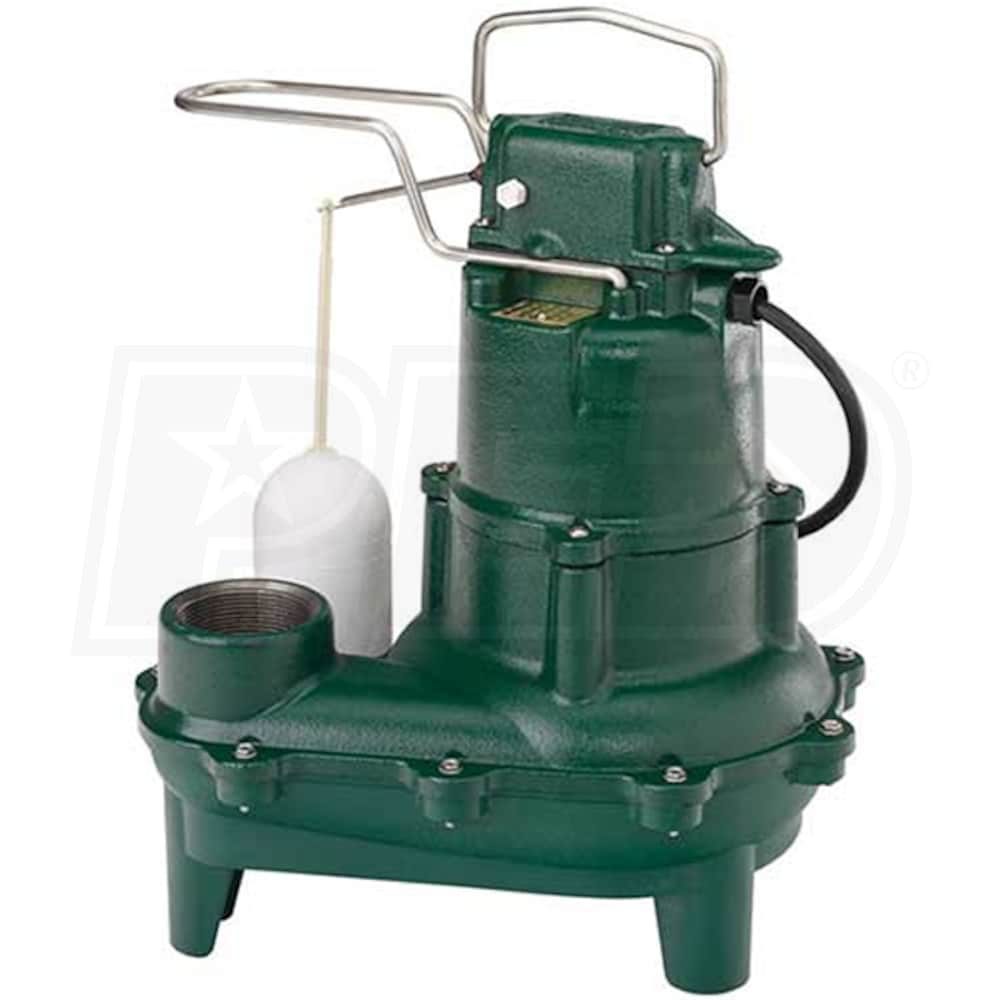

Zoeller D264-0003 - 4/10 HP Cast Iron Sewage Pump (2") w/ Vertical Float (230V)
Model: 264-0003
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$417.75
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Cord Length
Direct Dollars
Earn up to 10% back in Direct Dollars
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
5400
Gallons
Switch Type
Vertical Float Switch
Style
Sewage Pump
GPH
5400 Gallons
Switch Type
Vertical
Features
Features
  • 230V Automatic Submersible Sewage/Ejector Pump
  • Ideal for average sewage removal
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Offers years of reliable, trouble-free operation
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 4/10 HP Thermally Protected Motor (230V)
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable Of Passing 2" Spherical Solids
  • Designed for sewage or semi-solid water removal
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • Not Rec'd For Installations w/ Over 15 ft. Total Dynamic Head
  • 3-Year Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float

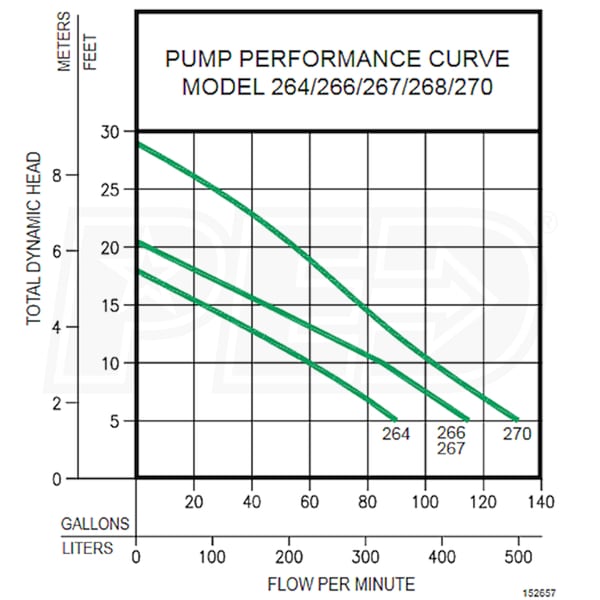

GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
3600
GPH @ 15 feet
1380
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12.5 Inches
Float Off
4.5 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
34.5 Pounds
Consumer Warranty
3 Years
Product Length
11.36 Inches
Product Width
11.22 Inches
Product Height
14.75 Inches
UPC
053514071707
