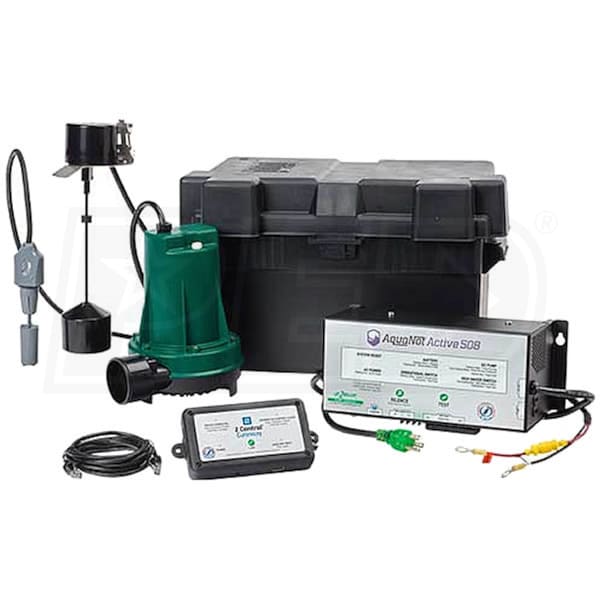

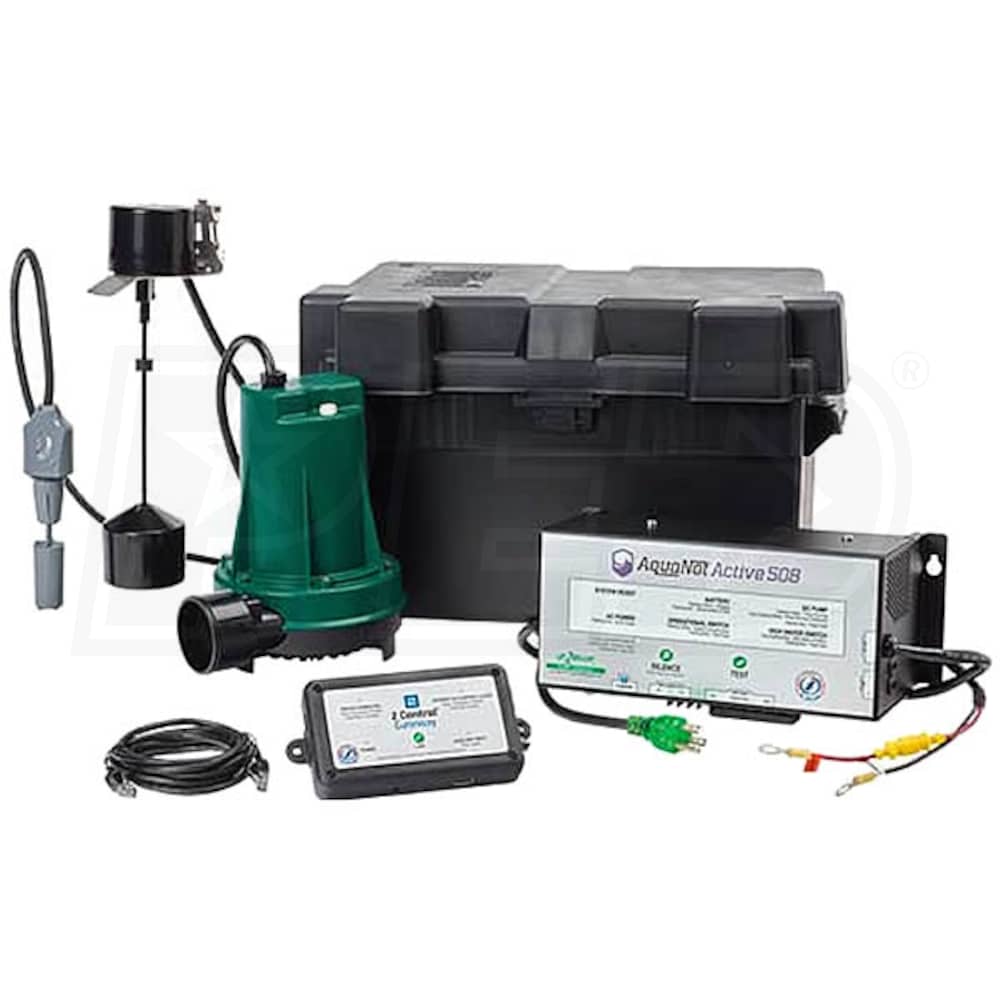

Zoeller 508-0008 Aquanot Active Back Up Pump System (10A Charger) w/ WiFi (1800 GPH @ 10')
Model: 508-0008
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2340
Gallons
Switch Type
Style
Back-up
GPH
2340 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Zoeller Aquanot Active Battery Backup Sump Pump System
- Premium internet-connected system with Z Control® Technology
- Z Control® Gateway w/ Wi-Fi* or Wired Connection
- Allows for email /text / push notifications of alarms and alerts
- Plus remote access and control, and online configurability
- Z Control® Cloud - Test, Run, Silence, Reset & More From Your Mobile Device
- Mobile App allows for total piece of mind - *Zero Monthly Monitoring Fees*
- Aquanot® Active 508 DC Controller
- Self-testing diagnostics that allow gateway/cloud to keep you protected
- Built-In Alerts For High-Water, Pump Cycled, Faults & Issues
- Easily silence/reset alarm with the push of a button
- 10-Amp Automatic Battery Charging System
- Self-contained design w/ Battery burnout & overcharge protection
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Aluminum seal pocket and cooling plate for extended operation
- Quick-disconnect discharge & pump legs make installation a breeze
- Vertical Float Switch (Main ) & Vertical Reed Sensor (High Water/Backup Run)
- Compact, low-voltage design for reliable operation
- Aux. Contact (Dialers & Home Security Systems)
- For connection to home security systems and auto dialers
- Furnished With All Required Fittings
- Corrosion-Resistant battery box (Fits Group 27, 29 or 31 batteries)
- Heavy duty check valve adaptable to 1-1/4" or 1-1/2" pipe
- BATTERY & PRIMARY PUMP SOLD SEPARATELY
- *Requires an internet connection and wireless router (Not Included)
- 5 Year Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float

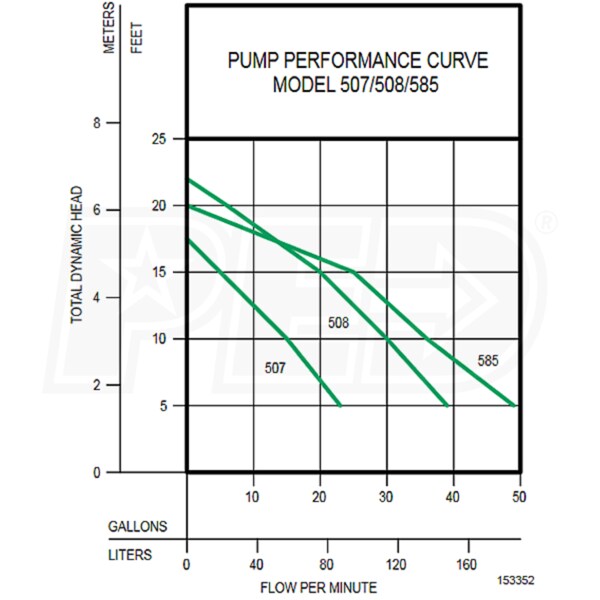

GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Remote Monitoring
Yes
Accessories
Wi-Fi enabled
Yes
Overview
Assembly Required
Yes
Consumer Warranty
5 Years
UPC
053514380519
Style
GPH
2340
Gallons
Switch Type
Style
Back-up
GPH
2340 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Zoeller Aquanot Active Battery Backup Sump Pump System
- Premium internet-connected system with Z Control® Technology
- Z Control® Gateway w/ Wi-Fi* or Wired Connection
- Allows for email /text / push notifications of alarms and alerts
- Plus remote access and control, and online configurability
- Z Control® Cloud - Test, Run, Silence, Reset & More From Your Mobile Device
- Mobile App allows for total piece of mind - *Zero Monthly Monitoring Fees*
- Aquanot® Active 508 DC Controller
- Self-testing diagnostics that allow gateway/cloud to keep you protected
- Built-In Alerts For High-Water, Pump Cycled, Faults & Issues
- Easily silence/reset alarm with the push of a button
- 10-Amp Automatic Battery Charging System
- Self-contained design w/ Battery burnout & overcharge protection
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Aluminum seal pocket and cooling plate for extended operation
- Quick-disconnect discharge & pump legs make installation a breeze
- Vertical Float Switch (Main ) & Vertical Reed Sensor (High Water/Backup Run)
- Compact, low-voltage design for reliable operation
- Aux. Contact (Dialers & Home Security Systems)
- For connection to home security systems and auto dialers
- Furnished With All Required Fittings
- Corrosion-Resistant battery box (Fits Group 27, 29 or 31 batteries)
- Heavy duty check valve adaptable to 1-1/4" or 1-1/2" pipe
- BATTERY & PRIMARY PUMP SOLD SEPARATELY
- *Requires an internet connection and wireless router (Not Included)
- 5 Year Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Remote Monitoring
Yes
Accessories
Wi-Fi enabled
Yes
Overview
Assembly Required
Yes
Consumer Warranty
5 Years
UPC
053514380519
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
360
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Remote Monitoring
Yes
Accessories
Wi-Fi enabled
Yes
Overview
Assembly Required
Yes
Consumer Warranty
5 Years
UPC
053514380519
