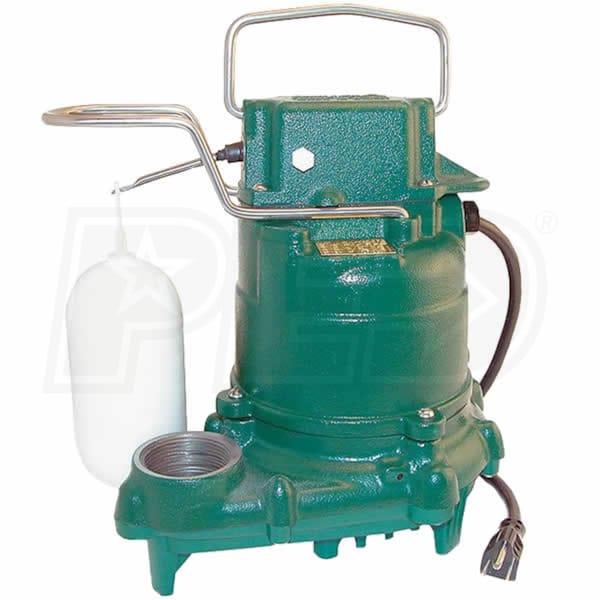

Zoeller M53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch w/ 35' Cord

Zoeller M53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch w/ 35' Cord
Model: 53-0018
$209.25
Only 2 In-Stock
Ships Friday, Jul 20th
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$209.25Buy Now
No Sales Tax* (Except IL)$209.25Visit Site
Only 2 In-Stock
Ships Friday, Jul 20th
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Sump Pump
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Offers years of reliable, trouble-free operation
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
35 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
UPC
053514023720
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Sump Pump
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing
  • Designed for rapid heat dissipation and extended life
  • Engineered Thermoplastic Base
  • Offers years of reliable, trouble-free operation
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
35 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
UPC
053514023720
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
35 Feet
Oil Free Motor
No
Starting Amps
25.9
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
UPC
053514023720
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Why does my Zoeller 53 pump make noise but not pump water out?
William
from Connecticut
March 15, 2017
Answer
This sounds like it might be a classic symptom of air-lock. The "weep" hole as it is called should always be drilled in your discharge pipe to prevent an air-lock. This is true in sump and sewage applications. Air locking on a sump pump happens when there is air between the pump and the check valve of the discharge line. The trapped air prevents the impeller from drawing in enough fluid to open the check valve to allow discharge. The weight of the fluid on the topside of the check valve keeps it closed.

The problem is often noticed after the initial use when the pit has had time to dry out during a dry spell. When it gets water in the pit again, the air-lock condition shows up. The pump runs due to the float switch being raised, but can't eject the water because of the air-lock condition. I suggest that you drill a 1/8" or 3/16" hole in your PVC discharge pipe, approximately 4" above your pump's discharge port and well within the inside of the basin. Drill the hole at a 45-degree†angle so the hole is pointing toward the bottom of your sump basin. Water will be discharged from the weep hole when your pump operates. This is completely normal.

A typical installation will have the check valve positioned about 2-3 feet above your sump basin cover. If the check valve is screwed directly into the sump pump's discharge port, there is really no place to drill the weep hole, but also less of a chance of air-lock due to the positioning of the check valve. The only problem with installing the check valve directly into the pump's discharge port is that it takes more power and effort for the pump to start due to the added weight of all the water sitting above that check valve, especially if your head is 8 feet or higher. When the check valve is installed above the basin cover, it reduces that starting power and also makes for a much easier method of replacing or performing maintenance on your pump and system. If this was done and you are still having problems, I would suggest calling Zoeller tech support at 800-928-7867 for troubleshooting assistance.
