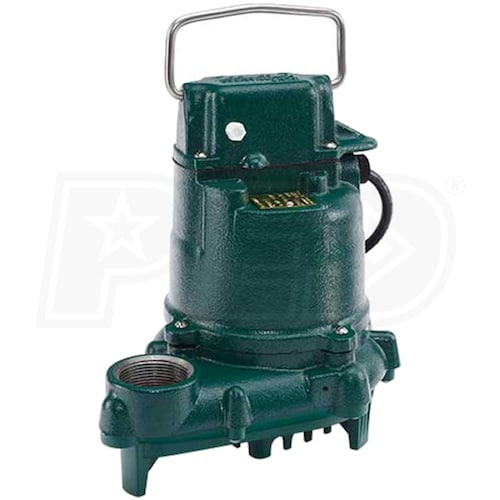

Zoeller E53-0070 - 3/10 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (25' Cord) (230V)

Model:

53-0070

Write a Review
$242.25
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Zoeller E53-0070 - 3/10 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (25' Cord) (230V)
Zoeller E53-0070 - 3/10 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (25' Cord) (230V)
Model: 53-0070
$242.25
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

2680 Gallons

Switch Type

None



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 230V ***NON-AUTOMATIC - Requires Float Switch***
  • Submersible Cast Iron Sump Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 3/10 HP Thermally Protected, Permanent Split Capacitor Motor (230V
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • 25' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

53-0070
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.8
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch

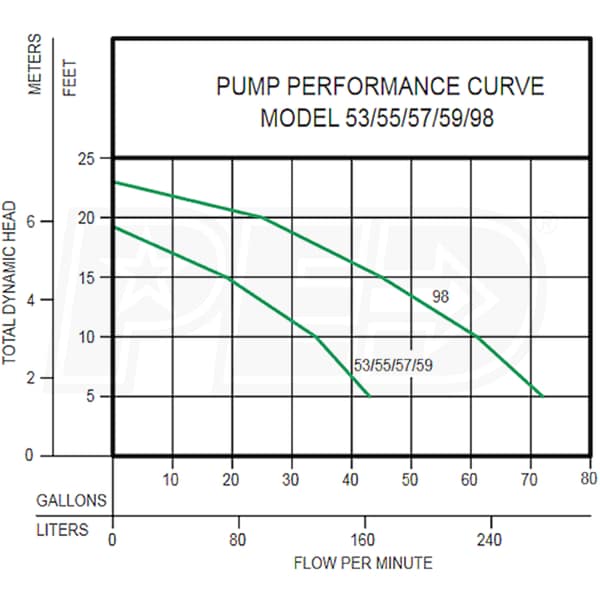

GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.3 hp
Overview
Weight
20 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514176419
