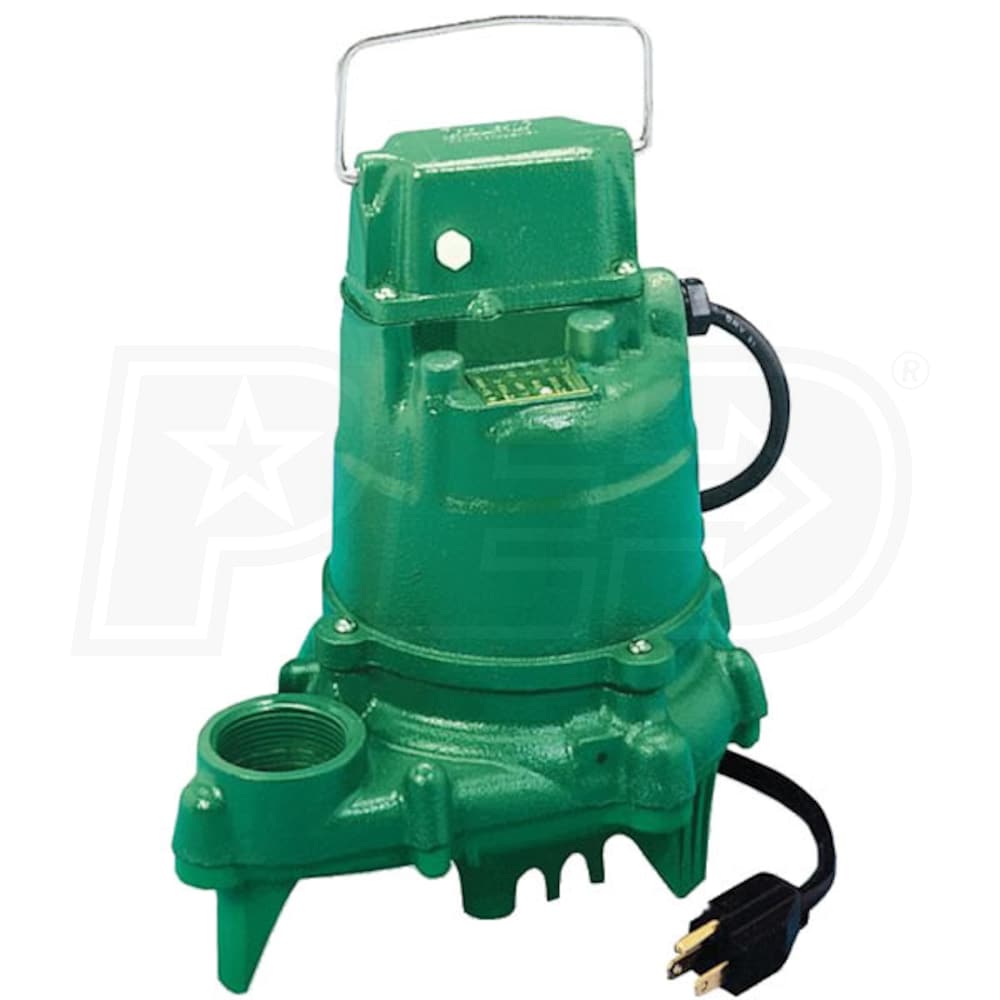

Zoeller N57 - 1/3 HP All Cast Iron Submersible Sump Pump (Non-Automatic)
Model: 57-0002
+
Share This Product
-
Product Description
-
7Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
2680
Gallons
Switch Type
None
Style
Primary
GPH
2680 Gallons
Switch Type
None
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ***NON-AUTOMATIC - Requires Float Switch***
- Model 57 All Cast Iron Switch Case, Motor, Pump Housing & Base
- Heavy duty design for maximum heat dissipation and extended life
- 3/10 HP Shaded Pole Motor (1550 RPM)
- Energy efficient, only draws less than 10 Amps
- Thermally Protected Motor w/ Automatic Reset
- Oil-filled and hermetically sealed to prevent overheating
- 1-1/2" NPT Discharge & Non-Clogging Cast Iron Vortex Impeller
- Screenless, bottom intake designed to pass solids up to 1/2"
- U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
- Provides durability, less heat for extended protection
- Neoprene "O" Ring
- Keeps a watertight seal between motor and pump housing
- 15' Power Cord
- UL Listed 3-wire cord w/ 3-prong plug
- Industry Leading Quality Control - Pressure Tested After Assembly
- Entire unit is pressure tested after assembly
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024062
Style

GPH
2680
Gallons
Switch Type
None
Style
Primary
GPH
2680 Gallons
Switch Type
None
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ***NON-AUTOMATIC - Requires Float Switch***
- Model 57 All Cast Iron Switch Case, Motor, Pump Housing & Base
- Heavy duty design for maximum heat dissipation and extended life
- 3/10 HP Shaded Pole Motor (1550 RPM)
- Energy efficient, only draws less than 10 Amps
- Thermally Protected Motor w/ Automatic Reset
- Oil-filled and hermetically sealed to prevent overheating
- 1-1/2" NPT Discharge & Non-Clogging Cast Iron Vortex Impeller
- Screenless, bottom intake designed to pass solids up to 1/2"
- U/L Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
- Provides durability, less heat for extended protection
- Neoprene "O" Ring
- Keeps a watertight seal between motor and pump housing
- 15' Power Cord
- UL Listed 3-wire cord w/ 3-prong plug
- Industry Leading Quality Control - Pressure Tested After Assembly
- Entire unit is pressure tested after assembly
- 3-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024062
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514024062
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
I currently have the N57 and was wanting to get a backup in case it died I have one on hand ready to go. What is the difference between this model and the N53?
Ben
from Iowa
April 28, 2016
Answer
The 57 series pumps are ALL CAST IRON Construction while the 53 series pumps include a thermoplastic base and impeller. All functions and specs are the same.
If you have any other questions, please let me know.
If you have any other questions, please let me know.
Was this answer helpful?
Yes

0
No

1
