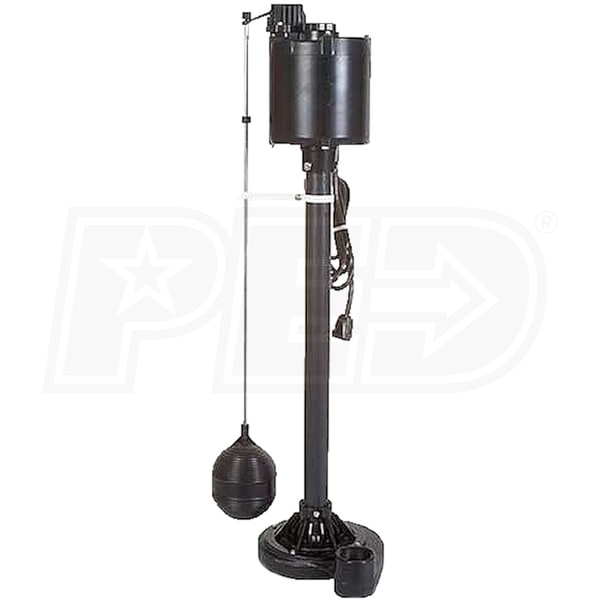

Zoeller M82 - 1/3 HP Cast Iron Pedestal Sump Pump w/ Vertical Float Switch
Model: 82-0001
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews(6)
Write a Review
Ask a Question
$218.95
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 6
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller "Old Faithful: Cast Iron Pedestal Pump
  • Traditional design for a reliable basement sump pump
  • Energy Efficient 1/3 HP SP Motor - Only Uses 4-Amps
  • Air-cooled, Thermal overload protection w/ Auto reset
  • Cast Iron Pump Housing & Base Construction w/ PVC Column
  • Minimizes corrosion in high mineral content water
  • Adjustable, 12" Cycle Vertical Float Switch (Factory Set @ 9")
  • Max "On" @ 16" and Min. Off @ 4"; Easily set your perfect cycle
  • Non-Clogging Vortex Plastic Impeller
  • Top intake design, no screens to clean or replace, passes lint
  • 1-1/2" NPT Female Discharge
  • Compatible with existing discharge line for easy installation
  • Perm. Lubricated Upper Sleeve Bearing w/ Lower Bronze Bushing
  • Quiet, smoother operation for extended pump life
  • 7.5' Power Cord
  • UL Listed 3-wire cord and plug
  • * Note* Indoor Use Only, Non-Submersible
  • 1-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.7
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2400
GPH @ 15 feet
1600
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adj. 16 Max.
Float Off
Adj. 4 Min.
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
1 Year
UPC
053514024680
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller "Old Faithful: Cast Iron Pedestal Pump
  • Traditional design for a reliable basement sump pump
  • Energy Efficient 1/3 HP SP Motor - Only Uses 4-Amps
  • Air-cooled, Thermal overload protection w/ Auto reset
  • Cast Iron Pump Housing & Base Construction w/ PVC Column
  • Minimizes corrosion in high mineral content water
  • Adjustable, 12" Cycle Vertical Float Switch (Factory Set @ 9")
  • Max "On" @ 16" and Min. Off @ 4"; Easily set your perfect cycle
  • Non-Clogging Vortex Plastic Impeller
  • Top intake design, no screens to clean or replace, passes lint
  • 1-1/2" NPT Female Discharge
  • Compatible with existing discharge line for easy installation
  • Perm. Lubricated Upper Sleeve Bearing w/ Lower Bronze Bushing
  • Quiet, smoother operation for extended pump life
  • 7.5' Power Cord
  • UL Listed 3-wire cord and plug
  • * Note* Indoor Use Only, Non-Submersible
  • 1-Year Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.7
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2400
GPH @ 15 feet
1600
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adj. 16 Max.
Float Off
Adj. 4 Min.
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
1 Year
UPC
053514024680
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.7
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2400
GPH @ 15 feet
1600
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adj. 16 Max.
Float Off
Adj. 4 Min.
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
1 Year
UPC
053514024680
