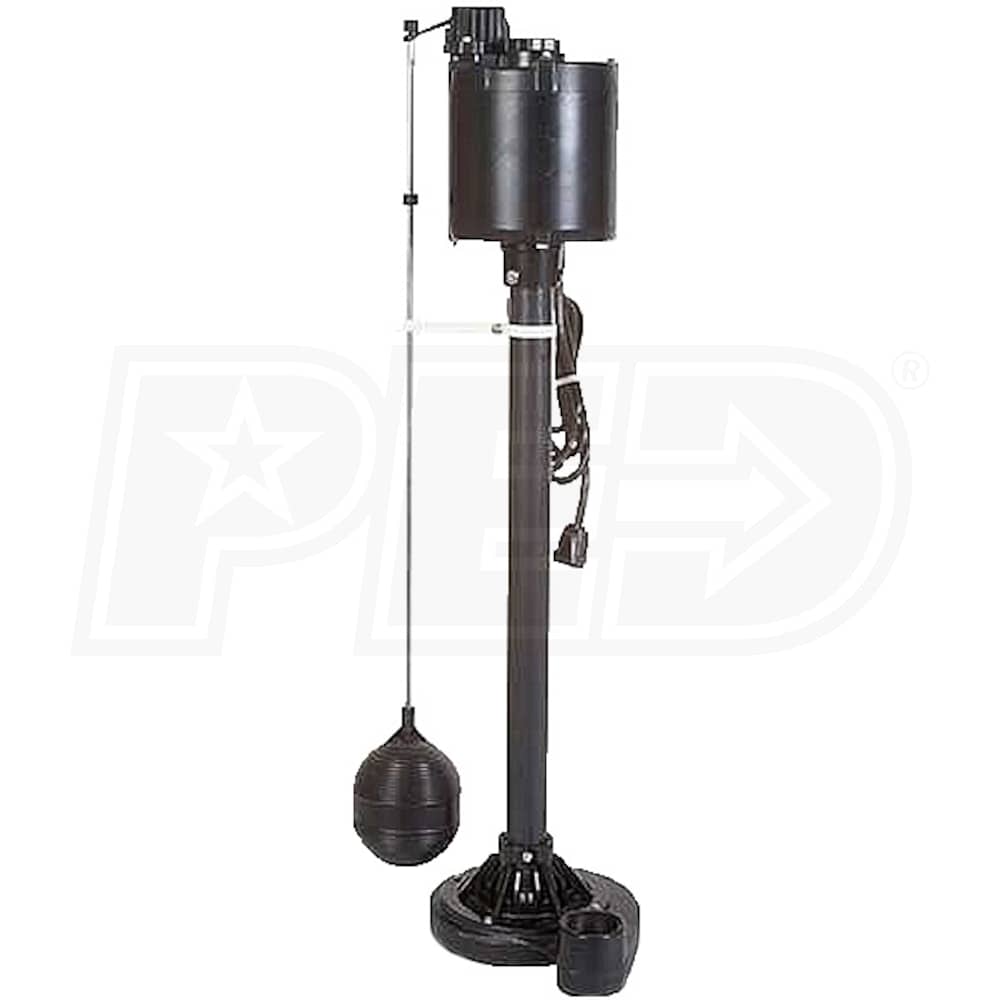

Zoeller M84 - 1/2 HP Cast Iron Pedestal Sump Pump w/ Vertical Float Switch

Model:

84-0001

Recommended
Write a Review
$252.00
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601

Zoeller M84 - 1/2 HP Cast Iron Pedestal Sump Pump w/ Vertical Float Switch
Zoeller M84 - 1/2 HP Cast Iron Pedestal Sump Pump w/ Vertical Float Switch
Model: 84-0001
$252.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3540 Gallons

Switch Type

Vertical

  • Zoeller "Old Faithful: Cast Iron Pedestal Pump
  • Traditional design for a reliable basement sump pump
  • Energy Efficient 1/2 HP SP Motor - Only Uses 7.3-Amps
  • Air-cooled, Thermal overload protection w/ Auto reset
  • Cast Iron Pump Housing & Base Construction w/ PVC Column
  • Minimizes corrosion in high mineral content water
  • Adjustable, 12" Cycle Vertical Float Switch (Factory Set @ 9")
  • Max "On" @ 16" and Min. Off @ 4"; Easily set your perfect cycle
  • Non-Clogging Vortex Plastic Impeller
  • Top intake design, no screens to clean or replace, passes lint
  • 1-1/2" NPT Female Discharge
  • Compatible with existing discharge line for easy installation
  • Perm. Lubricated Upper Sleeve Bearing w/ Lower Bronze Bushing
  • Quiet, smoother operation for extended pump life
  • 7.5' Power Cord
  • UL Listed 3-wire cord and plug
  • * Note* Indoor Use Only, Non-Submersible
  • 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

84-0001
specs product image PID-66484
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
59 Gallons
Housing Material
Cast Iron
Float Type
Vertical Float
GPH @ 0 feet
3540
GPH @ 5 feet
3540
GPH @ 10 feet
3060
GPH @ 15 feet
2280
GPH @ 20 feet
1020
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.5 hp
Overview
Weight
22.5 Pounds
Consumer Warranty
1 Year
UPC
053514127282
