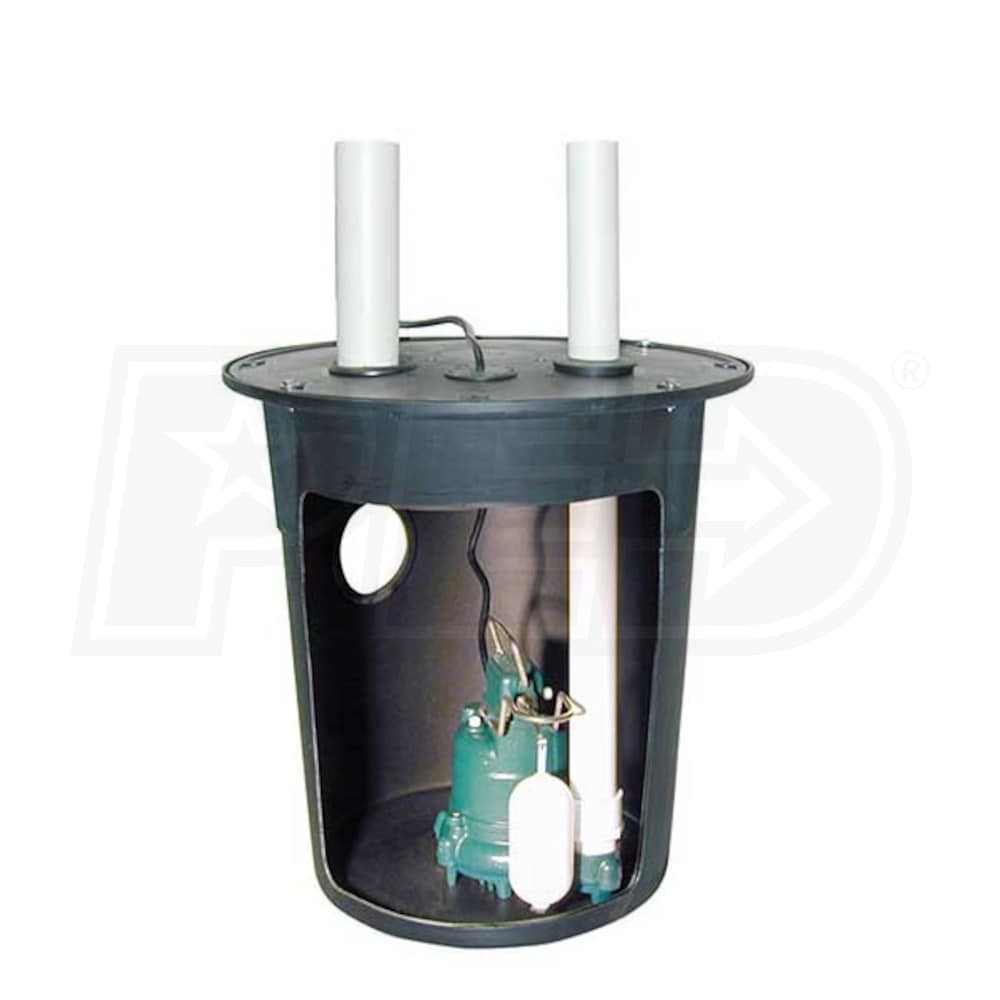

Zoeller 900-0002 - 1/3 HP Cast Iron Preassembled Sump Pump System (18" X 22" Basin)

Zoeller 900-0002 - 1/3 HP Cast Iron Preassembled Sump Pump System (18" X 22" Basin)
Our Price
Compare Prices
Shipping Info
Model: 900-0002
$316.80

Only 3 In-Stock
Ships Friday, Jul 19th
Shipping Crate Icon
Free Shipping
In-Stock Free Shipping$316.80Buy Now
$316.80Visit Site
Only 3 In-Stock
Ships Friday, Jul 19th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller 900 Series Preassembled Standard Sump Pump System
  • Job ready for a fast and easy installation
  • No Assembly Required
  • Drop it in the hole-and-go!
  • Automatic Submersible M53 Sump Pump w/ Vertical Float Switch
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing w/ Engineered Thermoplastic Base
  • Designed for rapid heat dissipation and extended life
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design - Capable Of Passing 1/2" Dim Solids
  • No screen to interfere with flowing debris
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 18" x 22" Polyethylene Basin w/ 4" Inlet
  • Pump switch is installed 180° from inlet
  • Discharge pipe is plumbed with a predrilled 3/16" vent hole
  • Polyethylene Cover w/ 2" Vent & 1-1/2" Discharge
  • Electric cord seal in cover ease of use
  • Includes cover seal and bolts
  • 3-Year Consumer Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Float On
7.25 Inches
Float Off
3 Inches
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Assembly Required
No
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
Style
Primary Sumps Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller 900 Series Preassembled Standard Sump Pump System
  • Job ready for a fast and easy installation
  • No Assembly Required
  • Drop it in the hole-and-go!
  • Automatic Submersible M53 Sump Pump w/ Vertical Float Switch
  • Ideal for average water removal
  • Cast Iron Switch Case, Motor & Pump Housing w/ Engineered Thermoplastic Base
  • Designed for rapid heat dissipation and extended life
  • Thermally Protected Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Clog-Resistant Design - Capable Of Passing 1/2" Dim Solids
  • No screen to interfere with flowing debris
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 18" x 22" Polyethylene Basin w/ 4" Inlet
  • Pump switch is installed 180° from inlet
  • Discharge pipe is plumbed with a predrilled 3/16" vent hole
  • Polyethylene Cover w/ 2" Vent & 1-1/2" Discharge
  • Electric cord seal in cover ease of use
  • Includes cover seal and bolts
  • 3-Year Consumer Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Float On
7.25 Inches
Float Off
3 Inches
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Assembly Required
No
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Float On
7.25 Inches
Float Off
3 Inches
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Assembly Required
No
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
