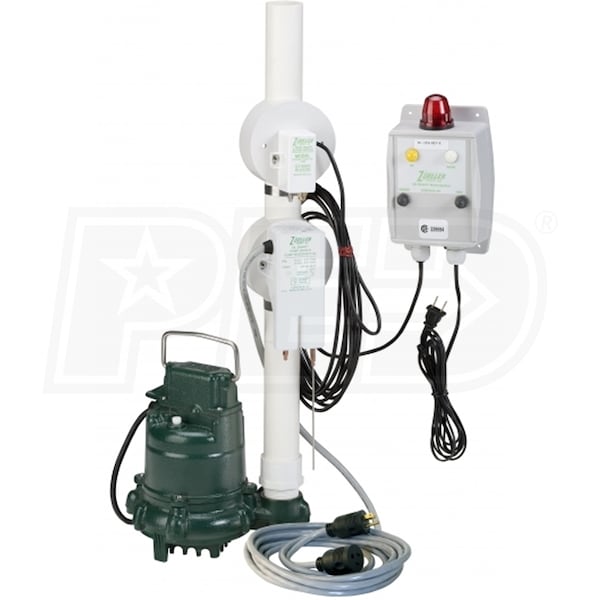

Zoeller 940-0012 4/10-HP Oil Guard® Elevator Pump w/ Smart Switch & Alarm System

Model:

940-0012

Write A Review
$2,179.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Oct 10th
Shipping to60601

Zoeller 940-0012  4/10-HP Oil Guard® Elevator Pump w/ Smart Switch & Alarm System
Zoeller 940-0012 4/10-HP Oil Guard® Elevator Pump w/ Smart Switch & Alarm System
Model: 940-0012
$2,179.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4140 Gallons

Switch Type

Electronic



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Zoeller N152 w/ Oil Smart® Switch and Alarm System
  • Helps protect equipment & environment from dispersion of oil
  • Applications such as vaults, manufacturing and elevators
  • Oil Smart® Switch & Alarm Panel w/ NEMA-4X
  • 20A Internal relay; Audible, light alarms and dry contacts
  • Alarm test and silence switches & 20' piggyback power cord
  • UL508 Approved Switch w/ 304 Stainless Steel Probes
  • Preset On/Off points differentiate oil and water
  • Alerts high water and oil detected conditions
  • Zoeller N152 4/10 HP Dose-Mate Submersible Effluent Pump
  • Cast iron construction w/ powder coated epoxy finish
  • No rust or corrosion with all stainless steel fittings
  • Thermally Protected, 4/10 HP Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • 1-1/2" Discharge & Engineered Thermoplastic Vortex Impeller
  • Non-clogging, can pass up to 3/4" spherical solids
  • Carbon/Ceramic Shaft Seals & Upper Sleeve / Lower Ball Bearings
  • Provides smooth, quiet operation & lower operating temperatures
  • Tested to UL Standard UL778 and Certified to CSA Standard CSA 22.2 No. 108
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

940-0012
specs product image PID-109611
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Electronic
GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
38 Feet
Submersible
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
49 Pounds
Consumer Warranty
3 Years
Product Style
Elevator
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514329990
