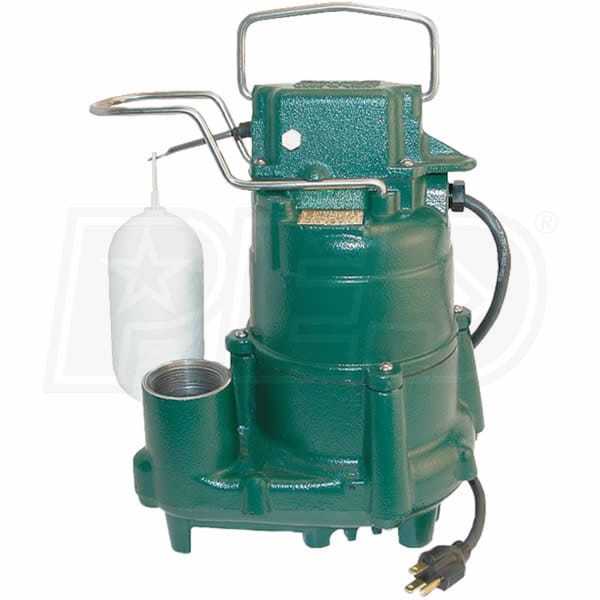

Zoeller D98 - 1/2 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch (230V)

Model:

98-0003

Write a Review
$313.50
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-7 Business Days

Zoeller D98 - 1/2 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch (230V)
Zoeller D98 - 1/2 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch (230V)
Model: 98-0003
$313.50
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

4320 Gallons

Switch Type

Vertical



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 230V Automatic Submersible Cast Iron Sump Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

98-0003
specs product image PID-51127
Base
Base Material
Cast Iron
Min Sump Basin Size
12 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

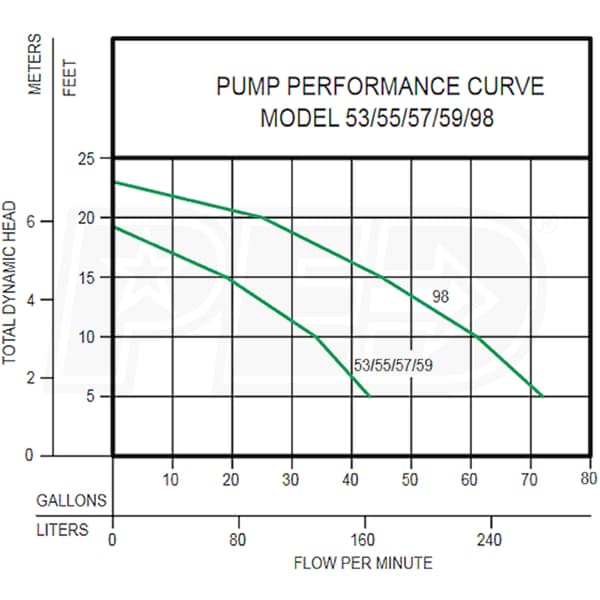

GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029487
