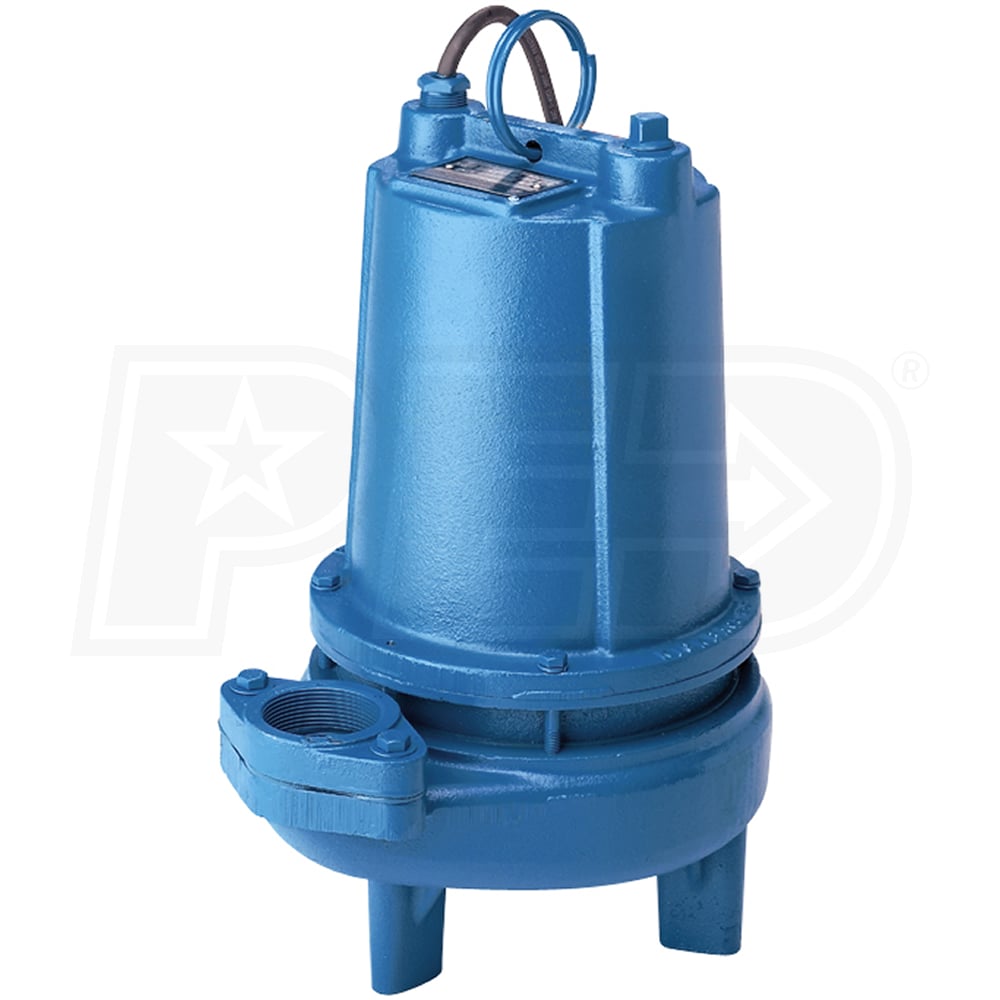

Barnes 2SEV1522L - 1-1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)

Model:

104187

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes 2SEV1522L - 1-1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)
Barnes 2SEV1522L - 1-1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)
Model: 104187
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

9480 Gallons

Switch Type

None

  • Barnes 2SEV1522L - 1-1/2 HP High-Volume Cast Iron Sewage Pump (Non-Automatic) (230V)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1-1/2 HP Permanent Split-Capacitor (PSC) Motor (230V)
  • Oil-filled, thermally protected, energy-efficient design, only draws 13.5 FLA
  • Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord - Bare Lead
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

104187
specs product image PID-80808
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
13.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
31.5
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
65 Feet
Float Type
No Switch
GPH @ 0 feet
9480
GPH @ 5 feet
9480
GPH @ 10 feet
9480
GPH @ 15 feet
9480
GPH @ 20 feet
8700
Discharge Port Size
2 Inch
Check Valve Included
No
Submersible
Yes
Engine
Horsepower
1.5 hp
Overview
Weight
95 Pounds
Consumer Warranty
2 Years
Product Length
12.63 Inches
Product Width
9.75 Inches
Product Height
19.41 Inches
