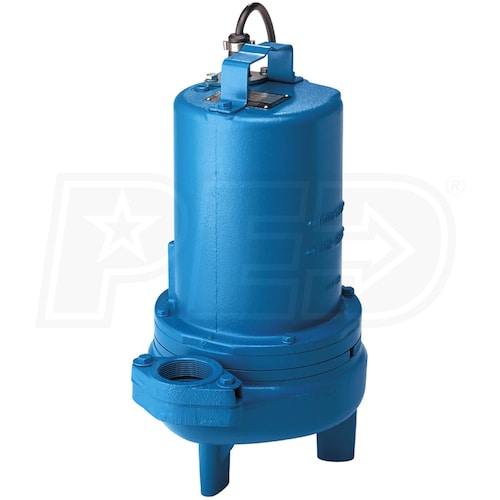

Barnes 2SEV512L - 1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic)

Barnes 2SEV512L - 1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic)
Our Price
Compare Prices
Shipping Info
Model: 104970
$938.25
Only 1 In-Stock
Ships Tuesday, Oct 23rd
Free Shipping
In-Stock Free Shipping$938.25Buy Now
$938.25Visit Site
Only 1 In-Stock
Ships Tuesday, Oct 23rd
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
None
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
None
Features
Features
  • Barnes 2SEV512L - 1/2 HP High-Volume Cast Iron Sewage Pump (Non-Automatic)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Oil-filled, thermally protected, energy-efficient design, only draws 12.6 FLA
  • Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12.6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
24.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Float Type
No Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
6000
GPH @ 15 feet
4950
GPH @ 20 feet
3900
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Product Length
12.63 Inches
Product Width
9.75 Inches
Product Height
19.41 Inches
Consumer Warranty
2 Years
Style
Sewage Pumps
GPH
6600
Gallons
Switch Type
None
Style
Sewage Pump
GPH
6600 Gallons
Switch Type
None
Features
Features
  • Barnes 2SEV512L - 1/2 HP High-Volume Cast Iron Sewage Pump (Non-Automatic)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Oil-filled, thermally protected, energy-efficient design, only draws 12.6 FLA
  • Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12.6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
24.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Float Type
No Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
6000
GPH @ 15 feet
4950
GPH @ 20 feet
3900
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Product Length
12.63 Inches
Product Width
9.75 Inches
Product Height
19.41 Inches
Consumer Warranty
2 Years
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
12.6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
24.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Float Type
No Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
6000
GPH @ 15 feet
4950
GPH @ 20 feet
3900
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Product Length
12.63 Inches
Product Width
9.75 Inches
Product Height
19.41 Inches
Consumer Warranty
2 Years
