Barnes SP33A - 1/3 HP Cast Iron Sump Pump w/ Piggyback Tether Float

Model:

112549

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes SP33A - 1/3 HP Cast Iron Sump Pump w/ Piggyback Tether Float
Barnes SP33A - 1/3 HP Cast Iron Sump Pump w/ Piggyback Tether Float
Model: 112549
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3000 Gallons

Switch Type

Piggy-Back Tether

  • Barnes SP33A - 1/3 HP Cast Iron & Thermoplastic Automatic Sump Pump
  • Rugged, heavy-duty designed for residential and light commercial applications
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • Thermoplastic Pump Body & Strainer
  • Corrosion-resistant design provides long life in sump applications
  • 1/3 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 5.8 FLA (12.5 starting amps)
  • Piggyback Tether Float Switch (Not Shown)
  • Allows for easy-servicing while providing automatic-operation in sump pits 18"+
  • 10-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 1/2"
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • 10-Foot Power Cord w/ Plug & Pressure Grommet
  • GFCI compatible design with sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

112549
specs product image PID-80778
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
Piggy-Back Tether Switch

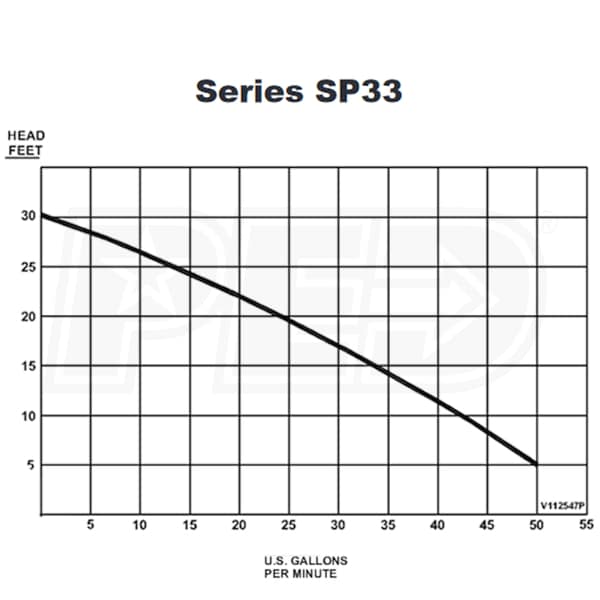

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
