Basement Watchdog Dual Vertical Float Switch & Controller

Basement Watchdog Dual Vertical Float Switch & Controller
Model: BWC1
$34.99
In-Stock
Ships Wednesday, Jul 18th
Tax-Free (Except IL)
In-Stock No Sales Tax* (Except IL)$34.99Buy Now
No Sales Tax* (Except IL)$34.99Visit Site

(as of 06:07 CST - Details) Sales Tax Extra $34.97Visit Site
In-Stock
Ships Wednesday, Jul 18th
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 26
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

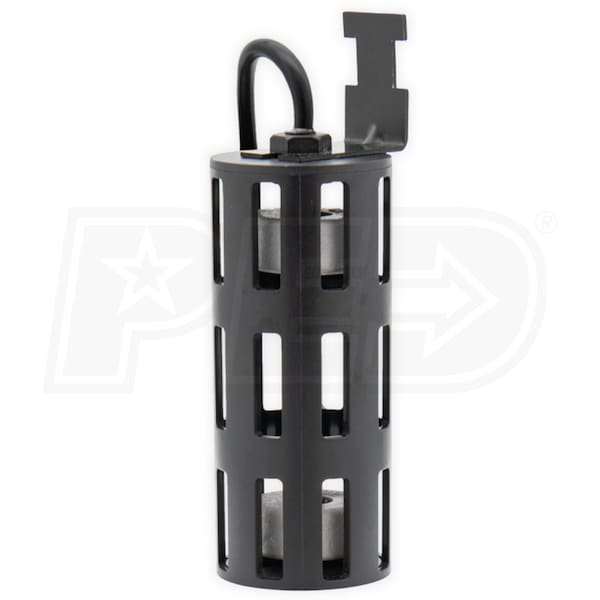

  • Dual Float Switches with Protective Cage
  • 2 floats for added redundancy
  • Won’t get “hung up”
  • Cage prevents debris from interfering with float operation

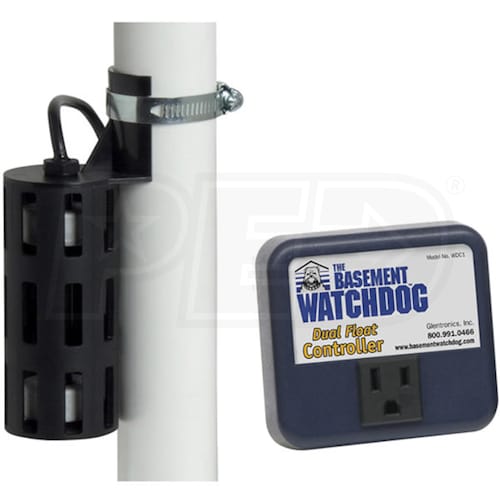

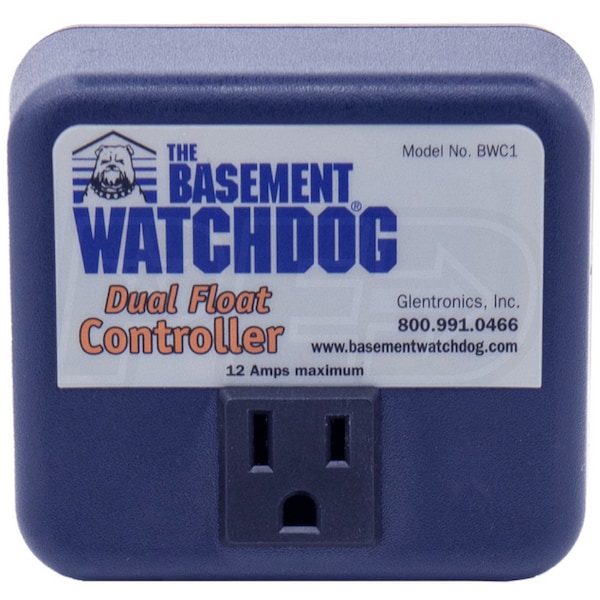

  • Dual Float Controller
  • Activates the pump when water lifts the float 1/8"
  • Runs the pump for an additional 10 seconds
  • Can be used with other sump pumps that draw up to 15 amps
  • 2-Year Warranty
Specifications
Motor
Power Cord Length
10 Feet
Rated Capacity
15
Nominal Voltage
120 Volt
Pump
Float Type
Vertical Float
Overview
Weight
2 Pounds
Consumer Warranty
2 Years
UPC
717301121562
Features
Features
  • Dual Float Switches with Protective Cage
  • 2 floats for added redundancy
  • Won’t get “hung up”
  • Cage prevents debris from interfering with float operation
  • Dual Float Controller
  • Activates the pump when water lifts the float 1/8"
  • Runs the pump for an additional 10 seconds
  • Can be used with other sump pumps that draw up to 15 amps
  • 2-Year Warranty
Specifications
Motor
Power Cord Length
10 Feet
Rated Capacity
15
Nominal Voltage
120 Volt
Pump
Float Type
Vertical Float
Overview
Weight
2 Pounds
Consumer Warranty
2 Years
UPC
717301121562
Product Specs
+
Specifications
Motor
Power Cord Length
10 Feet
Rated Capacity
15
Nominal Voltage
120 Volt
Pump
Float Type
Vertical Float
Overview
Weight
2 Pounds
Consumer Warranty
2 Years
UPC
717301121562
Reviews
(26)
+
Basement Watchdog BWC1 Reviews & Ratings
86% of Reviewers Recommend This Product
Product Q&A
(5)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
BWC1 questions: 1. Is the 15 amp limit for pump start or run amps? (Many pumps have start amps greater than 15) Will this work with a pump that has start 23 amps and run 10 amps or a pump that has start 16 amps and run 7.5 amps? 2. What is the distance between the bottom and upper float rings? For instance, if the bottom float ring fails then how much higher will the water go before the upper float ring is activated? 3. What are the dimensions of the BCW1? Thank you.
Frank E
from Colorado
September 14, 2015
Answer
Thank you for your interest in Sump Pumps Direct, Frank!
The ratings listed for the Basement Watchdog, like all other piggyback float switches that we offer, refer to the pump running amps. MOST are rated for 120V.
The water would need to raise about another 2-3/4 inches if the bottom float does not activate the pump.
The "cage" dimensions for the floats are 5"L X 2-1/8"D.
If you have any other questions, please let me know.
+
I have a utility vault that i need to control water infiltration on. I have to control the pump within a 4" vertical rise in water. What switch will work for me. The vault does not have a sump area and i cannot put one in. Thats the reason for the four inch problem. I need it to come on when there is two or three inches of water in the vault.
Chris Christianson
from Oregon
August 12, 2012
Answer
What are the dimensions of the vault? Depending on the area, the Basement Watchdog Dual Vertical Float Switch & Controller may do the job for you.

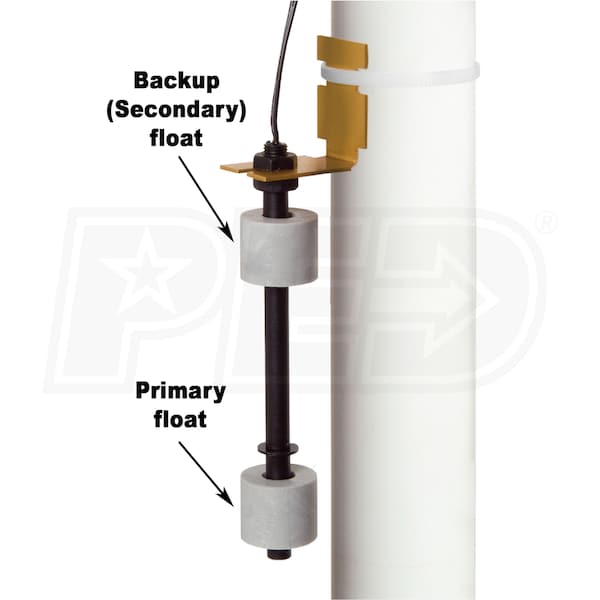

The dual float switch contains two large floating rings enclosed within a protective cage. Water will lift the bottom float by a 1⁄4", which will activate the pump. If for any reason the lower float does not activate the pump, the water will rise and activate the second switch. As the pump evacuates the water from the pit the floats will drop. The pump will run for an additional 10 seconds to extend the cycle after the lower float drops.
Note: When mounting the float switch, position the bottom of the cage at the height you want the pump to activate.

Another option might be the Pro Series Ultimate Sensor Pump Controller System, model USC3. This system has a minimum installation of 3" above the bottom of the pump However, if you have a larger area to evacuate, this system can be programed to run your pump anywhere from 5-45 seconds from the time the water level drops below the sensor. In addition, this controller controller is that it will sound an alarm when problems exist or maintenance is needed. The controller will also run the pump once a week for approximately four (4) seconds. This test will exercise the pump and help ensure the pump is working properly.
The PHCC Pro Series Ultimate Solid State Controller features a series of warnings (audible and visual) that pinpoint potential problems with the pump, sensor and power conditions. The controller will sound an alarm when power has been interrupted, when the pump has run for more than 10 minutes continuously, when the 9V battery is low or if the controller detects a weak or no signal from the sensor. The 9V battery (sold separately) runs the controller during a power outage, allowing it to sound an alarm if the circuit breaker trips, the controller is not plugged in securely, or the home’s power is interrupted.
Note: The 9V battery will only power the controller, not the pump.
+
Hi you said Runs the pump for an additional 10 seconds can this be turn off
David
from Pennsylvania
June 07, 2012
Answer
No, the timer is built into the controller and there are no adjustments available. You might take a look at the Pro Series Ultimate Sensor Pump Controller System, model USC3.
+
i have a ridgid sum pump. will this basement watchdog work for this pump
Kenneth Durante
from Illinois
April 28, 2012
Answer
The Basement Watchdog model BWC1 Dual Vertical Float Switch & Controller can be used with other manual sump pumps that draw up to 15 amps.
+
Could I use this with a sewage ejector pump?
Vince
from Illinois
January 07, 2012
Answer
The Basement Watchdog Dual Vertical Float Switch and Controller is really designed for sump pump applications for pumps up to a maximum of 1/2HP and 15 Amps.
