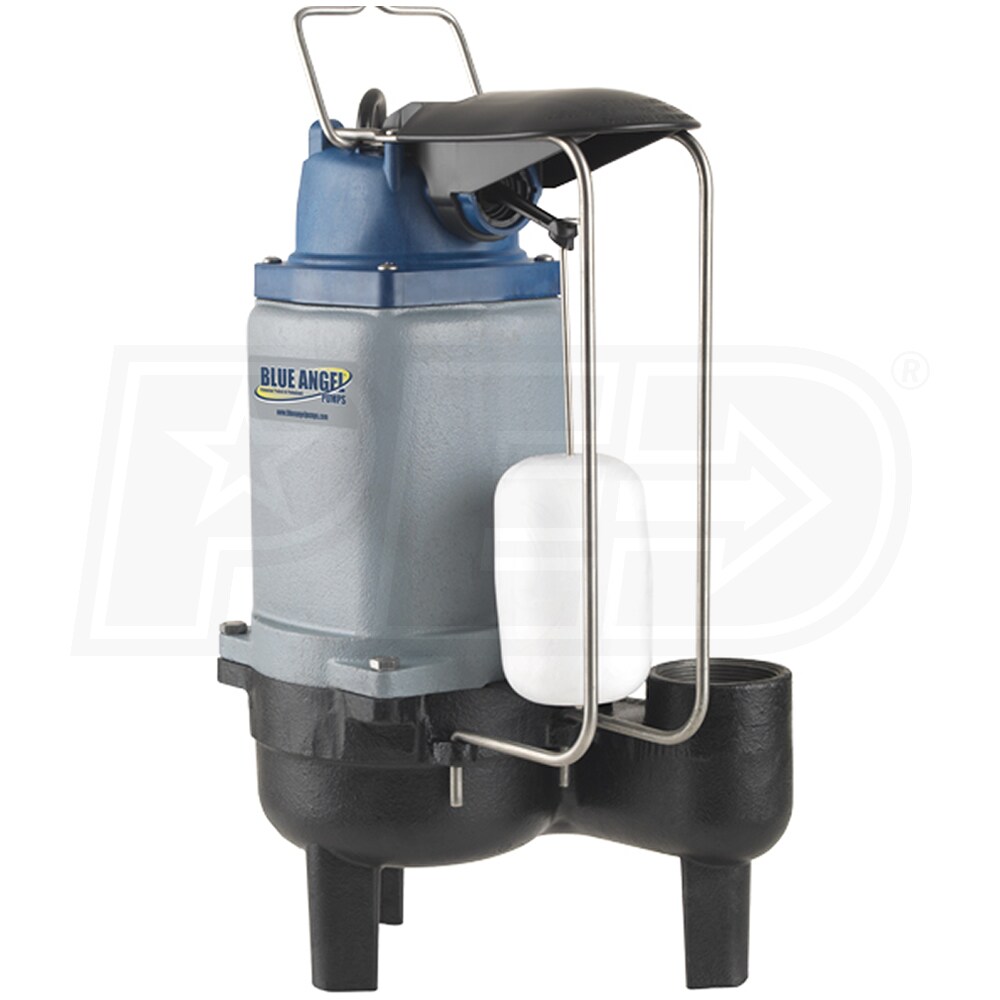

Blue Angel Pumps - 1/2 HP Cast Iron Commercial-Grade Sewage Pump (2") w/ Vertical Float Switch

Model:

F50SW

Write a Review
$347.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

Blue Angel Pumps - 1/2 HP Cast Iron Commercial-Grade Sewage Pump (2
Blue Angel Pumps - 1/2 HP Cast Iron Commercial-Grade Sewage Pump (2") w/ Vertical Float Switch
Model: F50SW
$347.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

10980 Gallons

Switch Type

Vertical

  • F50SW - Blue Angel Commercial-Grade 1/2 HP Submersible Sewage Pump
  • Assembled in the USA, with foreign and domestic parts
  • Stainless Steel Motor Shaft & Fasteners
  • Robust design for extended pump life in harsh sewage applications
  • Epoxy-Coated Cast Iron Motor Housing & Volute
  • Minimize corrosion and rust in damp, sealed sewage basins
  • 1/2 HP Permanent Split Capacitor (PSC) Motor 120V
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • Heavy-Duty Upper and Lower Ball Bearings
  • Allows for smooth and quiet operation
  • Integrated Snap-Action Vertical Float Switch
  • For use in 18" Diam. or larger sewage basins
  • Automatically turns On @ 13" and Off @ 8"
  • Glass Reinforced Thermoplastic Impeller - Max Flow 183 GPM @ 0'
  • Allows for maximum pump output in even the harshest sewage basins
  • 2-Inch NPT Discharge
  • Capable of passing 2" spherical solids
  • Simplifies installation and complies with building codes
  • Carbon / Ceramic Shaft Seal
  • Helps ensure increased durability in demanding sewage applications
  • Upper/Lower Ball Bearings
  • Allows for smooth, quiet operation and longer pump life
  • 20 ft. SJTW Power Cord w/ Neoprene Grommet
  • Oil and water resistant that won't degrade overtime
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

F50SW
specs product image PID-70515
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
19 Feet
Float Type
Vertical Float
GPH @ 0 feet
10980
GPH @ 5 feet
9900
GPH @ 10 feet
8100
GPH @ 15 feet
3600
GPH @ 20 feet
Off
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
13
Float Off
8
Manual Override
No
Max Head
18 Feet
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.556 Inches
Product Width
8.068 Inches
Product Height
17.104 Inches
UPC
040066216328
