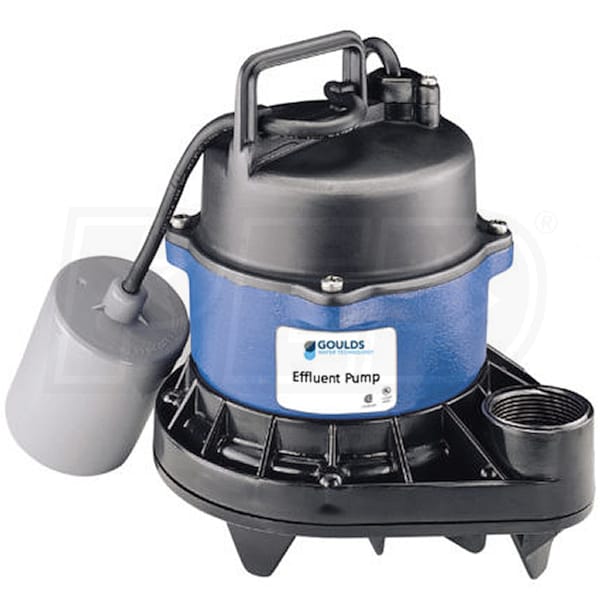

Goulds EP05 Series - 1/2 HP Cast Iron / Thermoplastic Effluent Pump w/ Piggyback Tether Float (20' Cord)

Goulds EP05 Series - 1/2 HP Cast Iron / Thermoplastic Effluent Pump w/ Piggyback Tether Float (20' Cord)
Our Price
Compare Prices
Shipping Info
Model: EP0511AC
$374.50

Only 1 In-Stock
Ships Thursday, Dec 12th
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Only 1 In-Stock
Ships Thursday, Dec 12th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
3720
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3720 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Goulds EP05 Series Submersible Effluent Pump
  • Ideal for residential greywater & septic applications
  • Sturdy Thermoplastic Casing, Cover & Base
  • Provides exceptional strength and minimizes corrosion
  • Heavy-Duty Cast Iron Housing
  • Robust design provides maximum heat dissipation
  • 1/2 HP (1550 RPM) Motor
  • Oil-filled and thermally protected w/ auto reset
  • Fully-submerged design provides efficient heat transfer
  • Thermoplastic, Semi-Open Impeller
  • Provides the ability to pass solids up to 3/4"
  • Piggyback Tether Float Switch
  • Allows for automatic operation in 15" or larger basins
  • 1-1/2" NPT Discharge
  • Will replace most pumps without any plumbing changes
  • Heavy-Duty Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • Carbon-Rotary / Ceramic-Stationary Mechanical Seal
  • Capable of running dry without damage to components
  • 20' SJTW Power Cord w/ 3-Prong Plug
  • Meets the needs of most septic applications
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
13
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3720
GPH @ 5 feet
3720
GPH @ 10 feet
3720
GPH @ 15 feet
3300
GPH @ 20 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
12
Float Off
6
Manual Override
Yes
Max Head
32 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
23 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
9.25 Inches
Product Width
7.5 Inches
Product Height
10.125 Inches
UPC
697666088956
Style
Effluent Sumps Pumps
GPH
3720
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
3720 Gallons
Switch Type
Piggy-Back Tether
Features
Features
  • Goulds EP05 Series Submersible Effluent Pump
  • Ideal for residential greywater & septic applications
  • Sturdy Thermoplastic Casing, Cover & Base
  • Provides exceptional strength and minimizes corrosion
  • Heavy-Duty Cast Iron Housing
  • Robust design provides maximum heat dissipation
  • 1/2 HP (1550 RPM) Motor
  • Oil-filled and thermally protected w/ auto reset
  • Fully-submerged design provides efficient heat transfer
  • Thermoplastic, Semi-Open Impeller
  • Provides the ability to pass solids up to 3/4"
  • Piggyback Tether Float Switch
  • Allows for automatic operation in 15" or larger basins
  • 1-1/2" NPT Discharge
  • Will replace most pumps without any plumbing changes
  • Heavy-Duty Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • Carbon-Rotary / Ceramic-Stationary Mechanical Seal
  • Capable of running dry without damage to components
  • 20' SJTW Power Cord w/ 3-Prong Plug
  • Meets the needs of most septic applications
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
13
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3720
GPH @ 5 feet
3720
GPH @ 10 feet
3720
GPH @ 15 feet
3300
GPH @ 20 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
12
Float Off
6
Manual Override
Yes
Max Head
32 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
23 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
9.25 Inches
Product Width
7.5 Inches
Product Height
10.125 Inches
UPC
697666088956
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
13
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3720
GPH @ 5 feet
3720
GPH @ 10 feet
3720
GPH @ 15 feet
3300
GPH @ 20 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
12
Float Off
6
Manual Override
Yes
Max Head
32 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
23 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
9.25 Inches
Product Width
7.5 Inches
Product Height
10.125 Inches
UPC
697666088956
