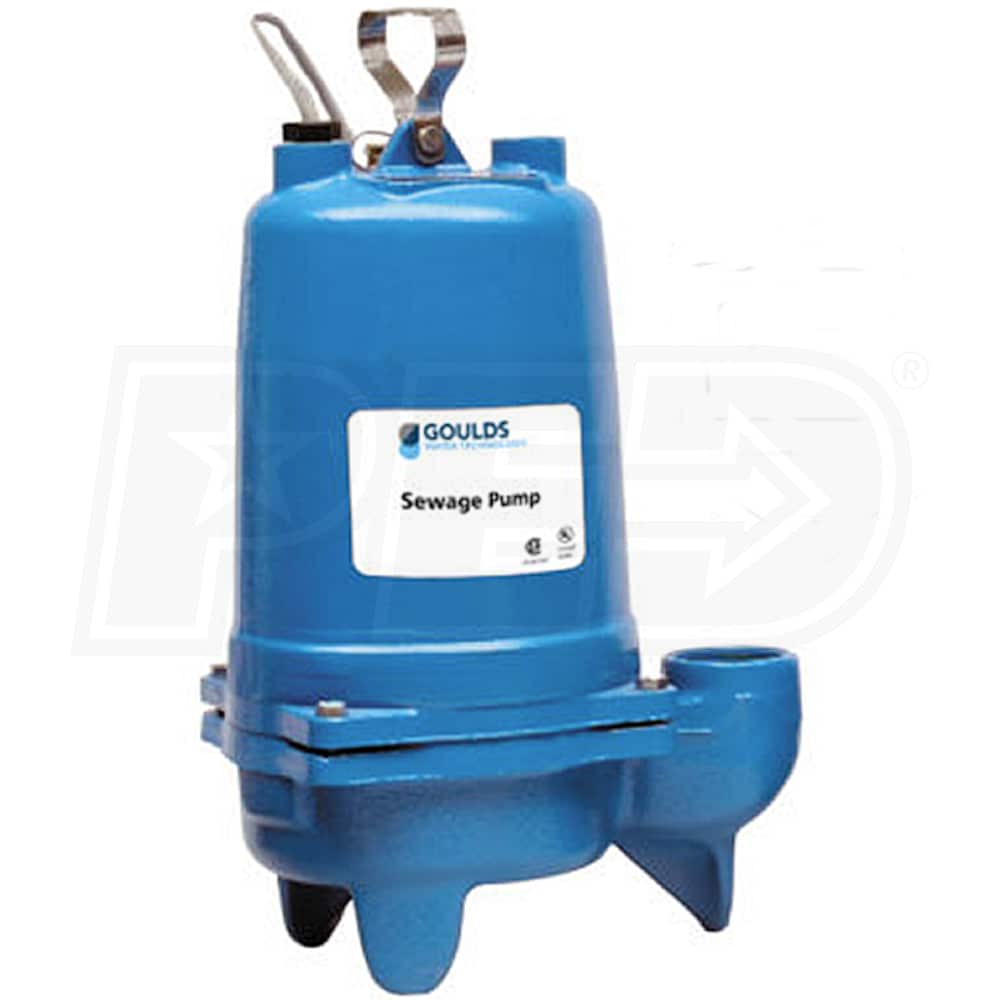

Goulds WS_B Series - 1 HP Cast Iron Sewage Pump w/ Bare Leads (Non-Automatic) (230V - 3-Phase)

Model:

WS1032B

Write A Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks

Goulds WS_B Series - 1 HP Cast Iron Sewage Pump w/ Bare Leads (Non-Automatic) (230V - 3-Phase)
Goulds WS_B Series - 1 HP Cast Iron Sewage Pump w/ Bare Leads (Non-Automatic) (230V - 3-Phase)
Model: WS1032B
Add to Cart for Price
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

10980 Gallons

Switch Type

None

  • 230-Volt 3-Phase ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Goulds WS_B Series Cast Iron Submersible Sewage Pump
  • Designed for light sewage removal in residential applications
  • Heavy-Duty Cast Iron Housing & Volute
  • Robust design provides maximum efficiency
  • Can be installed on A10-20 guide rail or base elbow rail systems
  • 1 HP Motor (230V 3-Phase)
  • Class 10 overload protection must be provided separately
  • Fully-submerged design provides efficient heat transfer
  • Cast Iron, Semi-Open Impeller
  • Dynamically balanced, non-clog design w/ pump out vanes
  • Easily handles solids up to 2"
  • Silicon Carbide Mechanical Seal
  • Provides superior abrasion resistance
  • Stainless Steel Shaft & Upper / Lower Ball Bearings
  • Helps extend the lifespan of the pump
  • Designed for Continuous Operation
  • Can be operated continuously without damage when fully submerged
  • Capable of running dry without damage to components
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot STOW Power Cord w/ Bare Leads
  • Severe duty rated, oil and water resistant
  • 1-Year Limited Warranty

Specifications

WS1032B
specs product image PID-96917
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt 3-Phase
Running Amps
5.8
Thermal Protection
No
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
10980
GPH @ 5 feet
10980
GPH @ 10 feet
10980
GPH @ 15 feet
9120
GPH @ 20 feet
7380
Discharge Port Size
2 Inch
Check Valve Included
No
Max Head
35 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Product Category
Sump Pump
Weight
81 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
12 Inches
Product Width
8.25 Inches
Product Height
19 Inches
UPC
697666010520
