Liberty Pumps 280HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (208-230V)
Liberty Pumps 280HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (208-230V)
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4080
Gallons
Switch Type
None
Style
Effluent
GPH
4080 Gallons
Switch Type
None
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 208-230V ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
- Submersible Cast Iron Sump / Effluent Pump
- For high head (up to 30') and/or high output applications
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor (208-230V)
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- Removable Stainless Steel Bottom Screen
- Keeps larger debris from damaging the pump
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

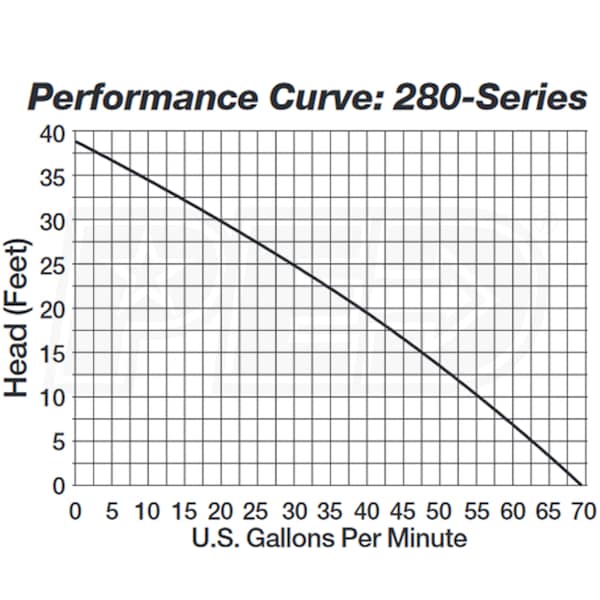

GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
38 Feet
Engine
Horsepower
.5 hp
Overview
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
UPC
671812106411
Style
GPH
4080
Gallons
Switch Type
None
Style
Effluent
GPH
4080 Gallons
Switch Type
None
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 208-230V ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
- Submersible Cast Iron Sump / Effluent Pump
- For high head (up to 30') and/or high output applications
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor (208-230V)
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- Removable Stainless Steel Bottom Screen
- Keeps larger debris from damaging the pump
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
38 Feet
Engine
Horsepower
.5 hp
Overview
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
UPC
671812106411
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
38 Feet
Engine
Horsepower
.5 hp
Overview
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
UPC
671812106411
