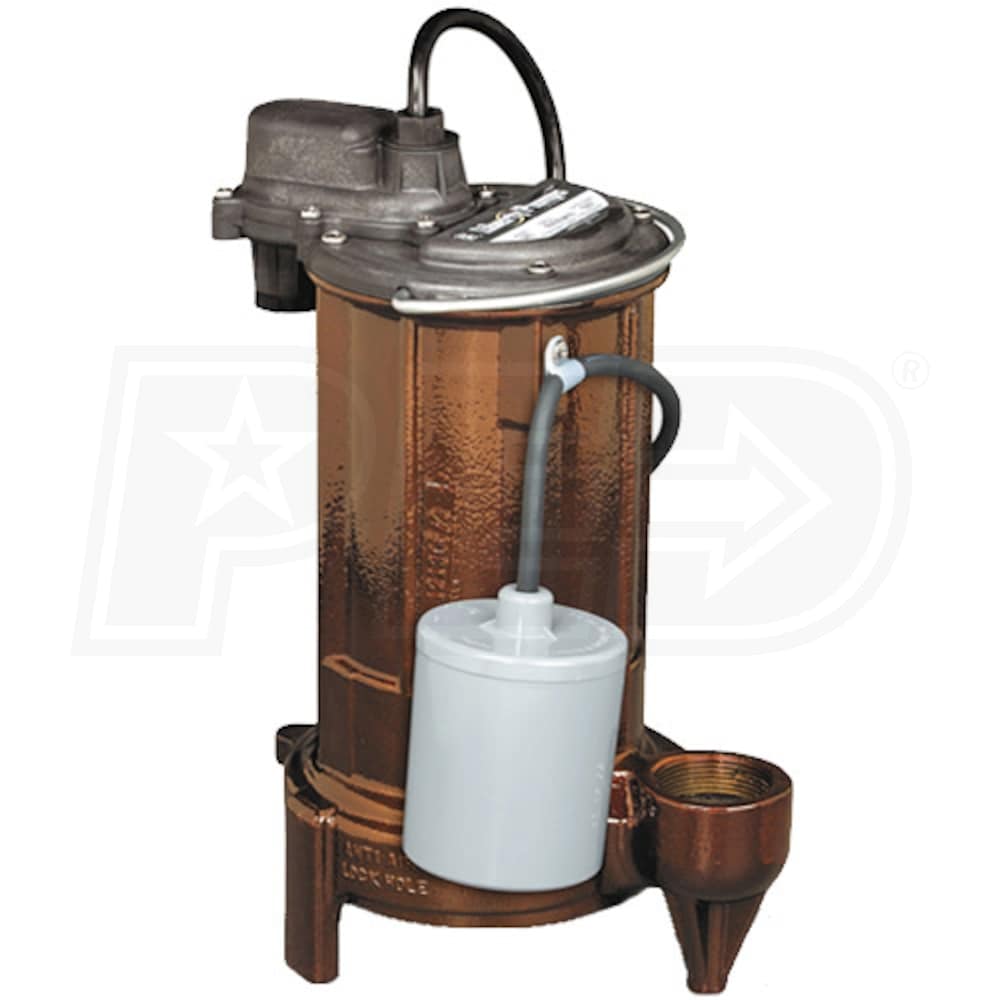

Liberty Pumps 283HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump w/ Piggyback Tether Float (208-230V)

Liberty Pumps 283HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump w/ Piggyback Tether Float (208-230V)
Model: 283HV
$268.80
Ships in 2-5 Business Days
Free Shipping &
Tax-Free (Except IL)
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
4080
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
4080 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sump Pump
  • For high head (up to 30') and/or high output applications
  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch
  • Provides automatic operation in sump pits as small as 14-inches
  • Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • Removable Stainless Steel Bottom Screen
  • Keeps larger debris from damaging the pump
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
Piggy-Back Tether Switch

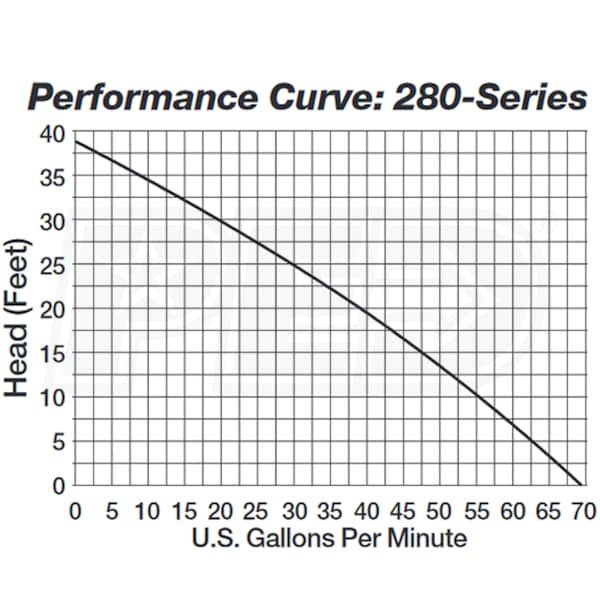

GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13.5 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
30 Pounds
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
Consumer Warranty
3 Years
UPC
671812106442
Style
Effluent Sumps Pumps
GPH
4080
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
4080 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sump Pump
  • For high head (up to 30') and/or high output applications
  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch
  • Provides automatic operation in sump pits as small as 14-inches
  • Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • Removable Stainless Steel Bottom Screen
  • Keeps larger debris from damaging the pump
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13.5 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
30 Pounds
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
Consumer Warranty
3 Years
UPC
671812106442
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13.5 Inches
Float Off
7 Inches
Manual Override
Yes
Overview
Weight
30 Pounds
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
Consumer Warranty
3 Years
UPC
671812106442
