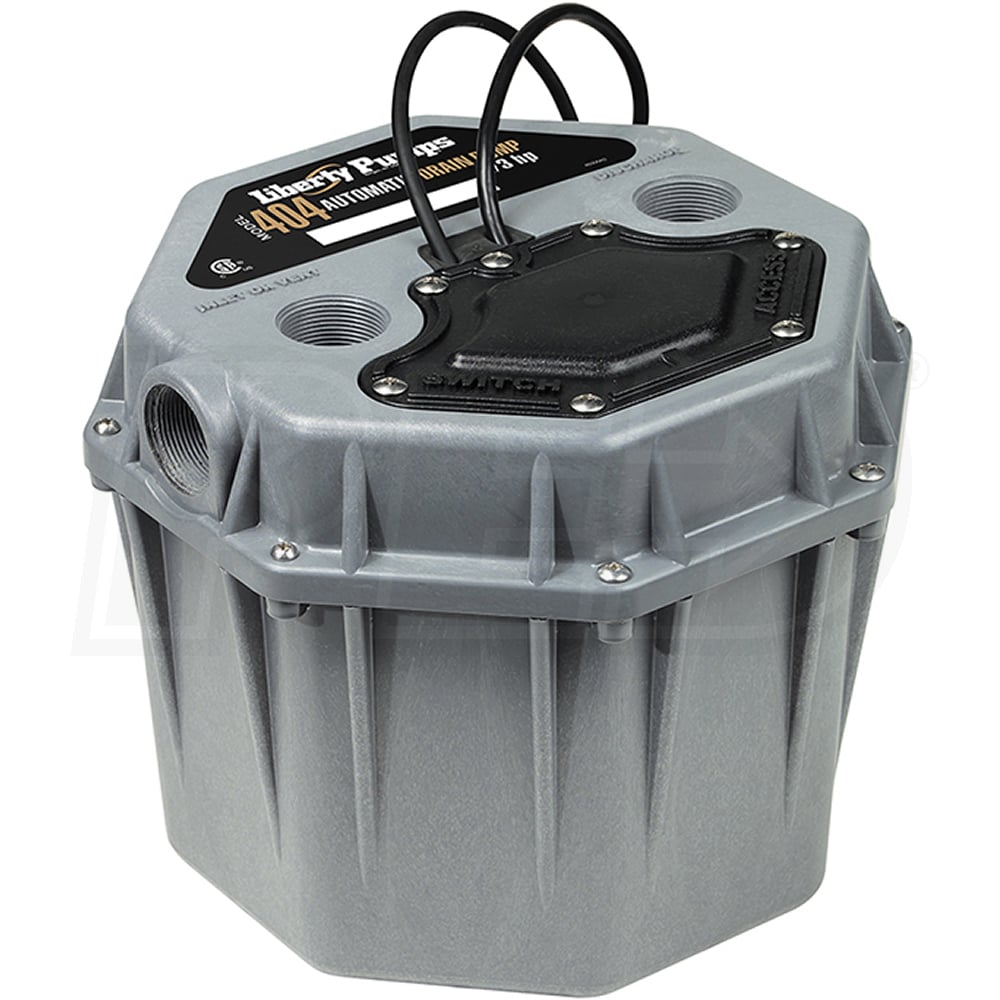

Liberty Pumps 404CV - 1/3 HP Compact Remote Sink/Drain Pump System (1-1/2") w/ Check Valve
Liberty Pumps 404CV - 1/3 HP Compact Remote Sink/Drain Pump System (1-1/2") w/ Check Valve
+
Share This Product
-
Product Description
-
4Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2040
Gallons
Switch Type
Style
Primary
GPH
2040 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Factory pre-assembled for easy installation
- Corrosion-Resistant Submersible Sump Pump
- A superior value for gray waste-water removal
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant, Compact Poly Basin (11.1" H x 13.75" W)
- Great for under sinks, wet bars and laundry/dehumidifiers
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 1-1/2" Inlet, Discharge and Vent
- Includes 1-1/2" Check Valve
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812142198
Style
GPH
2040
Gallons
Switch Type
Style
Primary
GPH
2040 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Factory pre-assembled for easy installation
- Corrosion-Resistant Submersible Sump Pump
- A superior value for gray waste-water removal
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant, Compact Poly Basin (11.1" H x 13.75" W)
- Great for under sinks, wet bars and laundry/dehumidifiers
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 1-1/2" Inlet, Discharge and Vent
- Includes 1-1/2" Check Valve
- 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812142198
Product Specs
+−
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812142198
