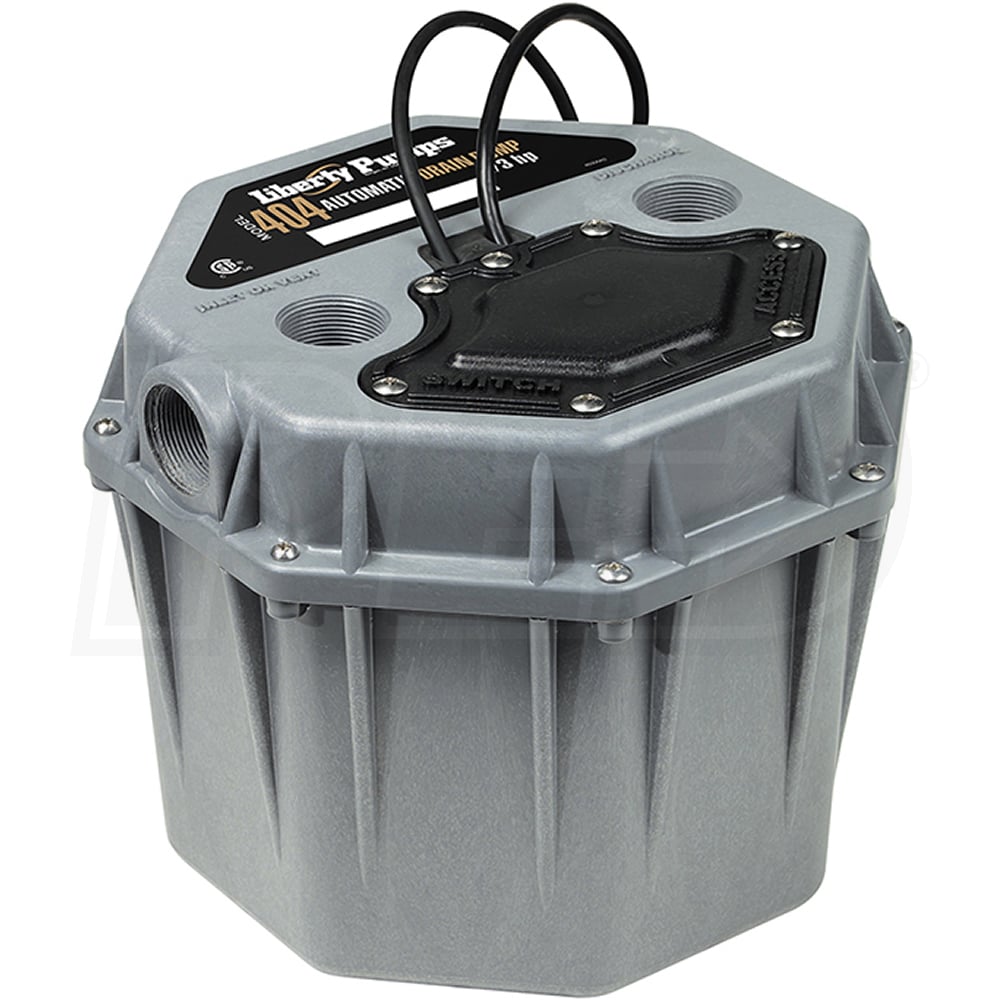

Liberty Pumps 404L - 1/3 HP Compact Remote Sink/Drain Pump System (2")
Liberty Pumps 404L - 1/3 HP Compact Remote Sink/Drain Pump System (2")
+
Share This Product
-
Product Description
-
1Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2040
Gallons
Switch Type
Style
Primary
GPH
2040 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Factory pre-assembled for easy installation
- Corrosion-Resistant Submersible Sump Pump
- A superior value for gray waste-water removal
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant, Compact Poly Basin (11.1" H x 13.75" W)
- Great for under sinks, wet bars and laundry/dehumidifiers
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 2" Inlet, Discharge and Vent
- Requires 2" Check Valve (Sold Separately)
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
2 Inch
Built-in check Valve
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812114249
Style
GPH
2040
Gallons
Switch Type
Style
Primary
GPH
2040 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Remote Drain Pump & Laundry Tray System
- Factory pre-assembled for easy installation
- Corrosion-Resistant Submersible Sump Pump
- A superior value for gray waste-water removal
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling up to 3/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Permanently lubricated upper/lower bearings for extended life
- Corrosion-Resistant, Compact Poly Basin (11.1" H x 13.75" W)
- Great for under sinks, wet bars and laundry/dehumidifiers
- QuickTree® Technology & Quick-Disconnect 10' Power Cord
- Separate access cover for easy switch inspection/removal
- Allows for easy replacement of cord without breaking motor seals
- Integrally Molded-In Connections & Rubber Gaskets
- Provides a superior, gas-tight seal
- 2" Inlet, Discharge and Vent
- Requires 2" Check Valve (Sold Separately)
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
2 Inch
Built-in check Valve
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812114249
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2040
GPH @ 5 feet
1740
GPH @ 10 feet
1440
GPH @ 15 feet
900
GPH @ 20 feet
180
Discharge Port Size
2 Inch
Built-in check Valve
No
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
3 Years
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
11.125 Inches
UPC
671812114249
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
For a sink sump pump installation is their a studor vent or air admittance valve that can vent a sump pump?
Scott D
from Florida
January 21, 2014
Answer
Thank you for your interest in Sump Pumps Direct.
Per the installation instructions for the Liberty 404 Sink/Drain Pump System:
Provision is made for a vent stack to allow extra volume for high suds conditions, and to ensure proper drainage of the fixture. HAND-TIGHTEN ONLY. DO NOT CAP-OFF VENT. DO NOT use ONE-WAY QUICK-VENTS or AIR ADMITTENCE VALVES as they will not guarantee proper fixture performance. The vent pipe should have a union to facilitate removal if required and shall be connected directly to a building or house vent.
This is pretty standard for all of these systems.
Per the installation instructions for the Liberty 404 Sink/Drain Pump System:
Provision is made for a vent stack to allow extra volume for high suds conditions, and to ensure proper drainage of the fixture. HAND-TIGHTEN ONLY. DO NOT CAP-OFF VENT. DO NOT use ONE-WAY QUICK-VENTS or AIR ADMITTENCE VALVES as they will not guarantee proper fixture performance. The vent pipe should have a union to facilitate removal if required and shall be connected directly to a building or house vent.
This is pretty standard for all of these systems.
Was this answer helpful?
Yes
0
No
0
+−
Liberty model 404L Can I plumb the washer directly into pump? What is the capacity of the
enclosure?(Gal)
Jeff B
from Kansas
December 05, 2013
Answer
The Liberty model 404L, like all the other sink/drain systems, are designed to be connected directly to your washer or whatever else you want to drain water from. The tank will hold 4.3 gallons but the pump will handle 1440GPH at a 10 foot head. Just be sure to install the vent pipe per the instructions so that it handles any suds overflow without any problems.
Was this answer helpful?
Yes
1
No
0
