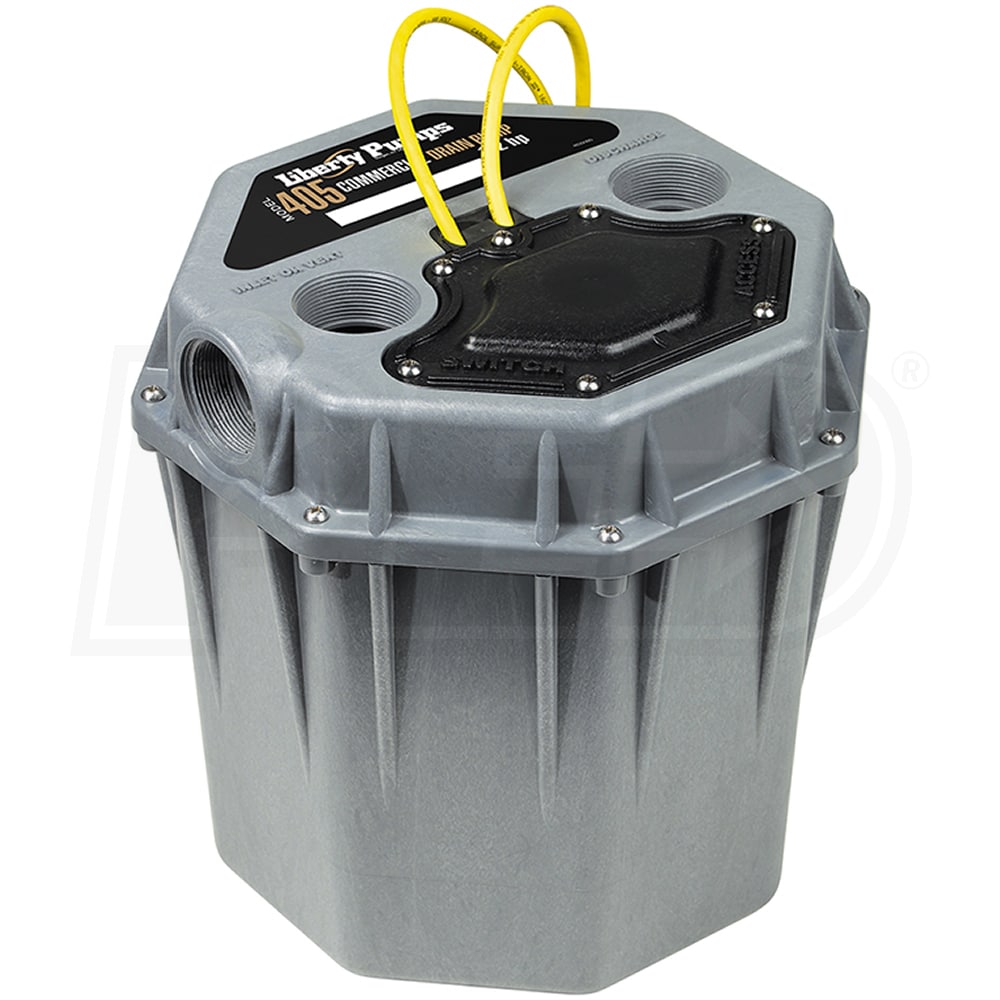

Liberty Pumps 405 - 1/2 HP High-Temperature Commercial Sink/Drain Pump System (2")

Liberty Pumps 405 - 1/2 HP High-Temperature Commercial Sink/Drain Pump System (2")
Model: 405
$327.60
In-Stock
Ships Thursday, Jan 18th
Free Shipping &
Tax-Free (Except IL)
In-Stock
Ships Thursday, Jan 18th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
  • Product Description
  • 7
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Piggy-Back Tether Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Commercial High-Temperature Remote Drain Pump System
  • Factory pre-assembled for easy installation
  • High-Temperature Aluminum Sump Pump
  • Designed for high temperature applications (180° F. Max)
  • Rugged & Thermally Protected 1/2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling up to 3/8"
  • Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
  • Permanently lubricated upper/lower bearings for extended life
  • Corrosion-Resistant Polyolefin Basin (14.125" H x 13.75" W)
  • Great for bar sinks, dishwashers and commercial sinks
  • QuickTree® Technology & Quick-Disconnect 10' Power Cord
  • Separate access cover for easy switch inspection/removal
  • Allows for easy replacement of cord without breaking motor seals
  • Integrally Molded-In Connections & Rubber Gaskets
  • Provides a superior, gas-tight seal
  • 2" Inlet, Discharge and Vent
  • Requires 2" Check Valve (Sold Separately)
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
7.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
16
Engine
Horsepower
.5 hp
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 10 feet
2600
GPH @ 15 feet
2220
GPH @ 20 feet
1920
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Made in USA
Yes
Weight
23 Pounds
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
14.125 Inches
Consumer Warranty
3 Years
UPC
671812113877
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Piggy-Back Tether Float Switch


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Commercial High-Temperature Remote Drain Pump System
  • Factory pre-assembled for easy installation
  • High-Temperature Aluminum Sump Pump
  • Designed for high temperature applications (180° F. Max)
  • Rugged & Thermally Protected 1/2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling up to 3/8"
  • Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
  • Permanently lubricated upper/lower bearings for extended life
  • Corrosion-Resistant Polyolefin Basin (14.125" H x 13.75" W)
  • Great for bar sinks, dishwashers and commercial sinks
  • QuickTree® Technology & Quick-Disconnect 10' Power Cord
  • Separate access cover for easy switch inspection/removal
  • Allows for easy replacement of cord without breaking motor seals
  • Integrally Molded-In Connections & Rubber Gaskets
  • Provides a superior, gas-tight seal
  • 2" Inlet, Discharge and Vent
  • Requires 2" Check Valve (Sold Separately)
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
7.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
16
Engine
Horsepower
.5 hp
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 10 feet
2600
GPH @ 15 feet
2220
GPH @ 20 feet
1920
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Made in USA
Yes
Weight
23 Pounds
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
14.125 Inches
Consumer Warranty
3 Years
UPC
671812113877
Product Specs
+
Specifications
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
7.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
16
Engine
Horsepower
.5 hp
Pump
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3180
GPH @ 10 feet
2600
GPH @ 15 feet
2220
GPH @ 20 feet
1920
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Made in USA
Yes
Weight
23 Pounds
Product Length
13.75 Inches
Product Width
13.75 Inches
Product Height
14.125 Inches
Consumer Warranty
3 Years
UPC
671812113877
Reviews
(7)
+
Liberty Pumps 405 Reviews & Ratings
Product Q&A
(3)
+
Will this unit be able to pump water into the ceiling space of a suspended ceiling?
Rick
from Wyoming
February 08, 2014
Read Response +
Answer
The Liberty High Temp Commercial Sink/Drain Pump System, model 405 will handle a max head of 33 feet @ up to 77 degree(F) water and 25 feet @ up to 180 degree(F) water, when installed per the manufacturer's specifications and instructions.
Hide Response -
For a sink sump pump installation is their a studor vent or air admittance valve that can vent a sump pump?
Scott D
from Florida
January 21, 2014
Read Response +
Answer
Thank you for your interest in Sump Pumps Direct.
Per the installation instructions for the Liberty 404 Sink/Drain Pump System:

Provision is made for a vent stack to allow extra volume for high suds conditions, and to ensure proper drainage of the fixture. HAND-TIGHTEN ONLY. DO NOT CAP-OFF VENT. DO NOT use ONE-WAY QUICK-VENTS or AIR ADMITTENCE VALVES as they will not guarantee proper fixture performance. The vent pipe should have a union to facilitate removal if required and shall be connected directly to a building or house vent.

This is pretty standard for all of these systems.
Hide Response -
For the Liberty 405 model pump system, I see the unit has a " provision " for a stack vent. Is it absolutely necessary to have a vent on this type of pump system? I am using the system to lift kitchen sink drain water to my house drain system approx 3 ft. Thanks.
Scott Sterkel
from Washington
August 30, 2012
Read Response +
Answer
The Liberty 405 is specifically designed to be used for a remote sink drain or a laundry application as long as the water temperature does not exceed 180 degrees Fahrenheit.

Per the product manual:
Provision is made for a vent stack to allow extra volume for high suds conditions, and to ensure proper drainage of the
fixture. HAND-TIGHTEN ONLY. DO NOT CAP-OFF VENT. DO NOT use ONE-WAY QUICK-VENTS or AIR ADMITTENCE
VALVES as they will not guarantee proper fixture performance. The vent pipe should have a union to facilitate removal if required
and shall be connected directly to a building or house vent.

You can also check out the complete manual HERE if you would like more information.
Hide Response -
