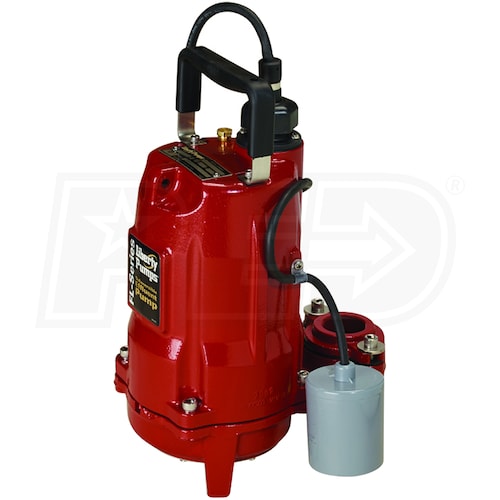

Liberty Pumps FL51A-2 - 1/2 HP Cast Iron Effluent Pump w/ Piggyback Tether Float (25' Cord)

Liberty Pumps FL51A-2 - 1/2 HP Cast Iron Effluent Pump w/ Piggyback Tether Float (25' Cord)
Model: FL51A-2
$597.80
Backordered
Estimated Availability July 27, 2018
Notify Me When In-Stock
Free Shipping &
Tax-Free (Except IL)
Backordered
Estimated Availability July 27, 2018
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
5520
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
5520 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Cast Iron Effluent Pump
  • Designed for septic systems that require less than 55' head
  • Quick-Disconnect 25' Standard Power Cord
  • Great for applications when an outlet is farther away
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 1/2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • Semi-Open Cast Iron Impeller
  • Minimizes clogging and passes spherical solids up to 3/4"
  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
  • Will replace most pumps without any plumbing changes
  • 416 Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
41
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Accessories
Float Switch
Yes
Overview
Weight
64 Pounds
Product Length
11.2 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812102963
Style
Effluent Sumps Pumps
GPH
5520
Gallons
Switch Type
Piggy-Back Tether Float Switch
Style
Effluent
GPH
5520 Gallons
Switch Type
Piggy-Back Tether


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Automatic Submersible Cast Iron Effluent Pump
  • Designed for septic systems that require less than 55' head
  • Quick-Disconnect 25' Standard Power Cord
  • Great for applications when an outlet is farther away
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 1/2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • Semi-Open Cast Iron Impeller
  • Minimizes clogging and passes spherical solids up to 3/4"
  • High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
  • Will replace most pumps without any plumbing changes
  • 416 Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
41
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Accessories
Float Switch
Yes
Overview
Weight
64 Pounds
Product Length
11.2 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812102963
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
41
Engine
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Accessories
Float Switch
Yes
Overview
Weight
64 Pounds
Product Length
11.2 Inches
Product Height
16.4 Inches
Consumer Warranty
3 Years
UPC
671812102963
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
Does the pump and float both have a 25 feet cord?
Cal W
from Minnesota
May 31, 2014
Answer
Yes, both the pump power cord and the tether float switch, are 25 feet long.
+
Which battery backup would you recommend for a liberty 1/2 hp sewage ejector pump?
Mark S
from Utah
December 19, 2012
Answer
Thank you for visiting Sump Pumps Direct. In answer to your question, there are no battery backup systems available for sewage applications. Your only option would be to install a smaller STANDBY GENERATOR in the 7kW to 10kW range, depending on the wattage requirements of your pump and any additional circuits you may want to back up like sump pump, refrigerator, heat. lights, etc..
