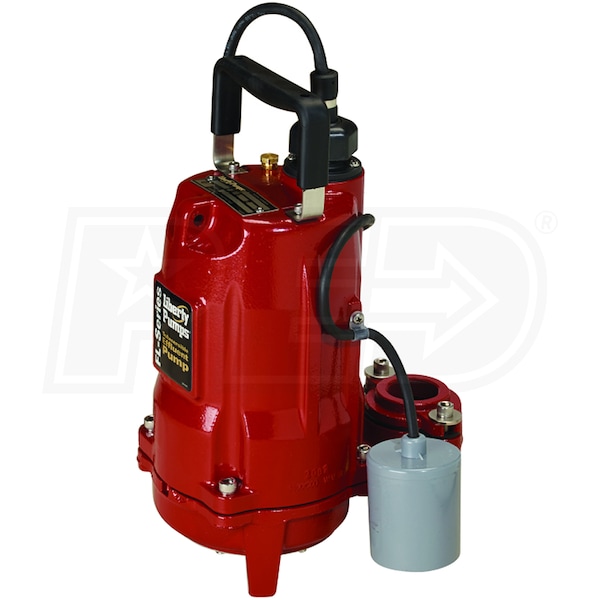

Liberty Pumps FL51A - 1/2 HP Cast Iron Effluent Pump w/ Piggyback Tether Float
Model: FL51A
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
5520
Gallons
Switch Type
Style
Effluent
GPH
5520 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Effluent Pump
- Designed for septic systems that require less than 55' head
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- Semi-Open Cast Iron Impeller
- Minimizes clogging and passes spherical solids up to 3/4"
- High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
41
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
55 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
Yes
Overview
Weight
62 Pounds
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812102956
Style
GPH
5520
Gallons
Switch Type
Style
Effluent
GPH
5520 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Automatic Submersible Cast Iron Effluent Pump
- Designed for septic systems that require less than 55' head
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- Semi-Open Cast Iron Impeller
- Minimizes clogging and passes spherical solids up to 3/4"
- High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Power Cord
- Allows for easy replacement of cord without breaking motor seals
- 416 Stainless Steel Rotor Shaft w/ Unitized Carbon/Ceramic Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
41
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
55 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
Yes
Overview
Weight
62 Pounds
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812102956
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
41
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
55 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Accessories
Float Switch
Yes
Overview
Weight
62 Pounds
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812102956
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
What does min. sump basin size mean?
John D
from Massachusetts
February 02, 2013
Answer
The minimum sump basin size relates to the minimum size of your sump basin or pit, that a specific pump will safely operate in. Any pump needs a certain amount of space due to "on/off" levels, cooling factors and cycling that the pump is designed for. Most pumps will require a standard size basin of 18" wide by 24" deep but some will also operate in smaller basins. You want to pay very close attention to these requirements as they will insure a longer pump life.
